Kronos Robotics
Dewalt DW618 Super-PID Conversion
Step 3
Remove the controller, switch, and cord connector from the router. These will all lift out. There is a
black wire connected to one of the brush mounts. There is a red wire connected to the other. Pull the
connectors off of each mount. Every thing should lift out.

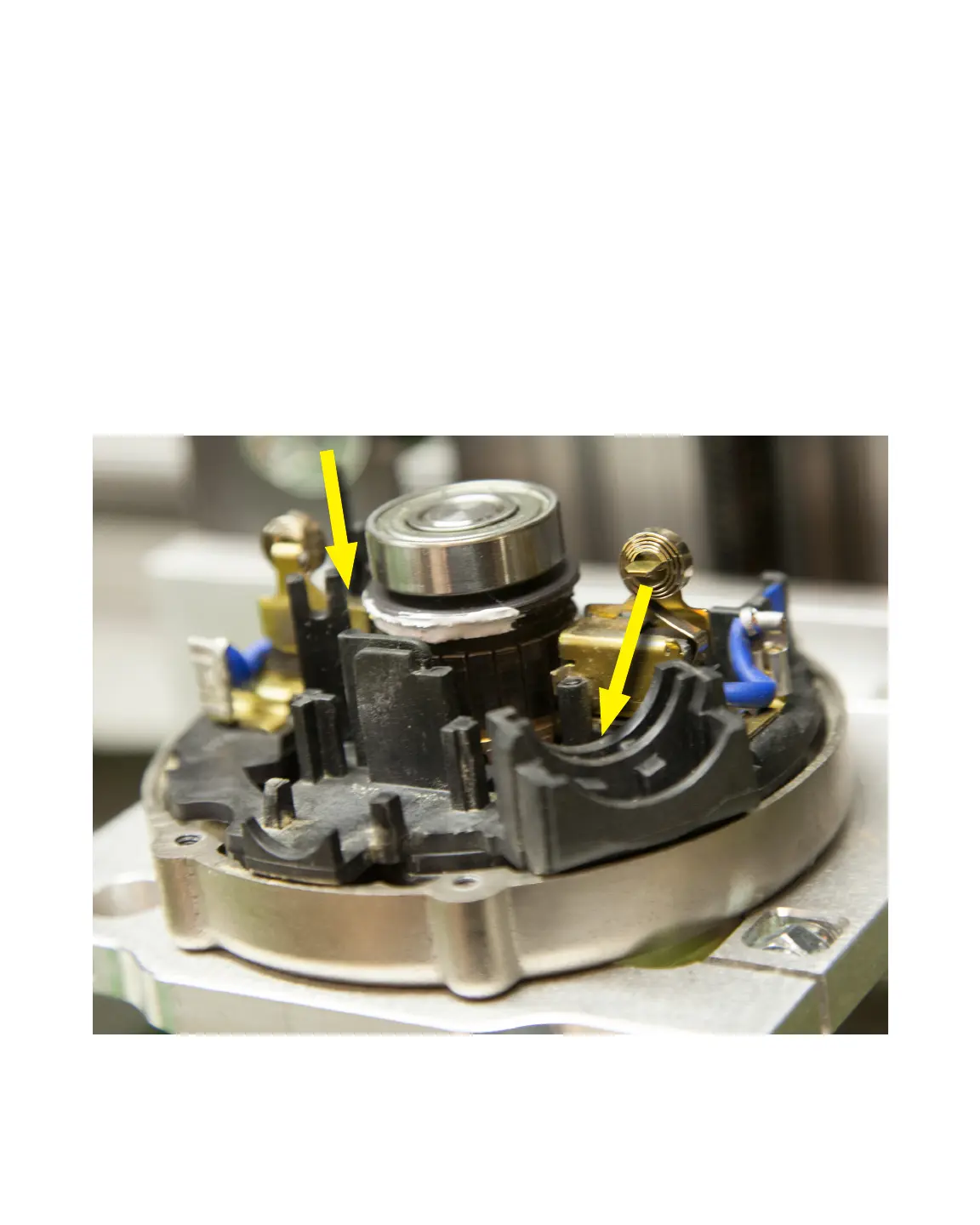

With a small paint brush, paint the ring just under the bearing. Paint half way around the ring, as
shown in Figure 4.
Figure 4
