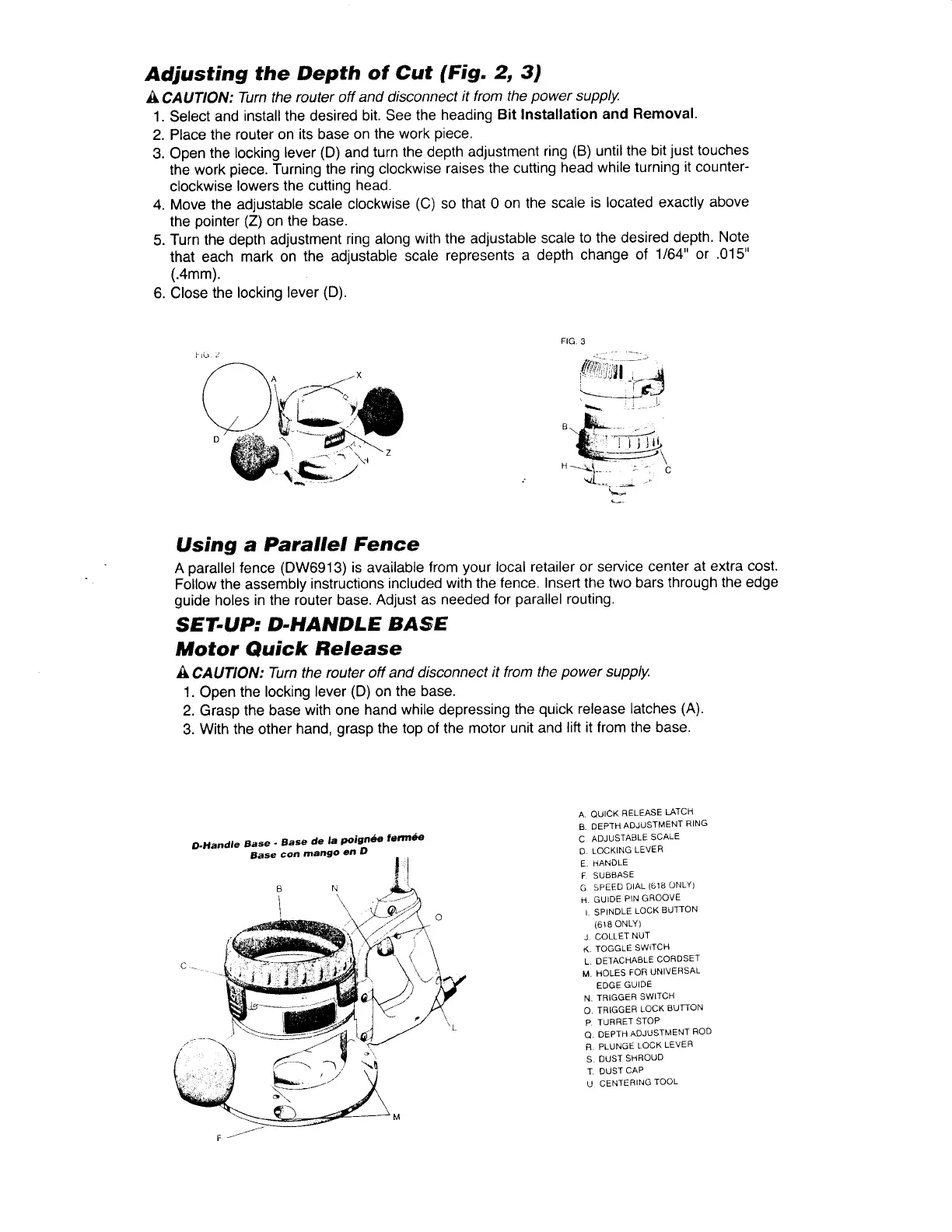

DeWalt DW618D User Manual

Adiusting
the
Depth
ol Cut
(Fig.
2, 3)
LCAUTION:
Turn the
router off and
disconnect
it from the
power
supply.
1. Select
and
install the desired
bit. See
the
heading Bit
lnstallation
and
Removal.
2. Place
the router
on its base
on the
work
piece.
3. Open
the locking
lever
(D)
and
turn the depth
adjustment
ring
(B)
until
the bit
just
touches
the
work
piece.
Turning
the ring clockwise
raises
the cutting
head
while turning
it
counter-
clockwise
lowers
the cutting
head.
4. Move the adjustable
scale
clockwise
(C)
so
that 0 on
the scale
is located exactly
above
the
pointer (Z)
on the base.
5.
Turn the depth
adjustment
ring along
with
the adjustable
scale
to the desired
depth.
Note
that each
mark on
the adjustable
scale
represents
a depth
change
of
1164" or.015"
(.4mm).
6. Close
the locking
lever
(D).
FIG.
3
Using a
Parallel
Fence
A
parallel
fence
(DW6913)
is available
from
your
local
retailer or service
center at
extra cost.
Follow the assembly
instructions
included
with the
fence. Insert the
two bars through
the edge
guide
holes
in the router base.
Adjust as
needed
for
parallel
routing.
SET-UPI
D-HANDLE
BASE
Motor
Quick
Befease
LCAUTION:
Turn the router off and
disconnect
it from the
power
supply.
1. Open
the locking
lever
(D)
on
the base.
2.
Grasp
the base
with one
hand
while
depressing
the
quick
release
latches
(A).
3.
With the other
hand,
grasp
the top of
the motor unit
and
lift it from the base.
D-llandle
Base
'
Base
de
ta
Poign6e
l€tmee
Base
con
mango
en
A. OUICK
RELEASE
LATCH
B.
DEPTH
ADJUSTMENT
RING
C
ADJUSTABLE
SCALE
D.
LOCKING
LEVER
E.
HANDLE
F SUBBASE
G
SPEED
DIAL
(618 ONLY]
H. GUIDE
PIN
GROOVE
I, SPINDLE
LOCK
BUTTON
(618
ONLY)
J.
COLLET
NUT
K.
TOGGLE
SWITCH
L.
OETACHABLE
CORDSET
M.
HOLES
FOR
UNIVEBSAL
EDGE
GUIDE
N.
TRIGGER
SWITCH
O,
TRIGGEB
LOCK
BUTTON
P.
TURRET
STOP
Q,
DEPTH
ADJUSTMENT
ROD
R.
PLUNGE
LOCK
LEVER
S.
DUST
SHROUD
T'
DUST
CAP
U
CENTERING
TOOL
,
,/
