Specifi cations
Input .................... 120 V AC , 15 Amp
No load speed .....10,000 RPM
Feed speed ..........14 ft. (4.3 m) per minute
.............................or 26 ft. (7,9m) per minute
Planing height ...... Maximum 6" (152 mm), Minimum 1/8" (3mm)
Planing width ....... Maximum 13" (325mm)
Planing depth ...... Maximum 1/8" (3mm)
(for boards 6" (152mm) wide or less)
Electrical Connection
Be sure your power supply agrees with the nameplate marking. Volts,
50/60 Hz or “AC only” means your planer must be operated only with
alternating current and never with direct current. Voltage decrease of
more than 10% will cause loss of power and overheating. All D
EWALT
tools are factory tested, if this tool does not operate, check the power
supply.

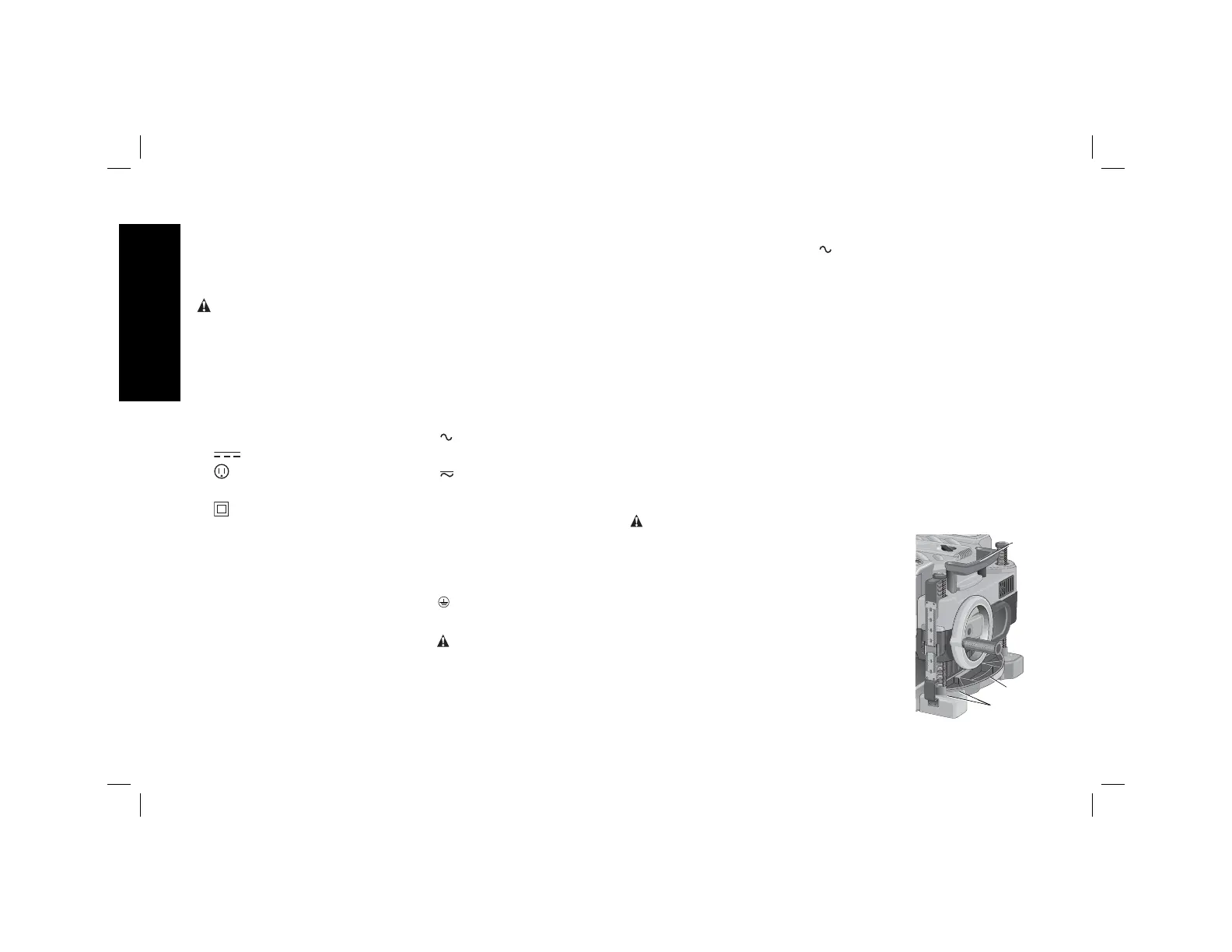

Transporting the Planer (Fig. 1)
WARNING: For your own safety, it is
D
A
B
FIG. 1
recommended that two people carry this
machine or serious injury could result.
When moving your planer, carry it either by the
side carrying handles (A) or by the handles at
the base of the planer (B).
Bench Mounting (Fig. 1)
To facilitate bench mounting, two different
sized holes (D) are provided on the four
corners of your planer. If mounting the planer
with bolts, use the larger holes. If mounting
the planer with nails or screws, use the smaller
holes. It is not necessary to use both sets of
holes.
• Avoid prolonged contact with dust from power sanding,
sawing, grinding, drilling, and other construction activities.
Wear protective clothing and wash exposed areas with
soap and water. Allowing dust to get into your mouth, eyes, or
lay on the skin may promote absorption of harmful chemicals.
WARNING: A dust mask or respirator should be worn by all
persons entering the work area. The filter should be replaced daily or
whenever the wearer has difficulty breathing. See your local hardware
store for the proper NIOSH/OSHA approved dust mask.
• The label on your tool may include the following symbols. The
symbols and their definitions are as follows:
V .....................volts A .......................amperes
Hz ...................hertz W ......................watts
min .................minutes
or AC ...........alternating
or DC .....direct current current
...................Class I Construction or AC/DC ....alternating
(grounded) ..........................or direct
................... Class II Construction current
(double insulated)
n
o ......................no load
…/min ............per minute speed
BPM ...............beats per minute
n ........................rated
IPM .................impacts per minute
..........................speed
RPM ...............revolutions per
......................earthing
minute terminal
sfpm ...............surface feet
......................safety alert
.......................per minute symbol
SPM ...............strokes per minute
