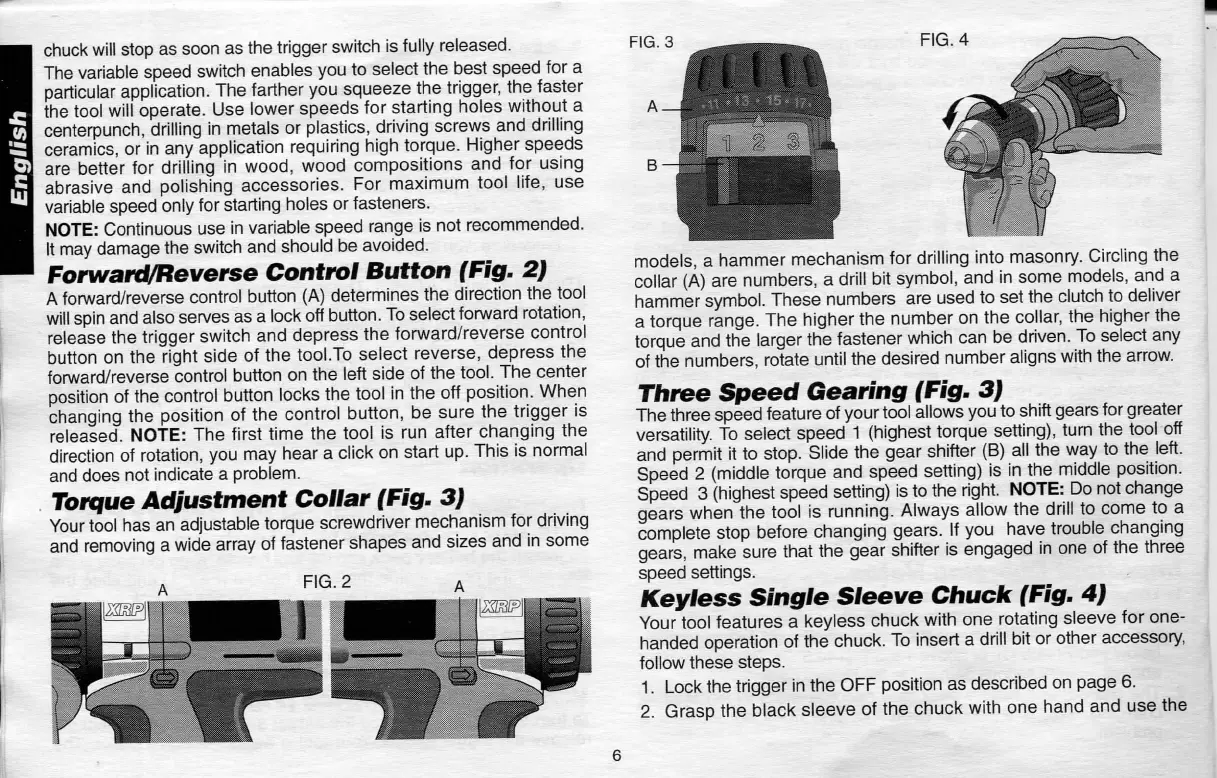

DeWalt DW983 - Tool Controls and Chuck Usage; Forward;Reverse Control and Lock-Off; Torque Adjustment Collar; Three Speed Gearing Selection

chuck
will
stop
as
soon
as
the
trigger
switch
is
fully
released.
The
variable
speed
switch
enables
you
to
select
the
best
speed
fora
particular
application.
The
farther
you
squeeze
the
trigger,
the
faster
the
tool
will
operate.
Use
lower
speeds
for
starting
holes
without
a
centerpunch,
drilling
in
metals
or
plastics,
driving
screws
and
drilling
ceramics,
or
in
any
application
requiring
high
torque.
Higher
speeds
are
better
for
drilling
in
wood,
wood
compositions
and
for
using
abrasive
and
polishing
accessories.
For
maximum
tool
life,
use
variable
speed
only
for
starting
holes
or
fasteners.
NOTE:
Continuous
use
in
variable
speed
range
is
not
recommended.
It
may
damage
the
switch
and
should
be
avoided.
Forward/Reverse
Control
Button
(Fig.
2)
A
forward/reverse
control
button
(A)
determines
the
direction
the
tool
will
spin
and
also
serves
as
a
lock
off
button.
To
select
forward
rotation,
release
the
trigger
switch
and
depress
the
forward/reverse
control
button
on
the
right
side
of
the
tool.To
select
reverse,
depress
the
forward/reverse
control
button
on
the
left
side
of
the
tool.
The
center
position
of
the
control
button
locks
the
tool
in
the
off
position.
When
changing
the
position
of
the
control
button,
be
sure
the
trigger
is
released.
NOTE:
The
first
time
the
tool
is
run
after
changing
the
direction
of
rotation,
you
may
hear
a
click
on
start
up.
This
is
normal
and
does
not
indicate
a
problem.
Torque
Adjustment
Collar
(Fig.
3)
Your
tool
has
an
adjustable
torque
screwdriver
mechanism
for
driving
and
removing
a
wide
array
of
fastener
shapes
and
sizes
and
in
some
FIG. 2 Z
FIG. 3
models,
a
hammer
mechanism
for
drilling
into
masonry.
Circling
the
collar
(A)
are
numbers,
a
drill
bit
symbol,
and
in
some
models,
and
a
hammer
symbol.
These
numbers
are
used
to
set
the
clutch
to
deliver
a
torque
range.
The
higher
the
number
on
the
collar,
the
higher
the
torque
and
the
larger
the
fastener
which
can
be
driven.
To
select
any
of
the
numbers,
rotate
until
the
desired
number
aligns
with
the
arrow.
Three
Speed
Gearing
(Fig.
3)
The
three
speed
feature
of
your
tool
allows
you
to
shift
gears
for
greater
versatility.
To
select
speed
1
(highest
torque
setting),
turn
the
tool
off
and
permit
it
to
stop.
Slide
the
gear
shifter
(B)
all
the
way
to
the
left.
Speed
2
(middle
torque
and
speed
setting)
is
in
the
middle
position.
Speed
3
(highest
speed
setting)
is
to
the
right.
NOTE:
Do
not
change
gears
when
the
tool
is
running.
Always
allow
the
drill
to
come
to
a
complete
stop
before
changing
gears.
If
you
have
trouble
changing
gears,
make
sure
that
the
gear
shifter
is
engaged
in
one
of
the
three
speed
settings.
Keyless
Single
Sleeve
Chuck
(Fig.
4)
Your
tool
features
a
keyless
chuck
with
one
rotating
sleeve
for
one-
handed
operation
of
the
chuck.
To
insert
a
drill
bit
or
other
accessory,
follow
these
steps.
1.
Lock
the
trigger
in
the OFF
position
as
described
on
page
6.
2.
Grasp
the
black
sleeve
of
the
chuck
with
one
hand
and
use
