6
English

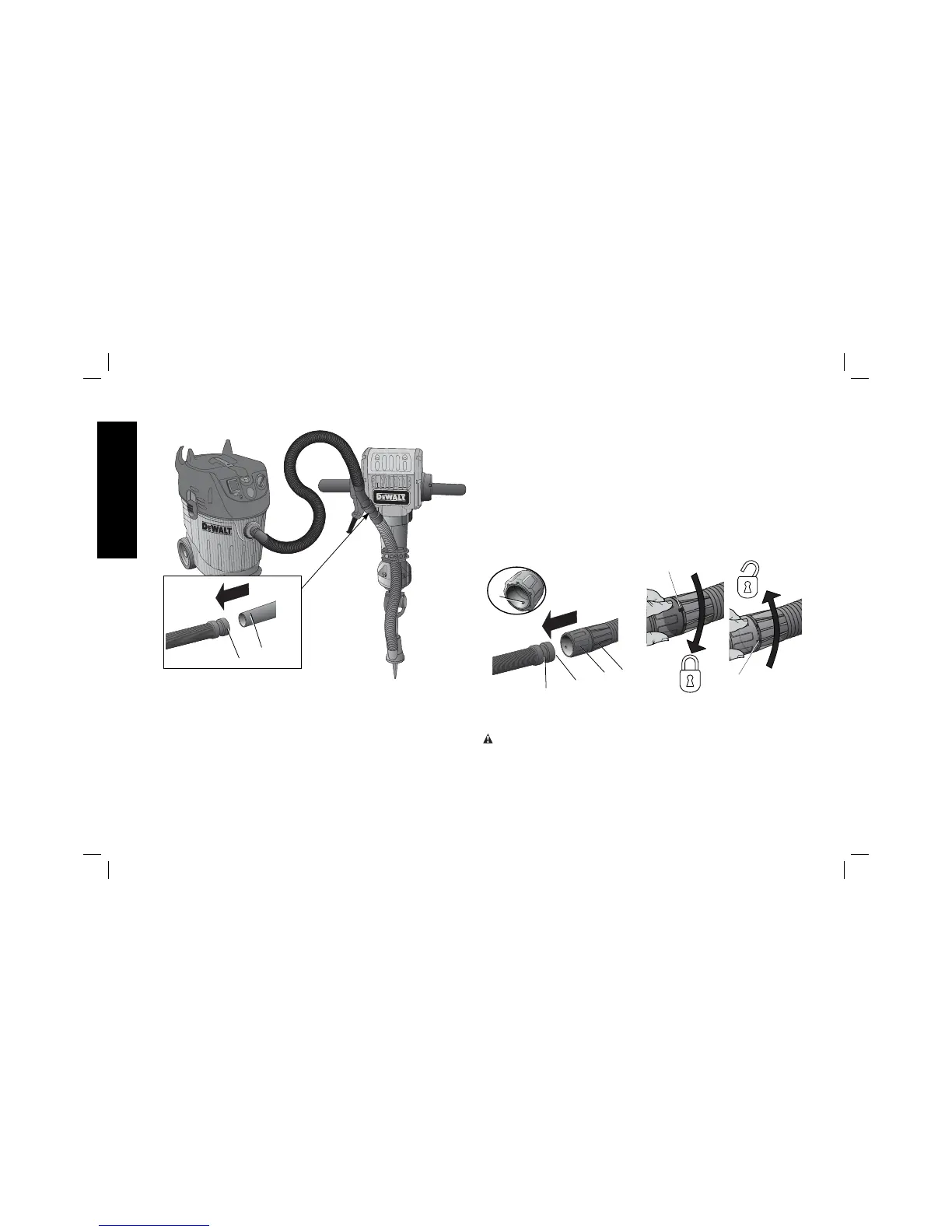

FIG. 6
I
E
Push dust extractor vacuum hose nozzle (I) into connection point
(E) until tight. For a more secure connection use the AirLock
connection system.
NOTE: Ensure hose connection is secure.
AIRLOCK CONNECTOR SYSTEM - DWV9000 (SOLD
SEPARATELY)
AirLock allows for a fast and secure connection between the dust
extraction system and the dust extractor vacuum.
1. Ensure the collar (J) on the AirLock connector (K) is in the unlock
position. Align notches (N) on collar and AirLock connector as
shown for unlock and lock positions.
2. Push the AirLock connector (K) onto the connection point (E) of
the dust extraction system.
3. Rotate the collar (J) to the locked position. NOTE: The ball
bearings (M) inside collar will lock into slot (L) and secure the
connection.
The dust extraction system is now securely connected to the dust
extractor vacuum.
FIG. 7
E
J
K
M
L
N
N
OPERATION
WARNING: ALWAYS turn off tool and disconnect the tool
from the power source before making any adjustments or
removing or installing attachments or accessories. This applies
to both the demolition tool and the dust extractor vacuum.
Such preventative safety measures reduce the risk of starting the
tool accidentally.
