DeWalt DWMT70784 - Operating and Shut-Down Procedures; Cutting Wheel Assembly Continued; Operating Procedures: Start-Up; Shut-Down Procedures

14
English

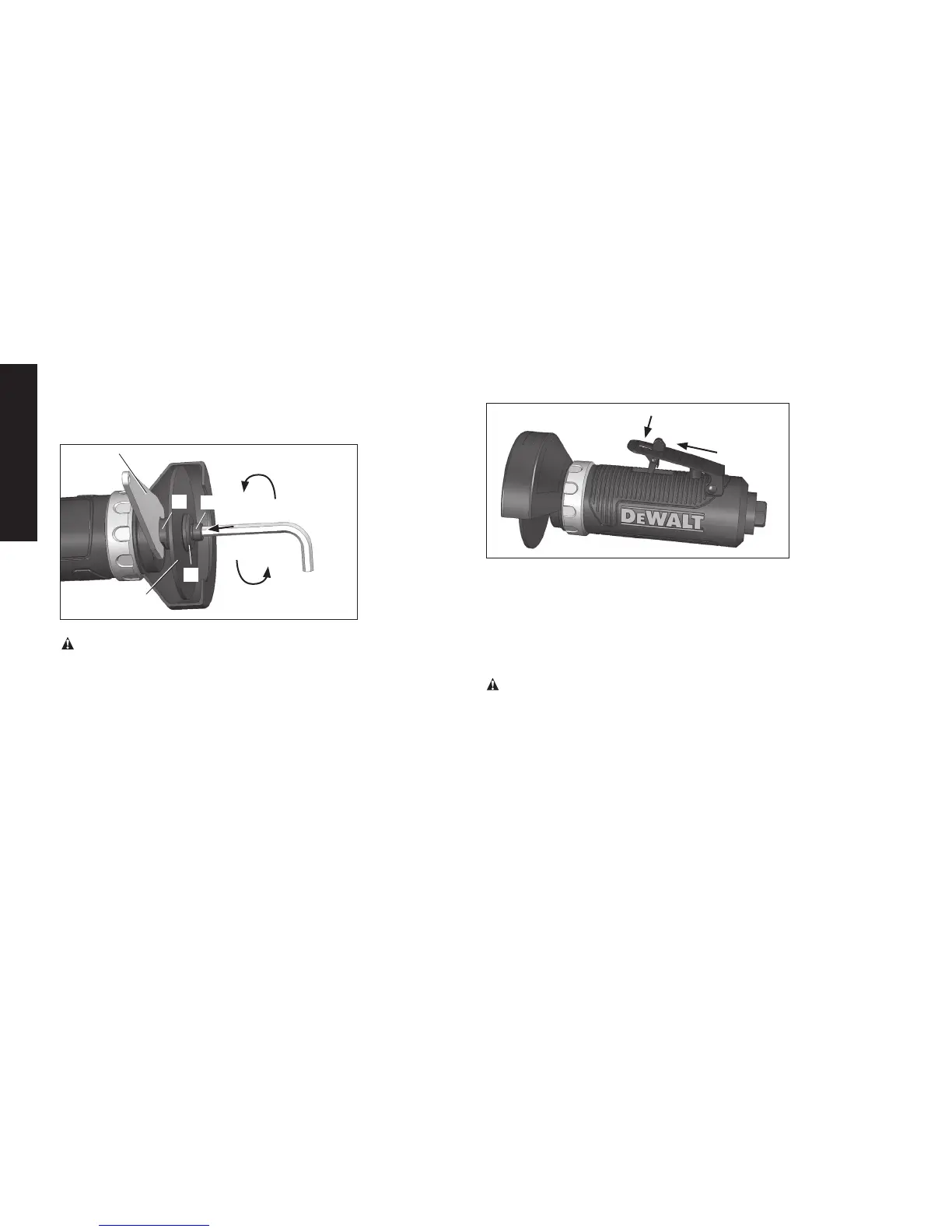

Cutting Wheel Assembly Continued
•Positionacutting wheel (D) onto the tool.
•Holdingthespindle (F) with the supplied wrench (L), replace
the washer (C) and hex head screw (B) until tightened.
WARNING: Make sure cutting wheels are securely fastened.
Loosecuttingwheelscouldcomeoffthetoolwhenoperatingand
cause serious injury.
OPERATING PROCEDURES
START-UP (FIG. 1, PG. 2)
•Connectthetooltoairsourcewiththehoseofrecommendedsize.
•Turnontheaircompressorandallowtheairtanktobefilled.
•Settheaircompressorregulatorto90PSI.Thisairtooloperates
at a maximum of 90 PSI air pressure.
•Whilepushingthesafety lever forward (1), depress
the trigger(2) to start operating the tool.
NOTE: The spindle revolves at full speed when the trigger is
fully depressed. As thumb is raised the self releasing
trigger closes, slowing down the spindle and allowing the
operator to choose the best speed and power for the job.
When the trigger is completely released it cannot be
depressed again until the safety release is disengaged.
CAUTION: DO NOT place any portion of the body in line with
the cutting wheel while it is rotating.
SHUT-DOWN (FIG. 1, PG. 2)
•Releasethetriggerinordertostopthetool.
•Whenjobiscompleted,turnofftheaircompressorandstore
the air tool after lubrication. For safety, put the tool
on a hanger or on a soft flat pad when not in use.
•Whenchangingcuttingattachments,alwaysdisconnectthe
air supply to avoid injury.
LOOSEN
FASTEN
1
2
B
C
F
L
D
