This document describes the Jewenwils Outdoor Digital Countdown Timer, model HODT12C, an instruction manual for a device designed to provide timed power control for outdoor applications.

Function Description

The Jewenwils Outdoor Digital Countdown Timer is a device that allows users to control power to connected appliances for specific durations, primarily for outdoor use. It features a light sensor that enables it to operate based on dusk and dawn cycles, as well as a manual override for immediate power control. The timer is designed to be mounted in a vertical position with the receptacles facing downward and at least 2ft above the ground level. It is not intended for immersion in water and should not be disassembled or repaired by unauthorized personnel.

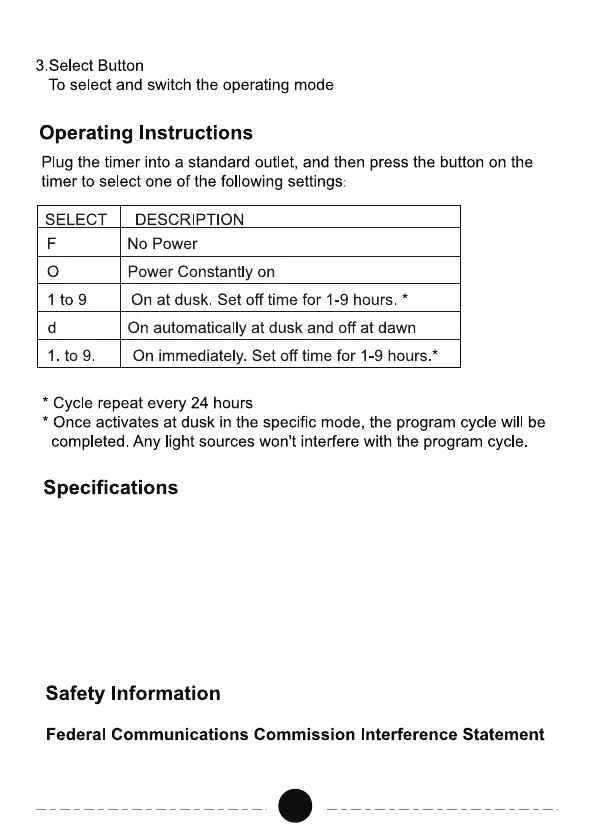

The primary function of the timer is to provide automated power control. Users can select from various operating modes:

No Power (F): The device is off.
Power Constantly On (O): The device provides continuous power.
On at dusk, Set off time for 1-9 hours (1 to 9): The device turns on at dusk and automatically turns off after a user-selected duration of 1 to 9 hours. This cycle repeats every 24 hours.
On automatically at dusk and off at dawn (d): The device turns on at dusk and remains on until dawn. This cycle repeats every 24 hours.
On immediately, Set off time for 1-9 hours (1. to 9.): The device turns on immediately and automatically turns off after a user-selected duration of 1 to 9 hours. This cycle repeats every 24 hours.

When operating in specific modes (on at dusk or on immediately), the program cycle will be completed even if light sources interfere with the program cycle. This indicates a degree of resilience to external light conditions once a cycle has begun.

Important Technical Specifications

Input Voltage: 125VAC, 60Hz
Cord: SJTW 14/3C
Max Power Rating:
- 15A Resistive
- 1000W Tungsten
- 500VA Electronic Ballast
- 120Vac 60Hz 8.3A Ballast
- 1/2HP

These specifications indicate that the timer is suitable for a wide range of electrical devices commonly used in outdoor settings, including lighting, pumps, and other appliances within the specified power limits. The 14/3C cord type suggests a robust construction suitable for outdoor use.

Usage Features

The device features a simple interface with a display and a select button.

Light Sensor: This sensor detects ambient light levels, enabling the "on at dusk" functionalities. It ensures the timer activates automatically when it gets dark.
Display: The display indicates the current operating mode, providing visual feedback to the user.
Select Button: This button is used to select and switch between the various operating modes.

To use the timer, plug it into a standard outdoor outlet, and then press the select button to choose one of the desired operating settings. The timer must be mounted in a vertical position with the receptacles facing downward and at least 2ft above the ground level when in outdoor use. This orientation helps protect the outlets from water ingress.

Safety Instructions:

Do not connect any devices which may exceed the maximum ratings of this timer.
Do not immerse in water.
Children are not allowed to use the timer without supervision.
Do not disassemble or repair the product, but only by authorized service personnel.
Always unplug and store indoors when not in use.

The device complies with Part 15 of the FCC Rules, indicating that it meets standards for electromagnetic interference. Operation is subject to the condition that the device does not cause harmful interference and must accept any interference received.

Maintenance Features

The manual emphasizes that the product should not be disassembled or repaired by unauthorized personnel. This suggests that any maintenance beyond basic cleaning or troubleshooting should be handled by qualified service providers.

The product comes with a One Year Limited Warranty. This warranty covers materials and workmanship from the purchase date. It does not cover damage caused by personal misuse or improper installation. Customers are advised to contact their Order ID and Name for service.

Federal Communications Commission Interference Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. The equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

The device is UL Listed, signifying that it has been tested by Underwriters Laboratories and meets their safety standards.

Dewenwils HODT12C - Page 3
