Installation
02
1. Turn off the main circuit.
2. Remove the metal cover by a
screwdriver (NOT Included),
and take out the mounting
brackets, screws and anchors
inside.(Figure 1)
3. Unscrew the top and bottom screws
on the back of the transformer, install
the mounting brackets and tighten the
screws again.
Note: Pay attention to the right direction
of the two mounting brackets when
installing. (Figure 2)
4.Use Screws and Anchors to fix the
transformer on the wall (at least 1ft
above the ground), making sure that
the Wiring Compartments are facing
down.(Figure 3)

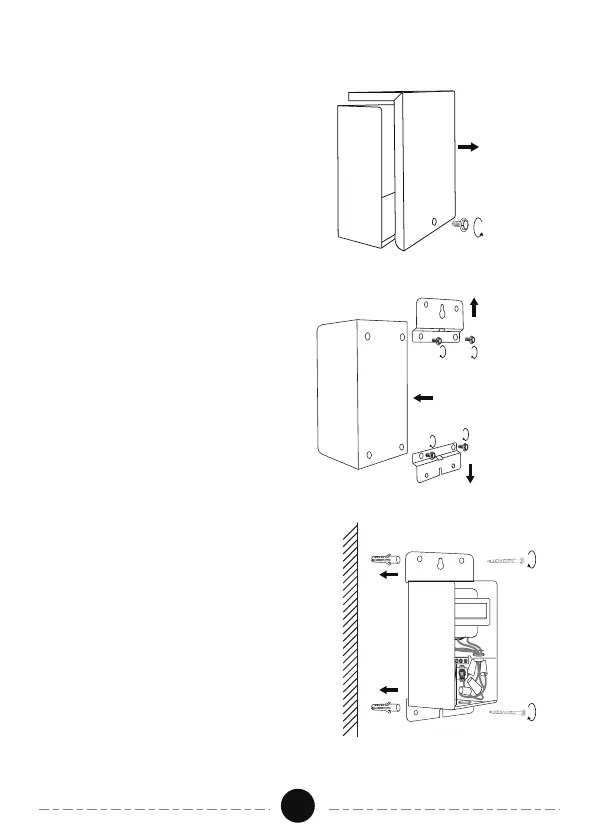

Figure 1
Upward
Downward
Figure 2
Figure 3
