DSI-5A-D9M

TECHNICAL REFERENCE MANUAL



4.2. Output connector pinout

DSUB 9 connector



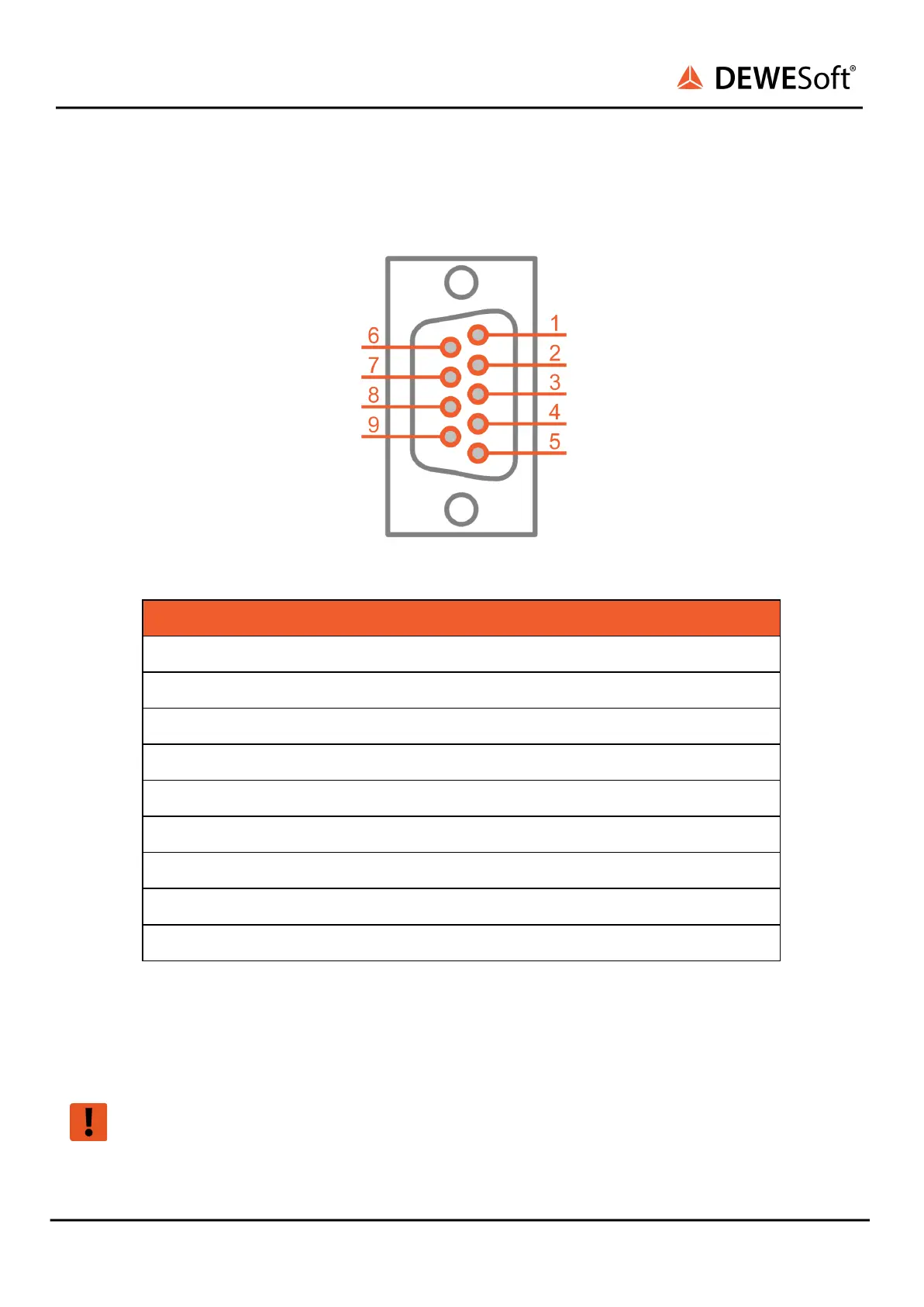

Illustration 3: 9 pin DSUB plug



5. Safety instructions

Your safety is our primary concern! Please be safe!



Warning

Use DSI-5A-D9M adapter only with SIRIUSi - Isolated version.



DSI-5A-D9M V20-1 6/17 

Pin

Name

I/O

Description

1

OE+

I, Power

Output enable +

2

Out+

O, Signal

Signal Output +

3

OEsns-

I, Power

Output enable -

4

AGND

I

Analog Ground

5

Reser.

I/O

Reserved / Not Connected

6

OEsns+

I, Signal

Output enable +

7

Out-

O, Signal

Signal Output -

8

OE-

I, Power

Output enable -

9

TEDS

I/O, Signal

TEDS
