DSM2500C IP to Analog Modulator User Manual
9

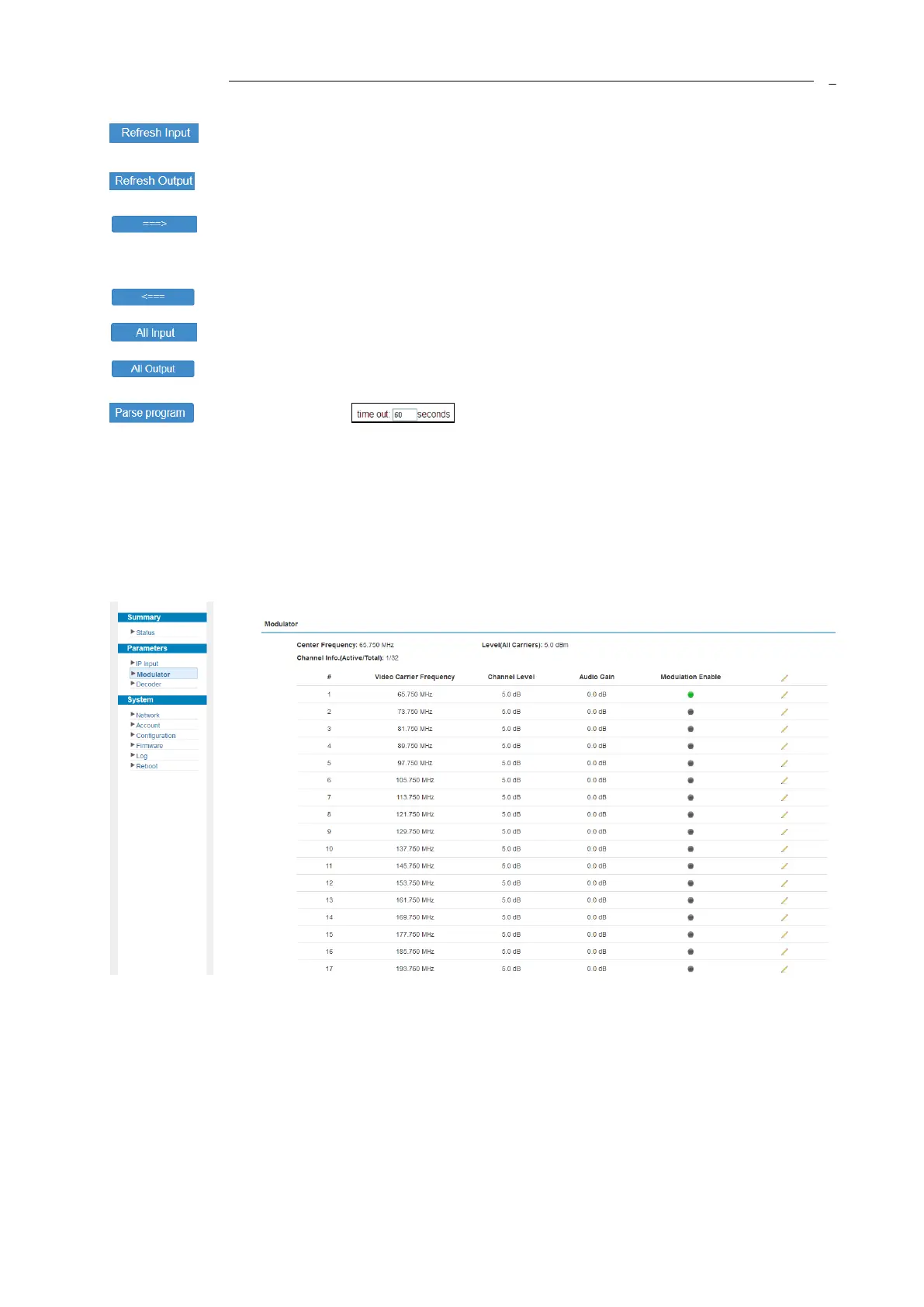

To refresh the input program information
To refresh the output program information
Select one input program first and click this button to transfer the selected program
to the right box to output.
Similarly, user can cancel the multiplexed programs from the right box.
To select all the input programs
To select all the output programs
To parse programs time limitation of parsing input programs
Parameters → Modulator:
Clicking “Modulator”, it will display the interface as Figure-4 where to set RF output
parameters. The output bandwidth capacity is 400MHz. Make sure the difference between the
starting frequency and end frequency will not exceed 400MHz.
Figure-4
Parameters → Decoder:
This function is to monitor status of decoding. It displays the interface as Figure-5.
