NDS3244S Multi-Channel Encoder User Manual
11
Parameters →IP Stream
NDS3244S supports TS to output in IP (1MPTS and 8 SPTS for each encoder module) format
through the DATA port.

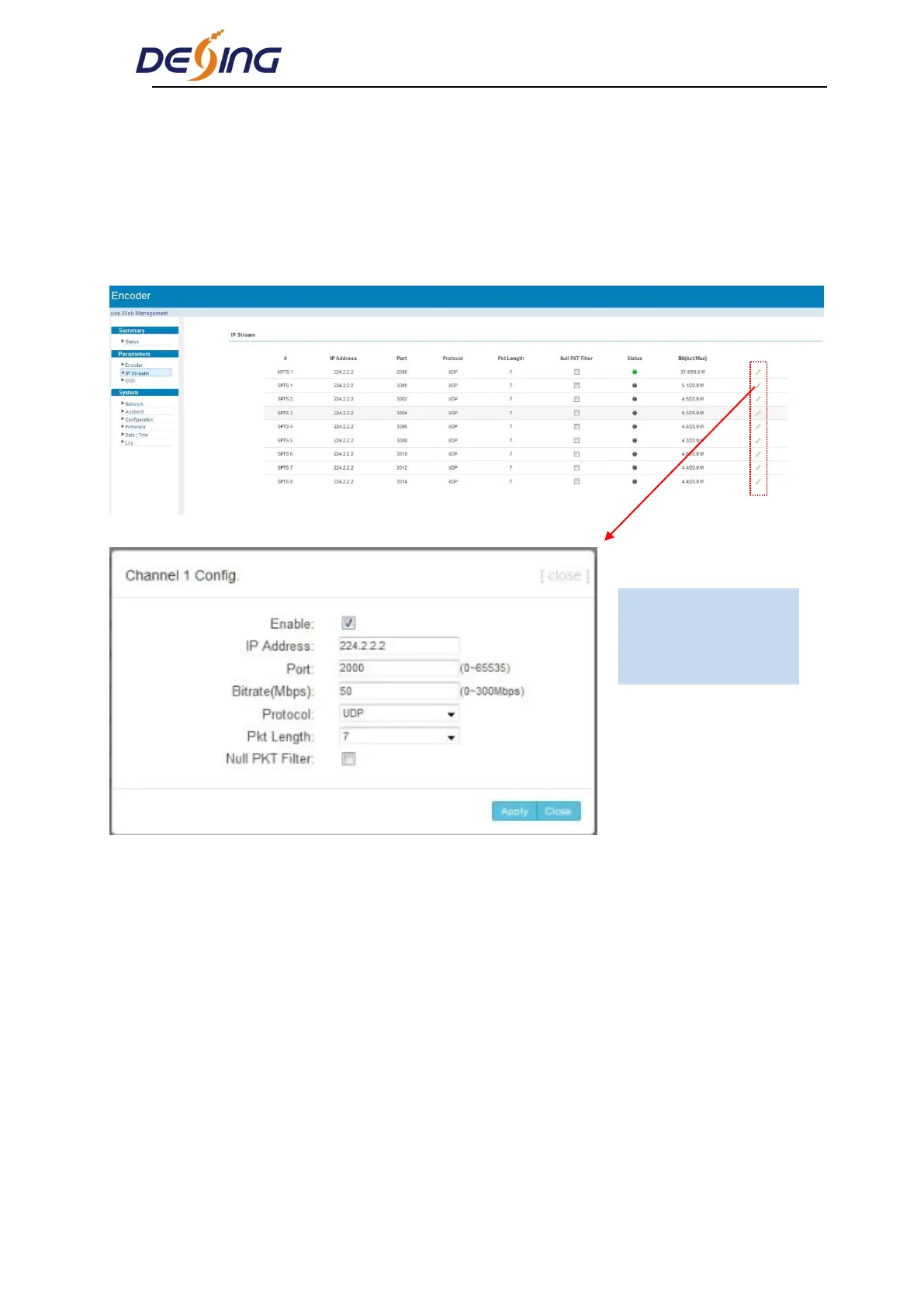

When users click “IP Stream”, it will display the interface as Figure-4 where to set IP out
parameters. (For Data 1000M GE port)
Figure-4
Parameters →OSD
Clicking “OSD”, it will display the interface where to configuration the OSD parameters as
Figure-5/6/7.
Click pen icon to
edit IP output
parameters
