Dexing NDS3508B - Input Program Parsing

NDS3508B Tuner to IP Gateway User’s Manual
13

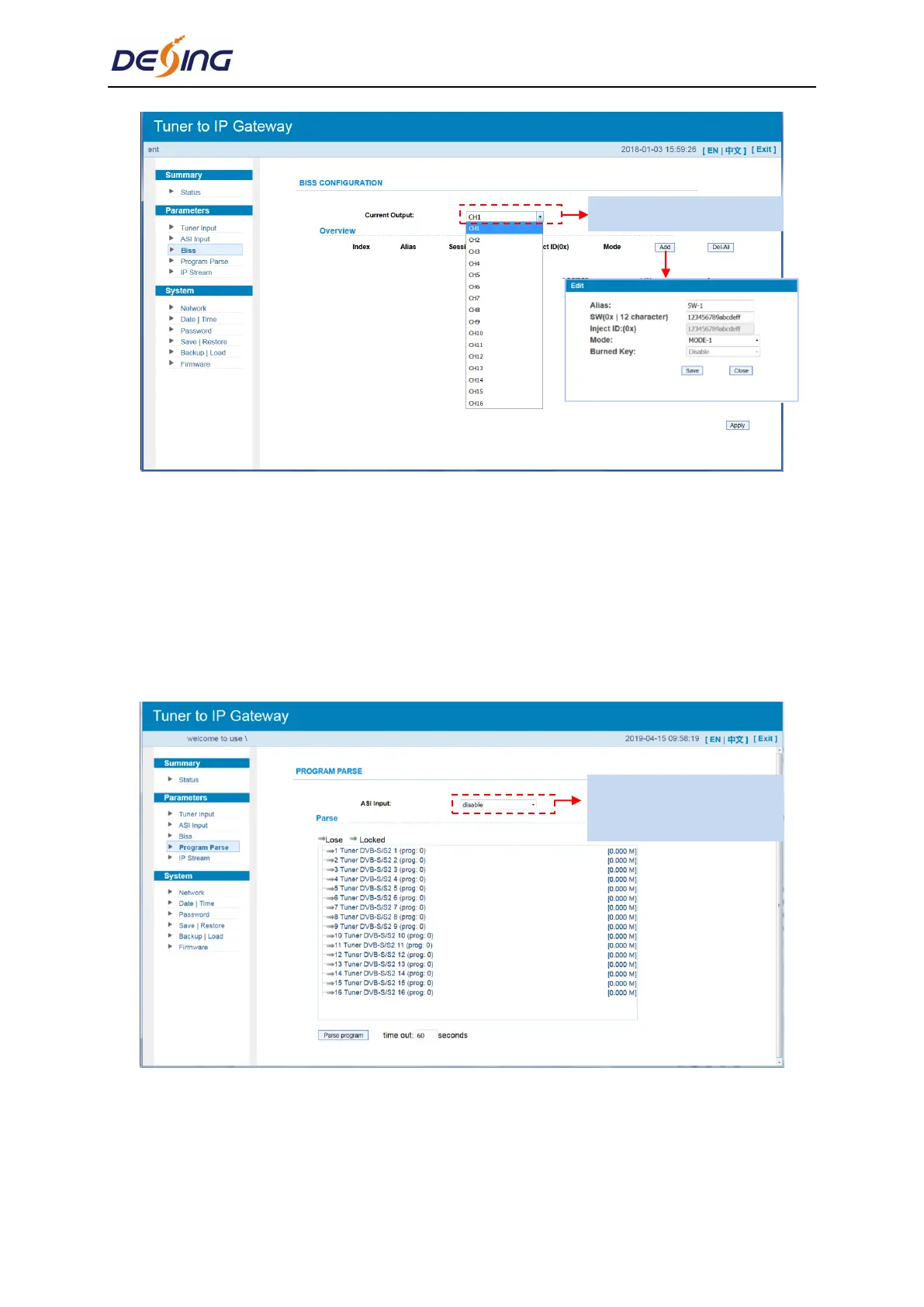

Figure-10
Parameter→ Program Parse
From the menu on left side of the webpage, clicking “Program Parse”, it displays the interface
where users can parse the program from the input channels.
When users disable the ASI input, NDS3508B can support 16 Tuner input with 16 MPTS IP
output (Figure-11).
Figure-11
When users enable the ASI input, NDS3508B can support 14 Tuner input and 2 ASI input
with 16 MPTS IP output (Figure-12).
Select the output carrier
Enable and Disable the
ASI input
