Ground Connections
The tow vehicle ground, trailer battery ground, trailer frame
ground, DSC ground (white) wire and the electric brake ground
wires on both sides of the trailer, must all be securely connected
together with 14 gauge wire (min.) in order for the DSC to function
properly.
Full Size +12V
Trailer Battery
Break-Away
Switch
-
+
Frame
Ground
Left Front
Electric Brake
Left Rear
Electric Brake
Right Rear
Electric Brake
Right Front
Electric Brake
All Grounds
Connected
Together
Dexter
Sway Control
Rear
Front
White
Blue
Black
White
White
White

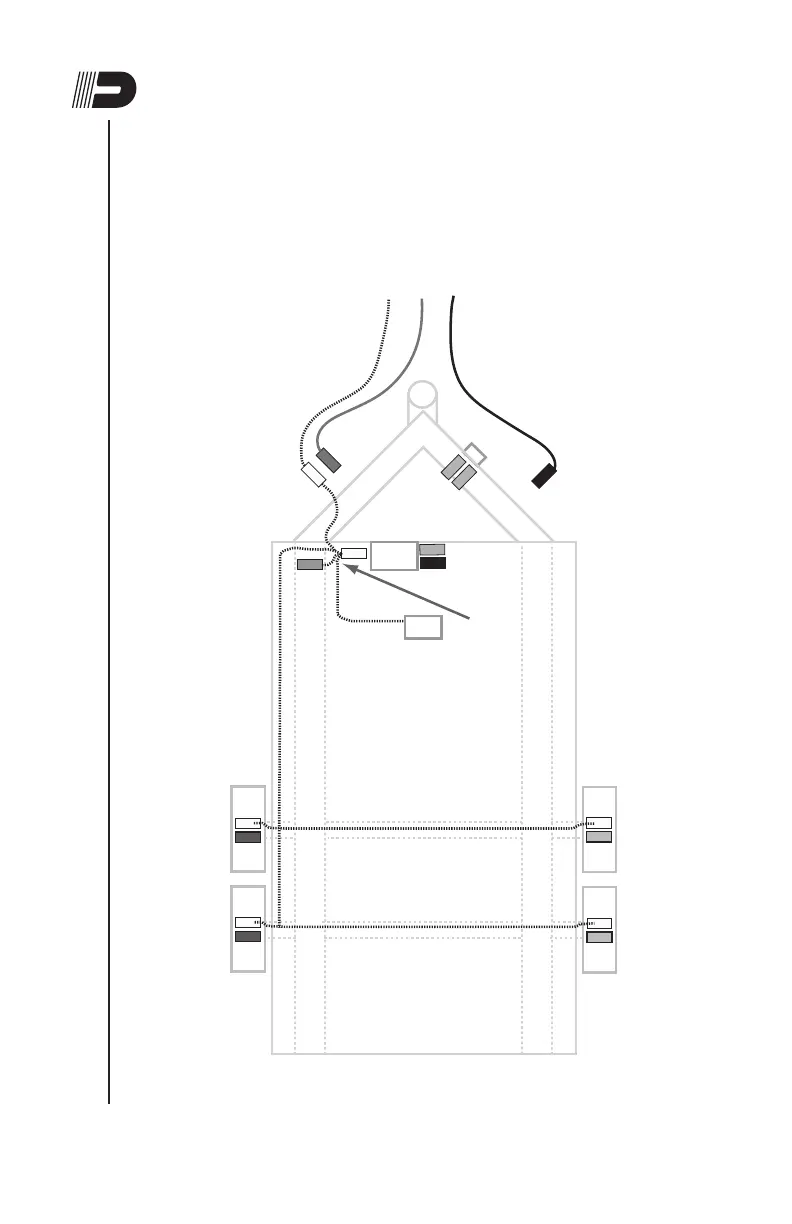

Figure 4
Dexter Sway Control Wiring
