DeZURIK
G-Series Cylinder Actuator Used on BAW Butterfly Valves
August 2012 Page 11 D10480
Reassembling Actuator (Continued)

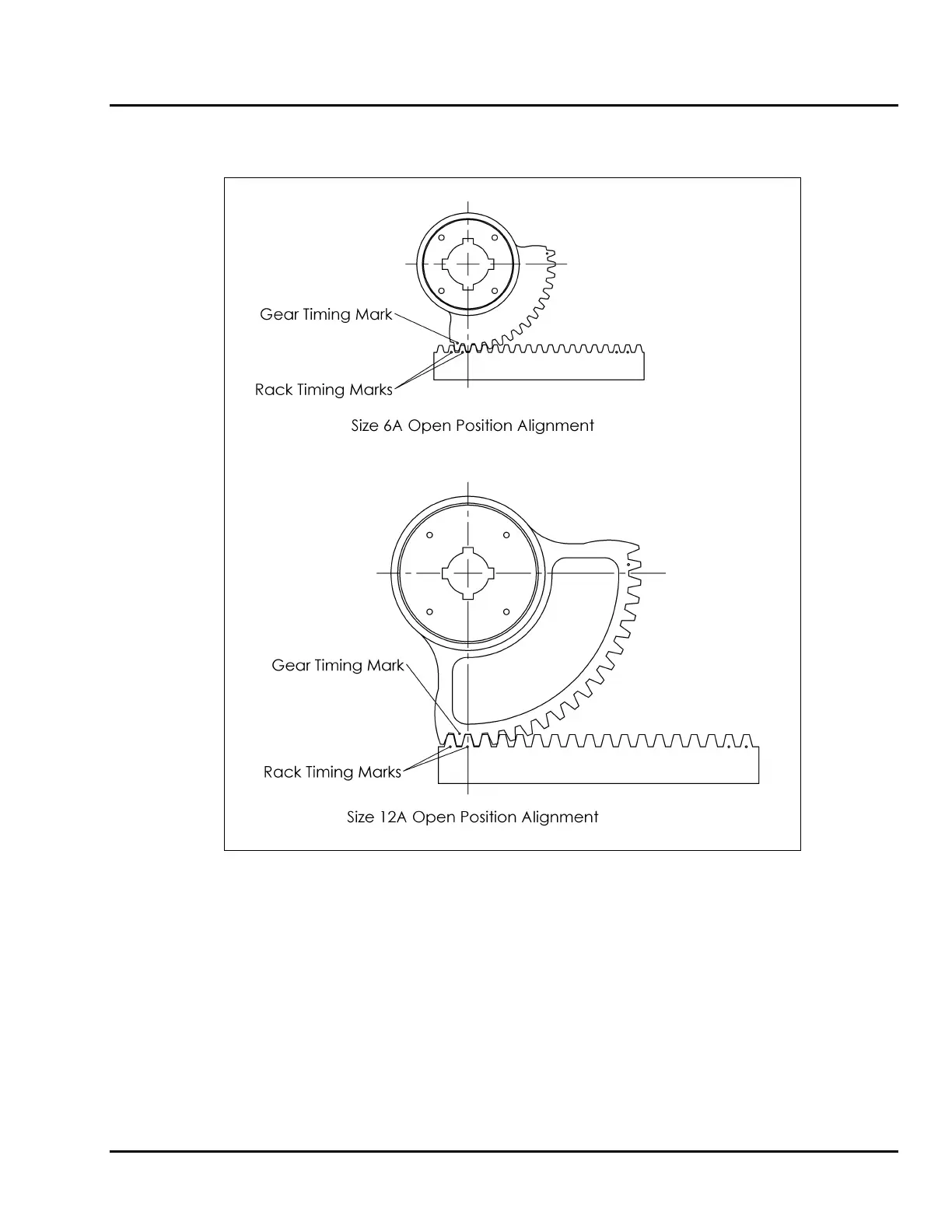

Figure 7 – Gear and Rack Alignment
7. Place a new gasket (B26) on the cylinder head.
8. Install the cylinder/rack rod assembly by sliding the rack rod through the rack (B4) and fasten
the cylinder to the housing (B1) with screws (B27).
NOTE: If the rack rod is not attached to the cylinder assembly, clean the threads of both the rack rod and
the cylinder shaft, then apply Loctite to the cylinder shaft threads and screw the rack rod onto the cylinder
shaft.
9. Slide the spacer (B21) onto the rack rod (B6) and screw the jam nut (B22) onto the rack rod
(B6) until the spacer is tight against the rack (B4).
10. Screw the cap nut (B25) onto the rack rod (B6) and tighten the two nuts against each other.
