SLAT WARNING
Incorrect: Slat curve
facing downwards.
Correct: Slat curve should
be facing upwards.

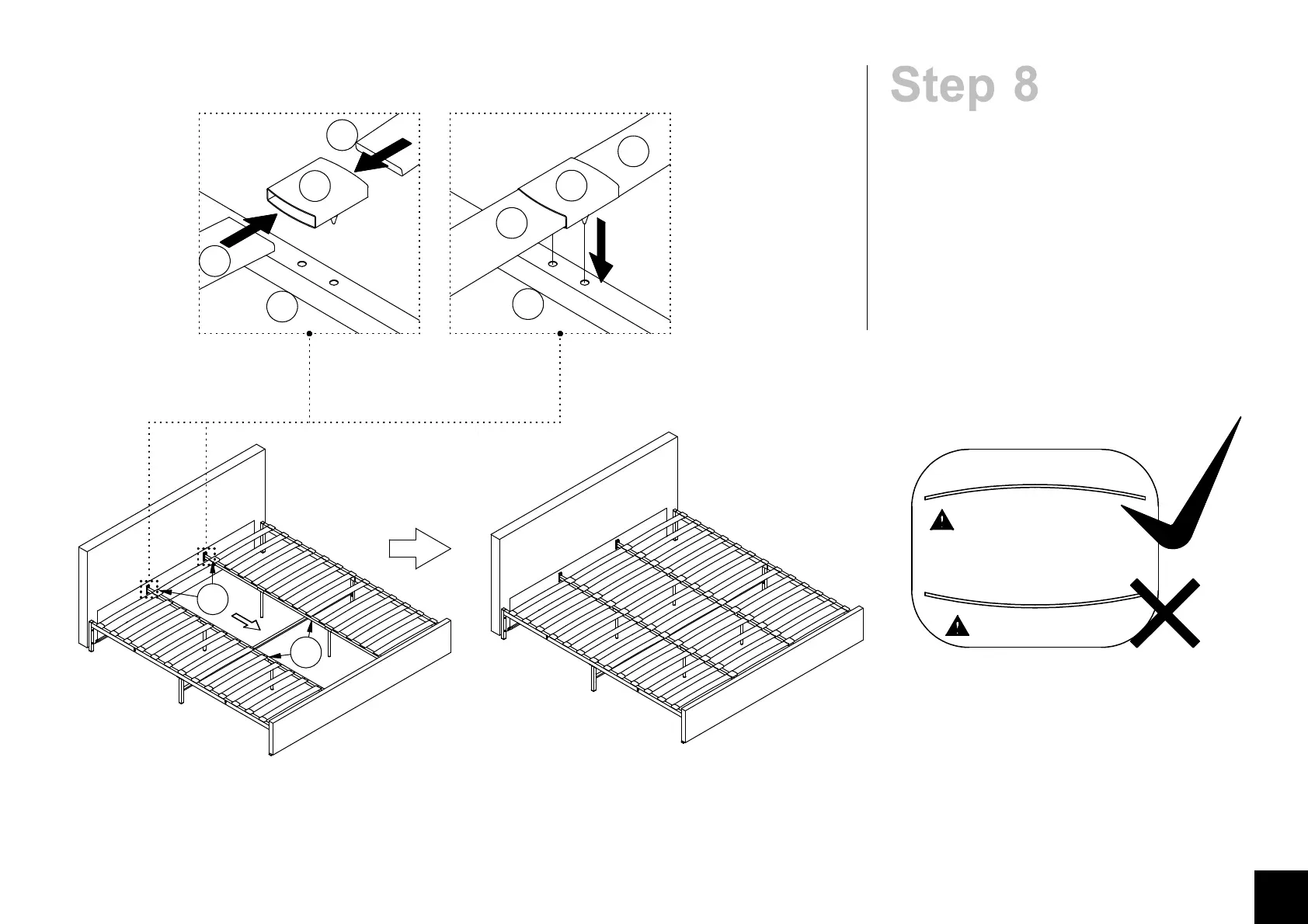

8.1 Insert Y x 2 onto the ends of P1
assembled in previous step;
8.2 Take a new P1 and insert both ends
into the other free end of Y x 2, then press
Y x 2 SIMULTANEOUSLY into F x 2 as
illustrated.
Follow the same procedure going
backwards for every row of slats.
Y
F
8.1
8.2
P1
Y
P1
F
F
P1
Y
P1
To Next Page
