DHP 5512098 - Page 18

18 /32
B34551209801
3
4
X 6X 4
12

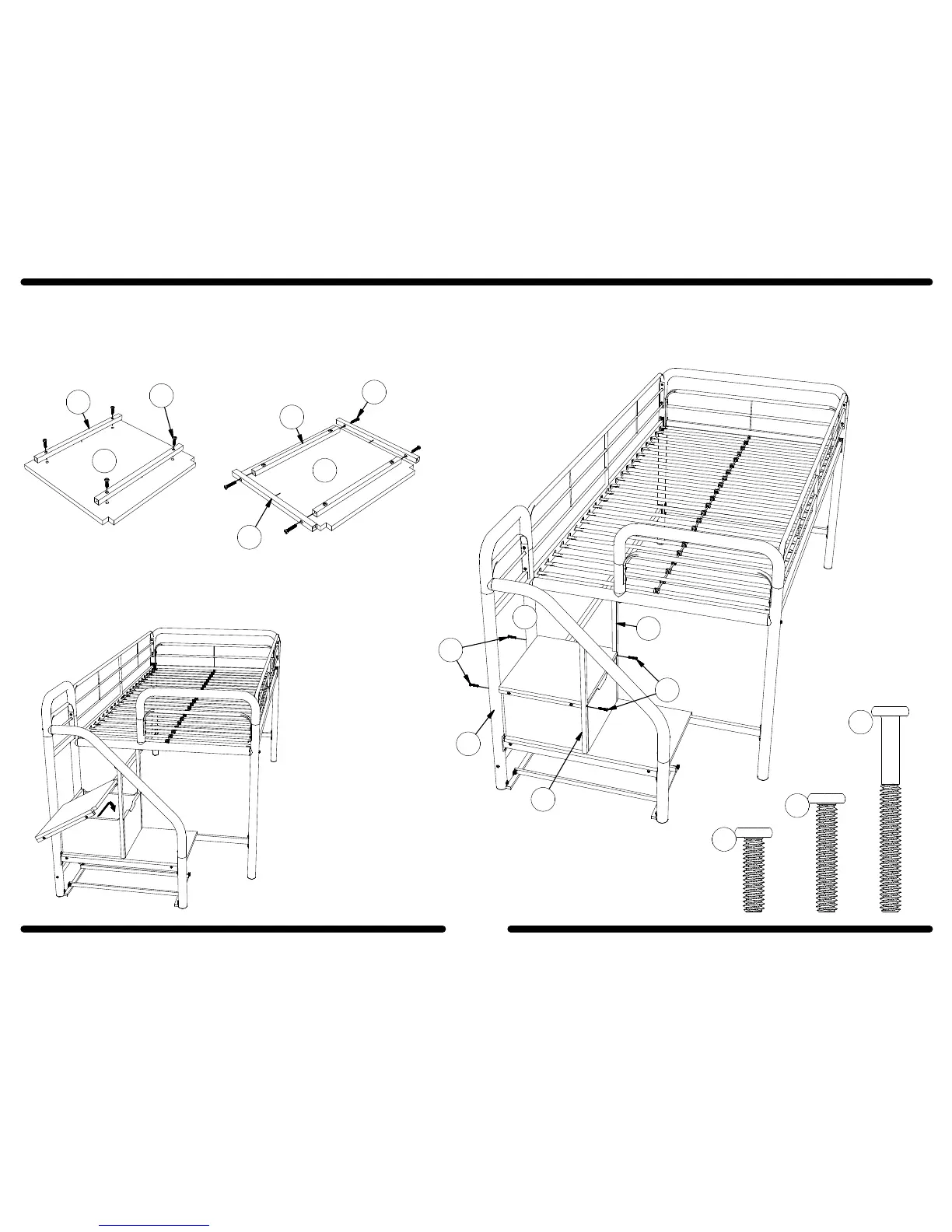

Attach (C1) to (A2) with BOLTS (4); Attach (K1) to (C1) with BOLTS (3).
Place the subassembly into place as shown then fasten it to (B & D1) with BOLTS (2) and to (B1 & R) with BOLTS (3).
12.1
12.3
12.4
2
X 2
2
3
4
3
A2
C1
K1
12.2
C1
A2
B1
D1
B
R
