Diamond Bidex 500 - Step 4 Preparation; Floor mounting; Plinth mounting; Step 5 Water Connections

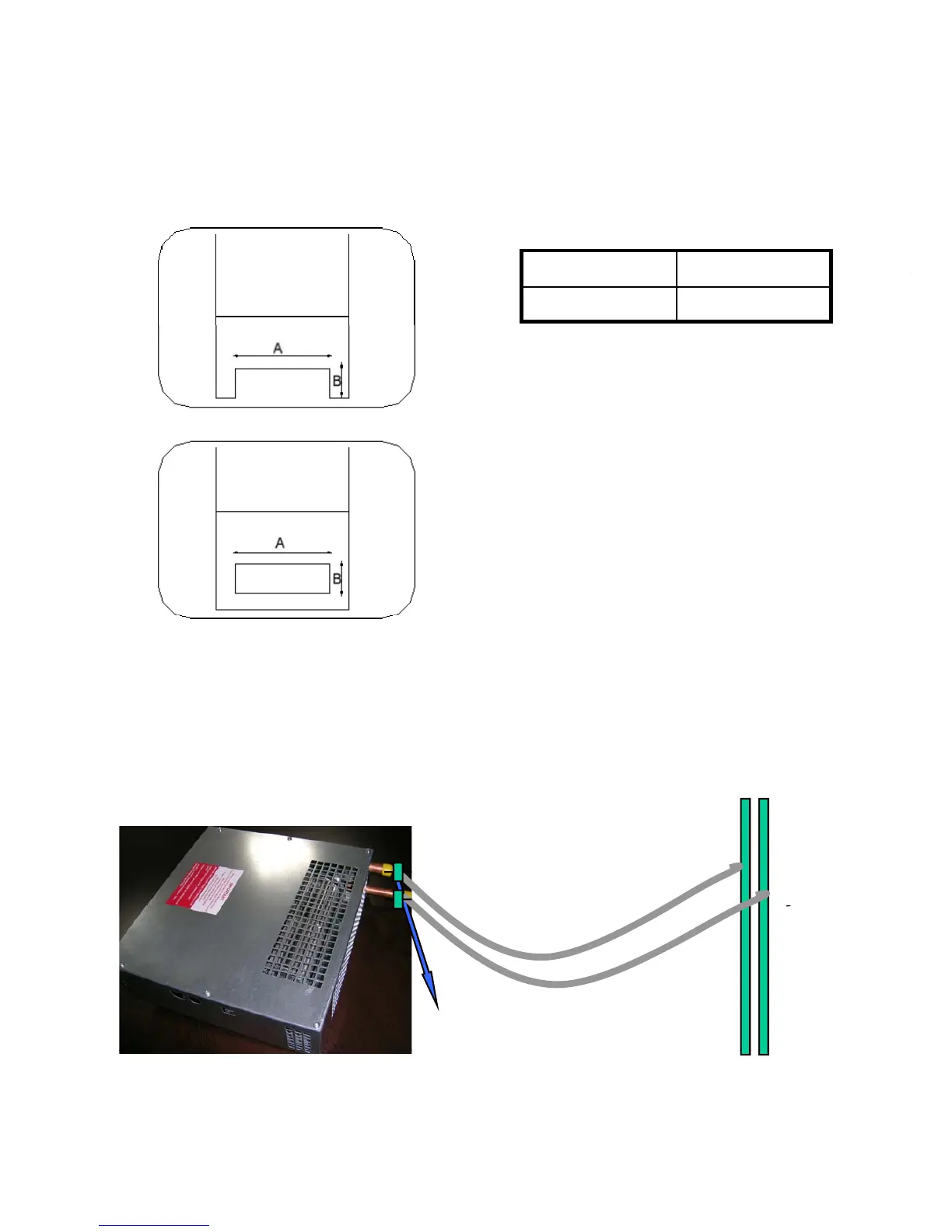

Step 4 Preparation
This product is normally fitted directly onto the floor.Once the position has been
decided mark out and cut
the plinth to the dimensions as shown below
decided
,
mark
out
and
cut
the
plinth
to
the
dimensions
as
shown
below
.
AB3203
320mm 100 mm
A= Width of cutout
B= Height of cutout
• Floor mounting
• Plinth mounting
Step 5 Water Connections
Fit the valve end of the flexible hoses to the Plinth Heater and the other ends to the
central heating flow and return pipe work. Note the direction of flow arrows on the valves
are not important in this application
S
y
stem
y
pipe work
Flexible
hoses
Isolating
Valves
2
