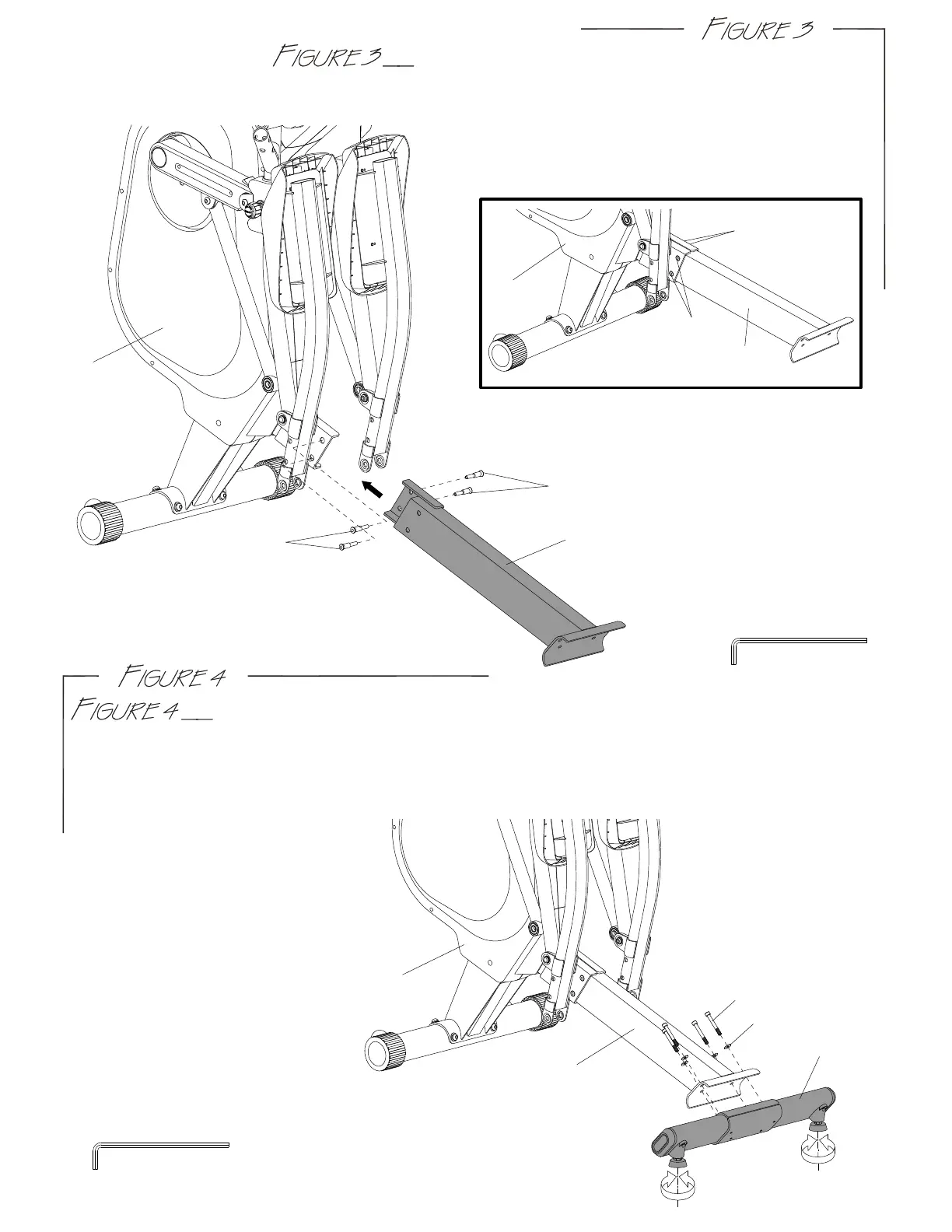

CENTRAL SUPPORTING TUBE (F) ASSEMBLY
A
F
F
A
F4
F4
F4
F4
USE TOOL:6m/m
USE TOOL:6m/m
REAR STABILIZER (C) ASSEMBLY
A
F
C
F2
F3
5
Step 1. Attach the central supporting tube (F)
onto main frame (A) with four screws
(F4).
Tighten the screws (F4) on the
central supporting tube when the unit is lifted.
Step 1. Attach the rear stabilizer (C ) onto the central supporting tube (F) with four
screws (F2) and washer (F3).
Step 2. Adjust the stabilizer feet on the bottom rear stabilizer (C ) to level the machine.
