PEDAL TUBE COVER-(L&R) ASSEMBLY
FRONT CONNECTING SHAFT (A53) &
FRONT PEDAL SUPPORTING TUBE-L&R (A64&A65) ASSEMBLY
A53
A64
A65
A62
A61
USE TOOL:6m/m
USE TOOL:6m/m
A107
A63
L1(A72)
A64
L2(A73)
A78
R2(A74)
R1(A75)
7

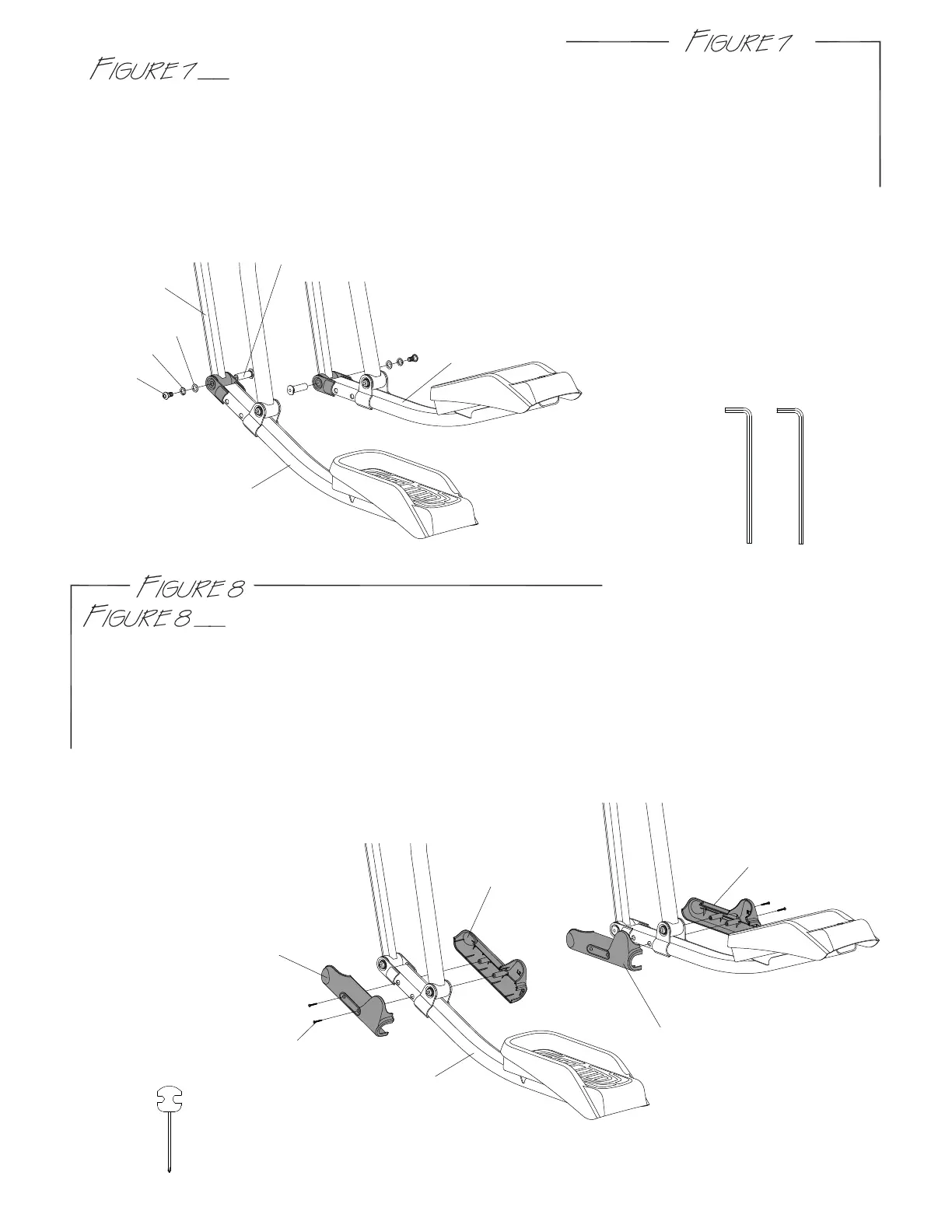

Step 1. Attach front connecting shaft (A53) and front pedal supporting
tube-L (A64) using bolt (A107), screw (A63) spring washer (A62)
and washer (A61).
** Repeat same step to finish right side assembly.
Step 1. Fit the pedal tube cover-L1 (A72) and pedal tube cover-L2 (A73) to the
front pedal supporting tube-L (A64) using the two screws (A78).
** Repeat same step to finish right
side assembly.
