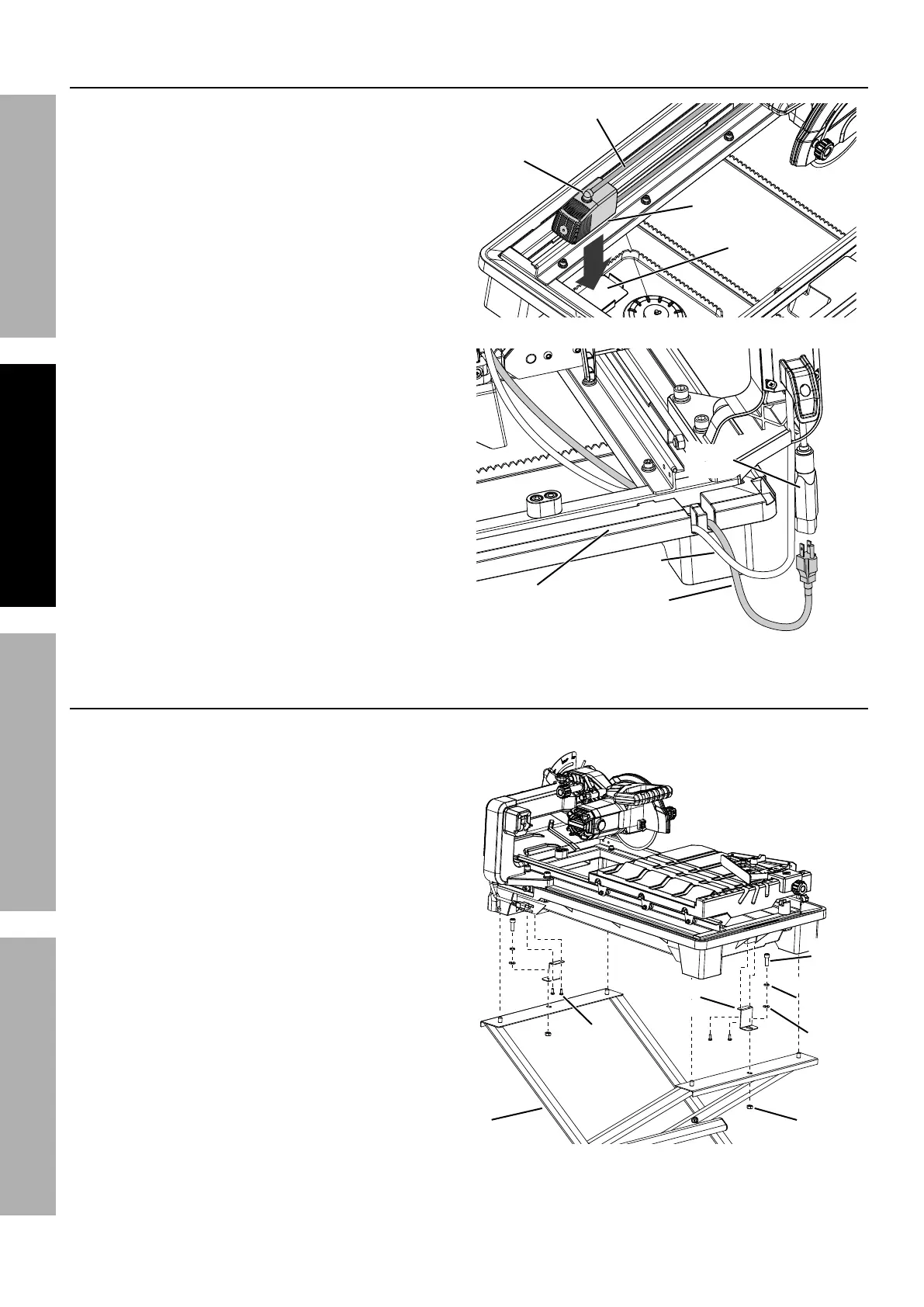

1. Place the Pump (167) into the Pump Bracket. Press
down firmly on the Pump to attach its suction feet to
the bottom of the Water Tray. Insert the Clear Hose
into the Water Tray through the slotted opening and
connect Hose to the barbed Hose Connector fitting.
2. Adjust position of Pump or Hose as needed to
ensure the Hose does not contact the bottom of
the Table or interfere with Table movement.
3. U(V%V&'(%.,89#%,89%'8/7'3%$.*%G"7*%E,)1%%
Position the Pump Power Cord in the slotted
opening on the Water Tray as shown. Push
back rubber boot on the Pump Outlet and
plug Pump Power Cord into Outlet. Pull
rubber boot back into place to cover the
connection to help keep water off plug.
N&'8$"83%E,)%$&%E$,89
1. Lock the Toggle Table Stop by pulling up on it
and turning it until the slot in the center of
the Stop is horizontal (left to right).
2. Pull the Table to the front of the Frame.
From under the right side of the Table, align the
hole in the rail with the pin in the Table Lock Lever.
Push the pin into the rail, locking the Table.
3. Attach two Stand Brackets (150) to ends of Water
Tray using two ST4.8 x13 Screws (1) per Bracket.
4. With assistance, align four holes on
Water Tray with mounting pegs on
Stand and place Saw on Stand, making
sure pegs are fully inserted. Align the
mounting holes on the Stand Brackets
with the holes on the Stand (stand and
mounting hardware sold separately).
5. Insert M8 x 20 Socket Head Cap
Screws through Ø8 Spring Washers,
Ø8 Flat Washers and into mounting
holes. Secure using M8 Lock Nuts.
M8 x 20
E4(*)
ST4.8 x 13
E4(*)
E$,89
E$,89%
S(,4`*$
Ø@%;7,$%
Q,#.*(
Ø@
%E/("83%
Q,#.*(
N@%%
T&4`%M'$
N&'8$"83%E,)%$&%E$,89
J'5/%E*$'/
]&#*
]&#*
]&#*%
O&88*4$&(
J'5/%
S(,4`*$
J'5/%
I'$7*$
J'5/%%
J&)*(%O&(9
J'5/
Q,$*(%
G(,V
