CONNECTING INVERTER CABLES4.
The inverter and power source must be in the OFF mode.
Make sure you connect your inverter to a 12-volt power supply only.
Inverter connection:
Decide whether you want to use the 12 volt power plug (100 watts 1.
maximum) or the battery clamps (full inverter capacity).
Locate the positive and negative plastic terminals located on the back of 2.
the inverter and remove the terminal caps completely.
Install the positive (red) cable ring lug onto the positive (red) terminal screw. 3.
Install the negative (black) cable ring lug onto the negative (black) terminal
screw. Tighten each terminal so that the cable cannot come loose.
Connecting inverter cable to a vehicle (100 watts maximum):
DC Outlet
DC Plug

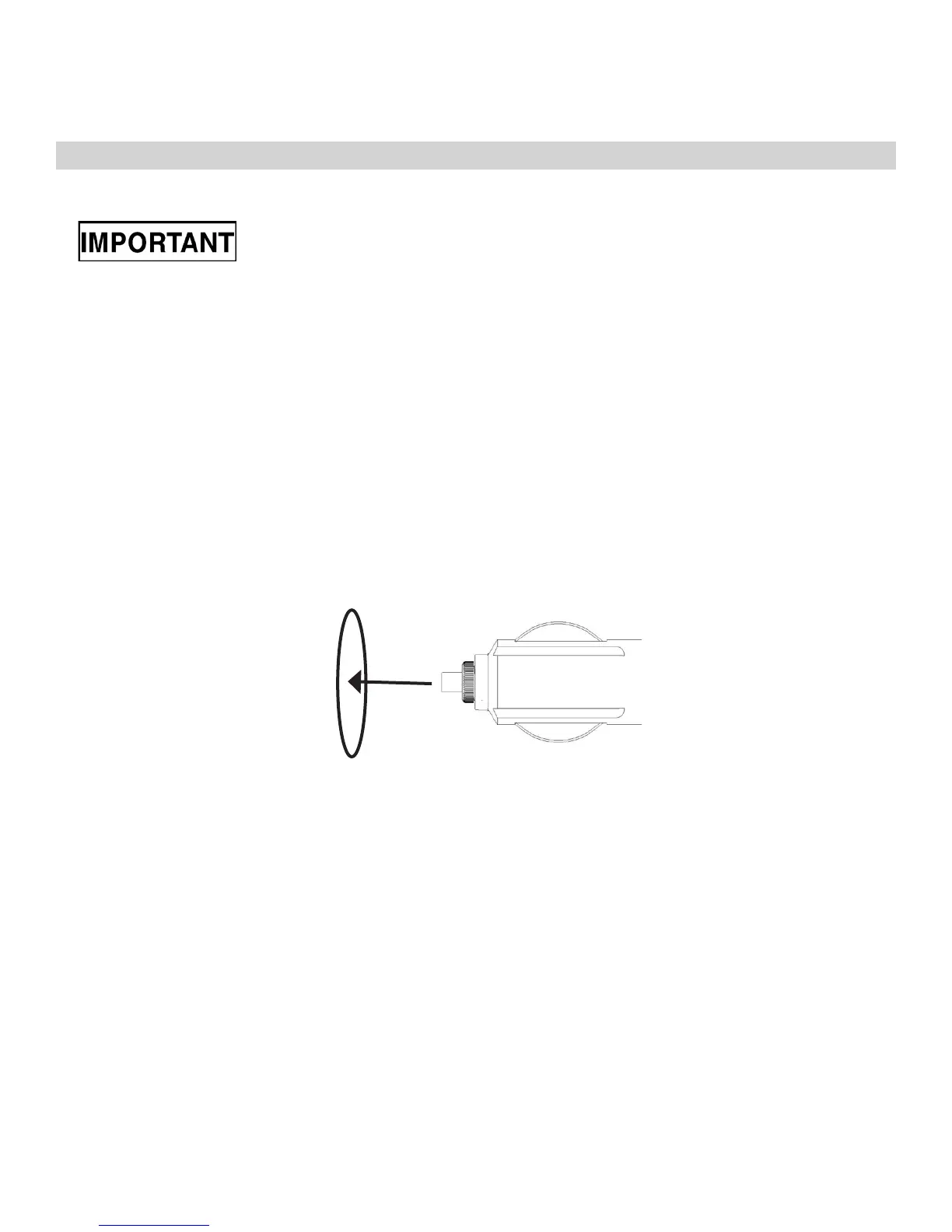

Remove the cigarette lighter from its outlet.1.
Push the 12-volt power plug rmly into the outlet.2.
