MINI/BIGFOOT/BIGFOOT XD

To adjust the Trench depth on your trencher, you will need to loosen and remove the two 5/8” unc nuts and

spring washers that hold the skid plate onto the trencher side plate. Then remove the skid plate and rotate it

until the two xed bolts line up with the holes for the Trench Depth that you require. See above illustration and

take note of nut positions to suit 600mm, 750mm, 950mm and 1200mm Trench Depths (for the 1200 Dig Bigfoot

XD, other trenchers will have different depths). Then reassemble the skid plate onto the side plate, check that

the star washers are still in good condition and tighten the nuts back up rmly using hand tools.

HYDRIVE/HYDRIVE XD

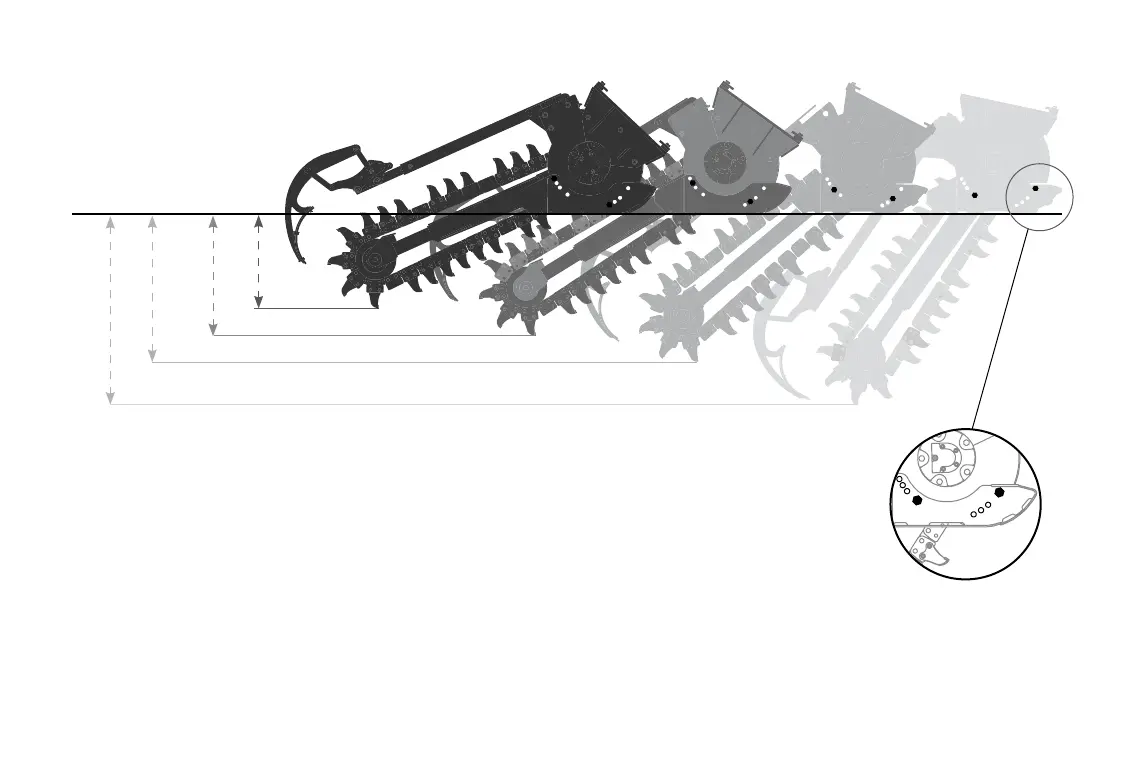

To adjust the trench depth on your trencher adjust the cutting angle until at the required depth.

600mm

750mm

900mm

1200mm

GrounD level

4 insTallaTion anD oPeraTinG insTrucTions

TRANSPORTING THE ATTACHMENT

1. Follow all federal, state and local regulations when transporting the unit on public roads.

2. Use extra care when loading or unloading the machine onto a trailer or truck. Disconnect hydraulic couplers during transportation.
