Connection of Jumper Cable
Important: Place the starter keys of both rescue machine and malfunctioned machine to OFF.
The booster machine and the machine with depleted battery are prohibited for mutual contact.
The positive (+) and negative (-) clamps of the jumper cable are prohibited for mutual contact.
During connection, firstly connect the jumper
cable to positive (+) terminal. During
disconnection, firstly disconnect the cable from
negative (-) terminal.
Connect the last clamp of jumper cable to a
point as far as possible from the battery.

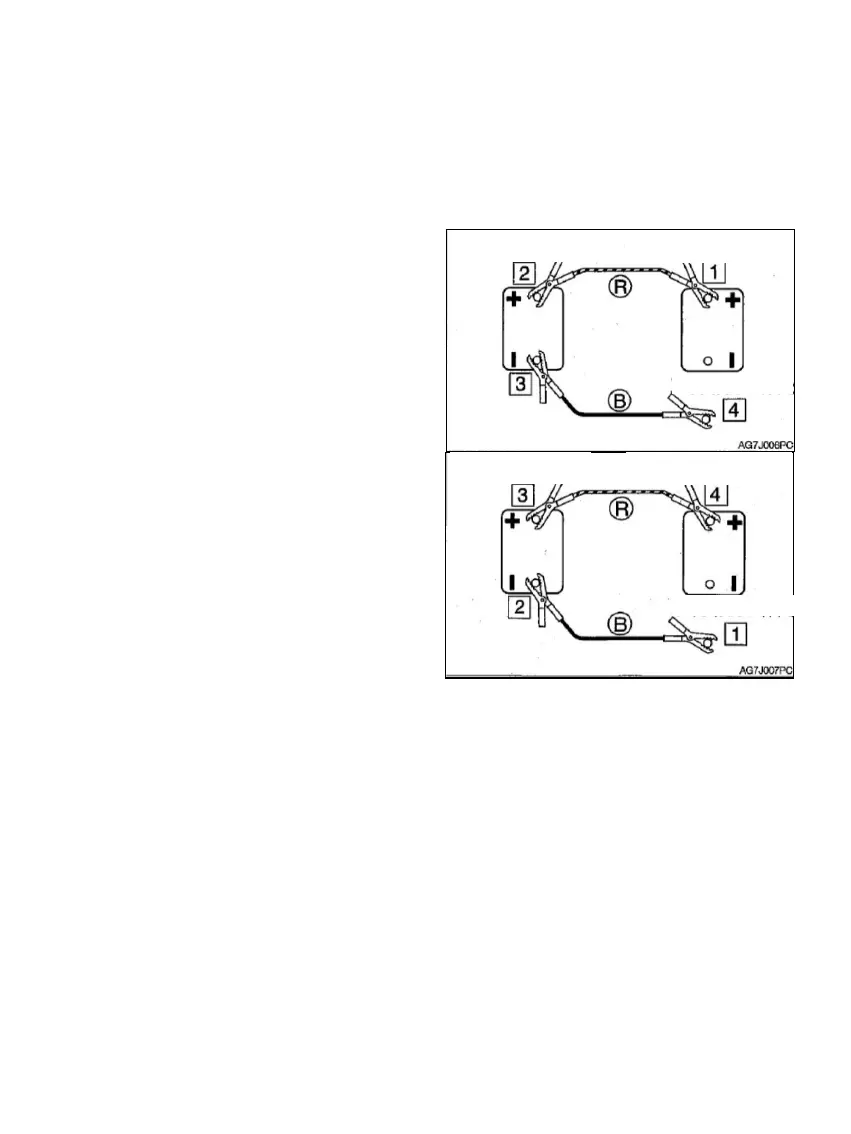

Connect a clamp of jumper cable (R) to the
positive (+) pole of malfunctioned machine.
Connect the other jumper cable clamp (R) to the
booster (+).
Connect the jumper cable clamp (B) to the
charger (-).
Connect the other clamp of jumper cable (B) to
the engine support of the malfunctioned
machine. Connect the clamp to a point as far as
possible from the battery.
After Start of Engine
Check and ensure that the wire clamps are already connected securely to various terminals.
Start the engine of rescue machine and run it at high speed.
Start the engine of the malfunctioned machine.
Disconnection of Jumper Cable
After the successful start of the engine of malfunctioned machine, disconnect the jumper cable in
reverse sequence of the connection procedure.
Disconnect the jumper cable (R) clamp from the charger (+).
Disconnect the jumper cable clamp (R) from the uncharged machine (+).
Disconnect the clamp of jumper cable (B) from the engine support of malfunctioned machine.
Disconnect the other jumper cable (B)
