44
Seat and Seat Belt Seat
Tilting of Seat

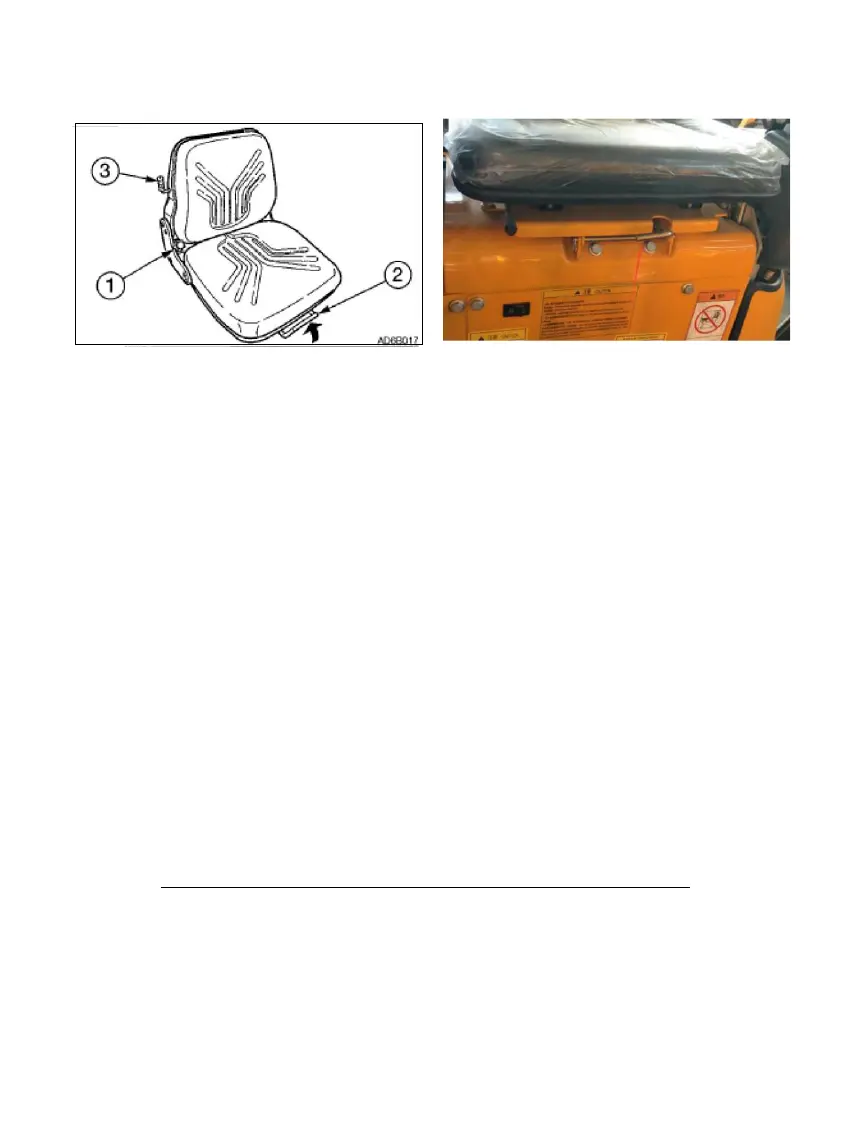

Warning Adjustment and Fixing of Seats (For high-end seats only)
Backrest angle adjustment
Sit upright against the seat.
Use the rotary handle (1) to adjust the backrest to desired angle.
Longitudinal adjustment
Pull up the adjustment handle (2) and slide the seat longitudinally to the position you desired for
operations of machine.
Loosen the adjustment handle (2) at your desired position to fix the seat.
Adjustment angle: 10 positions within 150mm.
Adjustment as per operator’s weight
Move the adjustment handle (3) to set up as per operator’s weight.
Opening
Manually pull forward this handle.
Tilt forwards the seat.
Closing
To close it, manually pull the handle, place level the seat, and then release the handle.
Seat Belt
Before starting the engine, please ensure to securely fasten the seat belt.
Adjust the seat to your desired operating position, sit uprightly in the seat, and lean backward
your body.
Pull the seat belt to required length.
Ensure that the seat belt is not kinked and insert the seat belt tab (A) into the buckle (B), till a
click sound is heard to indicate the secure locking.
