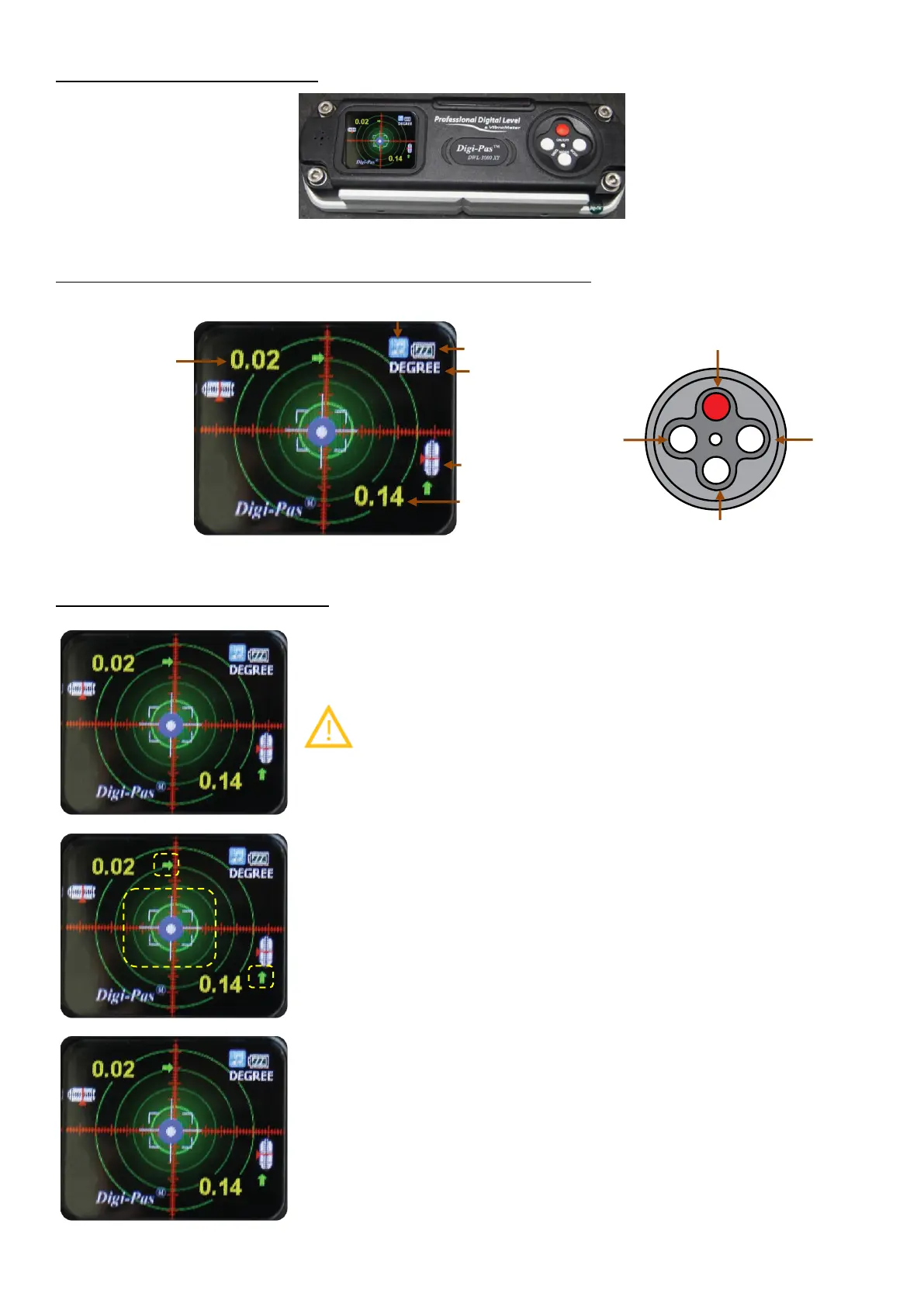

Dual-Axis Mode Interface
Dual-Axis Mode Display Screen and Button Function
Dual-Axis Mode Operation
Place the digital level on the surface to be measured.
Please ensure the contact surfaces of the device and measuring plane
are clean and free from dust particles.
The “Target Ball” or “Bull Eye” move towards the measured
position similar to traditional "Bubble" vials. The green arrow
sign on display indicates the higher side of plane.
Once the measurement stabilizes, the “Target Ball” or “Bull
Eye” blinks.
VERTICAL (Y) AXIS
DIGITAL READING
HORIZONTAL (X) AXIS
DIGITAL READING
