Digi-Pas DWL3500 XY User Manual

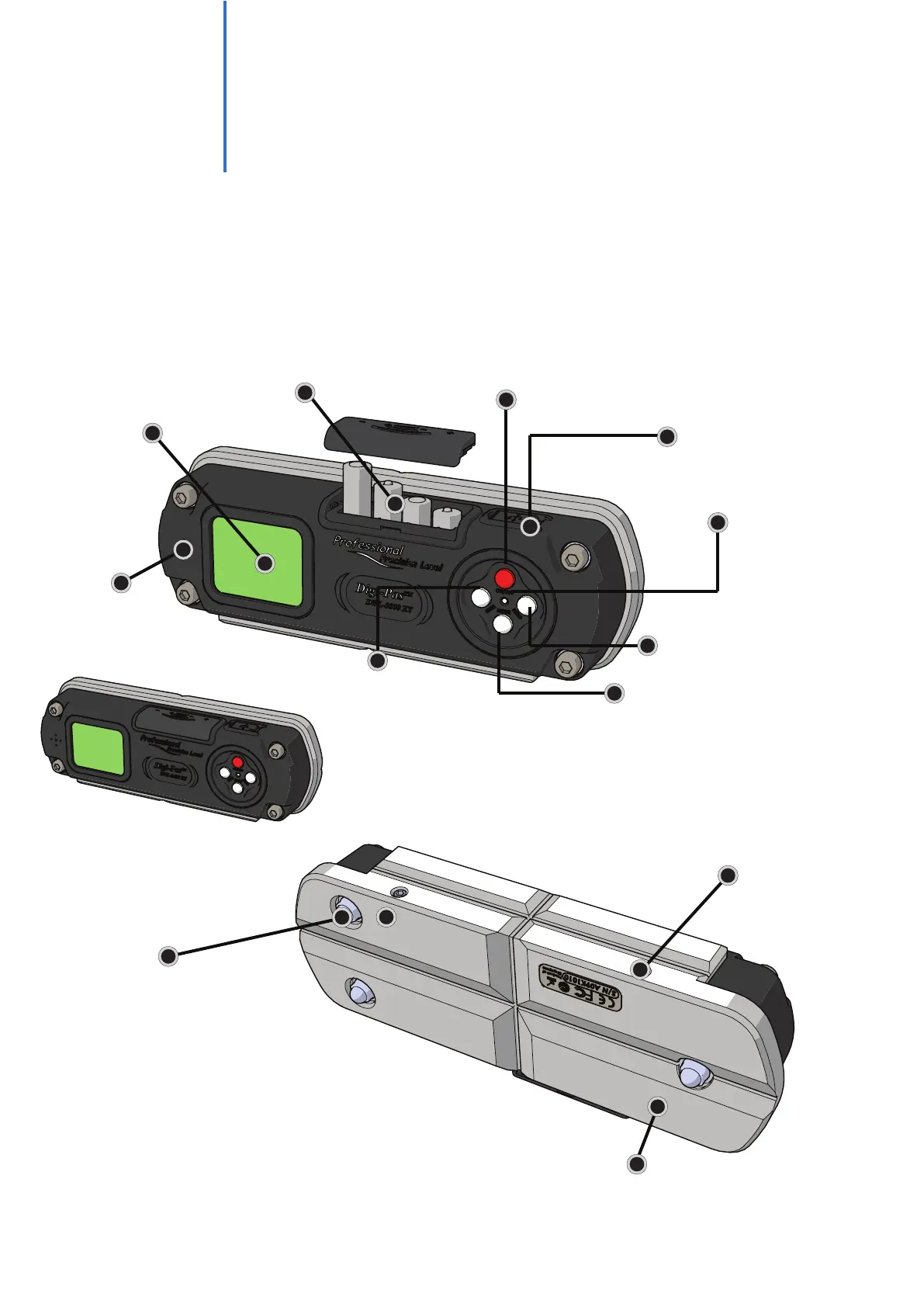

OVERALL VIEW
1
CHAPTER 1: OVERVIEW
Battery Compartment of 4 x “AAA” size 1.5V batteries
Observe the Polarity of the Batteries indicated on the top of the battery cover
ON/OFF: Turn on/off
- Escape from Mode function
LCD Colour graphic digital display
Buzzer sound alert
USB Port:
- Alternative power supply
- Data transfer from device to computer
- Firmware update
CAL: Change calibration value
- (Refer calibration instruction)
HOLD: Freeze display value
- Change the selection cursor in
- clockwise or RIGHT direction
MODE: Change the function and display mode
- Selection the function
UNIT: Change the unit of the measurement
Ball Screw:Using of Three - points screw on
measuring plane surface
FRONT VIEW
BACK VIEW
Side Screw holes: For mounting purpose.
Cast Iron Base
