Digi TransPort WR21 - Shark Meters

Meter Engineers Handbook for Cellular Communication 16

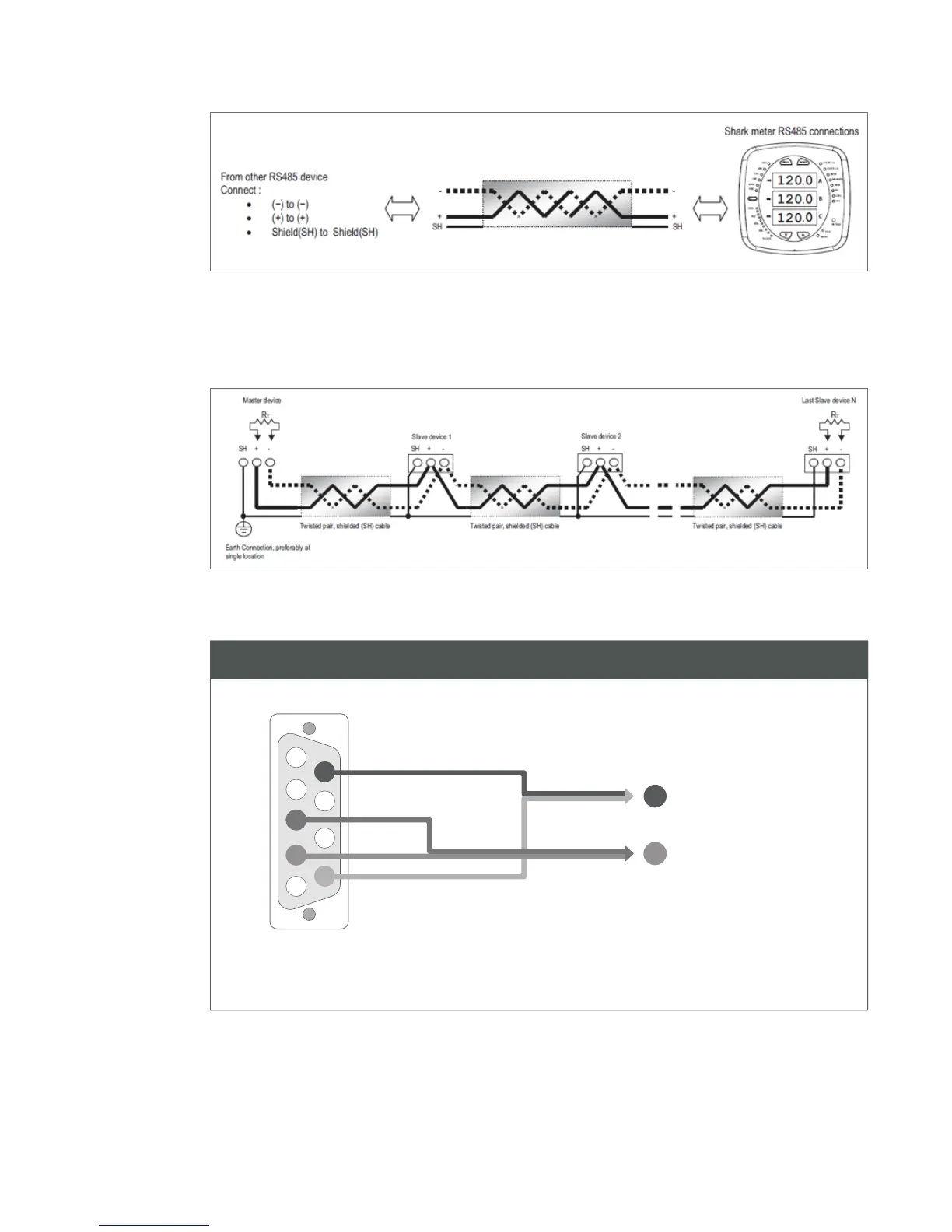

Hooking up multiple Shark meters to a single Digi TransPort WR21. Terminating resistors are only necessary on the
last Shark meter. No terminating resistor is needed at the Digi TransPort WR21.
Shark 200 and 200T. Installation and Operation Manual. V1.14. Pg. 5-3
Shark 200 and 200T. Installation and Operation Manual. V1.14. Pg. 5-4
8
7
4
5
1
Digi TransPort WR21 Cable to Shark Meters
9
6
3
WR21
DB9 (Male)
Shark Meter Comm
2
Connect wires
from WR21 together
Connect wires
from WR21 together
- Pin on Shark Meter
+ Pin on Shark Meter
+
-
