Expanded Systems Guide
10
Pro Tools 13-Slot Expansion Chassis
There are two versions of the Pro Tools 13-Slot
Expansions Chassis:
◆
Pro Tools Expansion Chassis with serial num-
bers NB055300B1 or lower are identical to the
Magma model PCI-13-RX-400V. For compatibil-
ity and configuration details, refer to the infor-
mation that pertains to that model.
◆
Pro Tools Expansion Chassis with serial num-
bers NB06000C1 or higher are identical to the
Magma model PCI-13R. For compatibility and
configuration details, refer to the information
that pertains to that model.
For the latest compatibility information on ex-
pansion chassis, visit the Digidesign Web site
(www.digidesign.com/compato/).
Slot Layout for Magma 13-Slot
Expansion Chassis
Magma model PCI-13-RX-400V has slots that
are numbered sequentially (3–15), left-to-right,
from the front.
Magma model PCI-13R has slots that are num-
bered sequentially, right-to-left from the front,
in two banks (4–9 and 4–10).

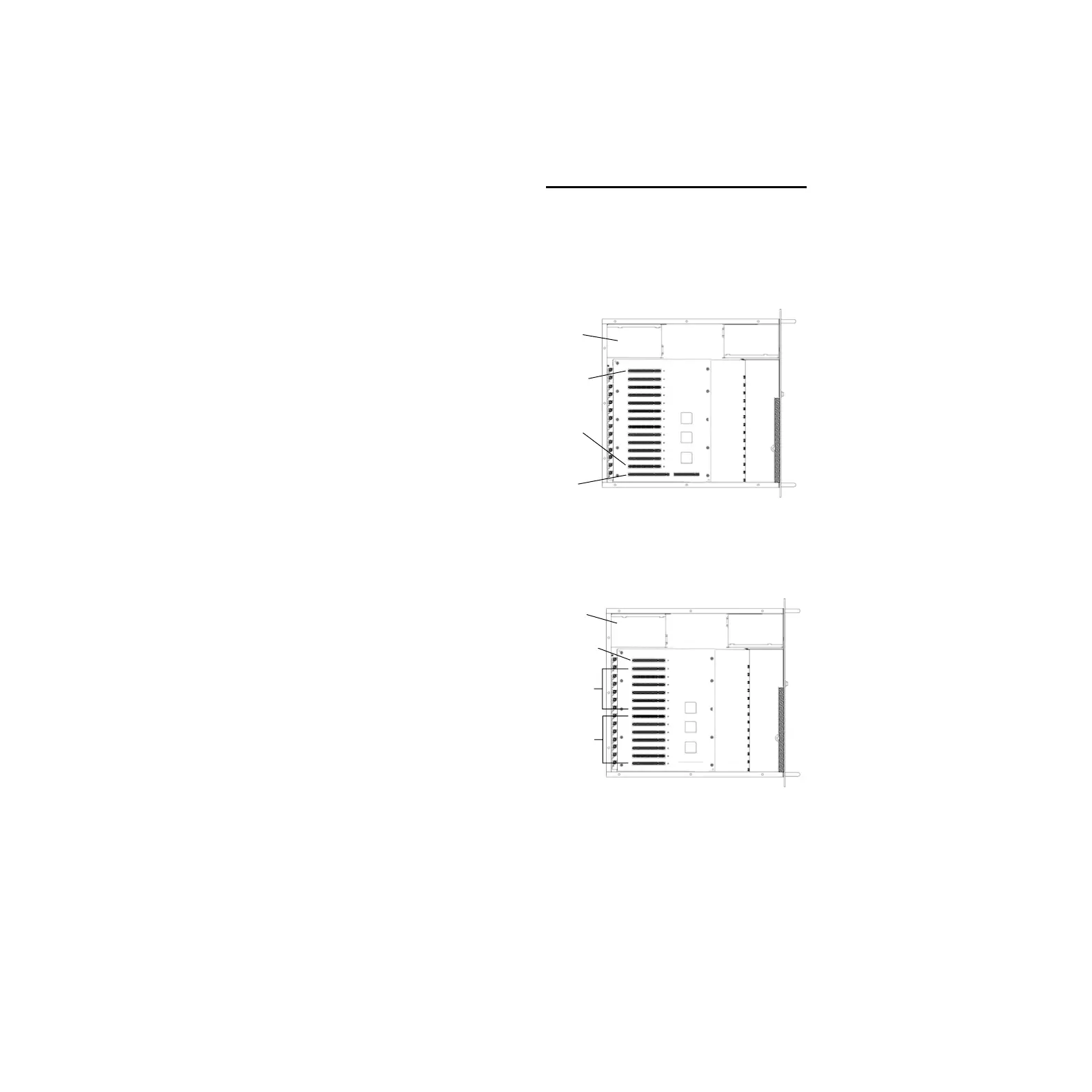

Slot numbering for Magma model PCI-13-RX-400V
Slot numbering for Magma model PCI-13R
Slot 15
Slot 3
Controller
Card
Front
Power
Supply
2nd Bank,
Slots 4–10
Controller
Card
Front
Power
Supply
1st Bank,
Slots 4–9
