Chapter 5: SBS 13-Slot Expansion Chassis 21
chapter 5
SBS 13-Slot Expansion Chassis
The SBS 13-Slot Expansion Chassis (models
DD23, 240-2-2, and 240-2-201), with Bridge
Chip version Intel/DEC 2.1, are compatible with
the following systems:
Pro Tools 24 MIX and MIXplus:
• Power Macintosh 9500/9600
• Power Macintosh G3 (Beige)
• Power Macintosh G3 (Blue & White)
• Power Macintosh G4
Pro Tools 24:
• Power Macintosh 9500/9600
• Power Macintosh G3 (Beige)
• Power Macintosh G3 (Blue & White)
• Power Macintosh G4
For the latest compatibility information on ex-
pansion chassis, visit the Digidesign Web site
(www.digidesign.com/compato/).
Slot Layout for SBS 13-Slot
Expansion Chassis
Most SBS 13-Slot chassis, including the newer
models, have slots that are numbered sequen-
tially, left-to-right, from the front. These chassis
have serial number 198487 or higher.
Older SBS 13-Slot chassis have slots that are
numbered sequentially, right-to-left, from the
front. These chassis have serial numbers 198486
or lower.
To verify the slot numbering for your chassis, re-
fer to the SBS guide.

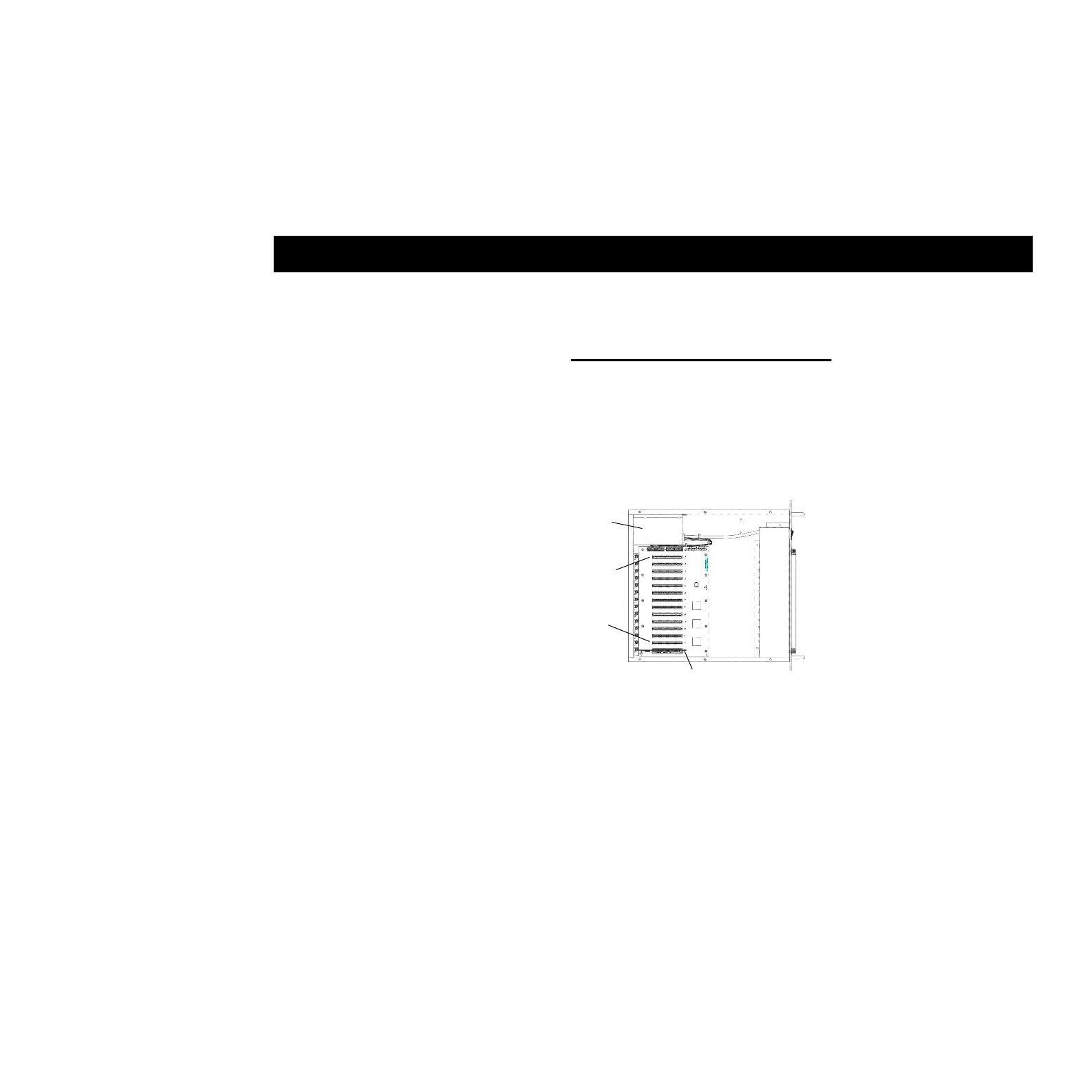

Slot numbering for newer SBS 13-Slot chassis
Slot 13
Slot 1
Controller Card
Front
Power
Supply
