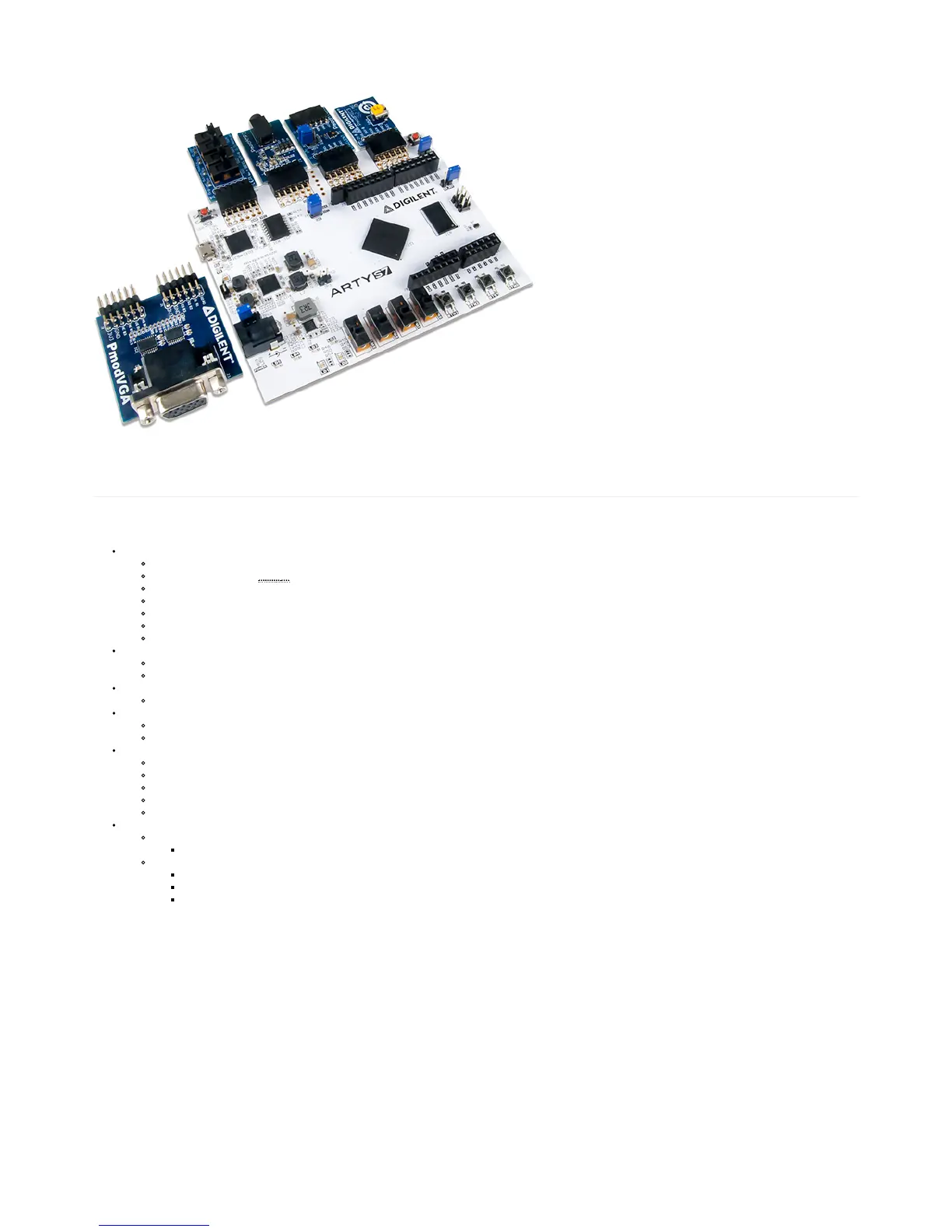

Xilinx Spartan-7 50 FPGA (xc7s50csga324-1)
8,150 slices (each slice contains four 6-input LUTs and 8 flip-flops)
2,700 Kbits of fast block RAM ()
Five clock management tiles, each with a phase-locked loop (PLL)
120 DSP slices
Internal clock speeds exceeding 450MHz
On-chip analog-to-digital converter (XADC)
Programmable over JTAG and Quad-SPI Flash
Memory
256MB DDR3L with a 16-bit bus @ 650MHz
16MB Quad-SPI Flash
Power
Powered from USB or any 7V-15V external power source
USB
USB-JTAG Programming circuitry
USB-UART Bridge
Switches, Push-buttons, and LEDs
4 Switches
4 Buttons
1 Reset Button
4 LEDs
2 RGB LEDs
Expansion Connectors
4 Pmod ports
32 total FPGA I/O (16 shared with shield connector)
Arduino/chipKIT Shield connector
45 total FPGA I/O (16 shared with Pmod connectors)
6 Single-ended 0-3.3V Analog inputs to XADC
3 Differential 0-1.0V Analog input pairs to XADC
Features
