To meet safety and electromagnetic interference (EMI) requirements and to ensure proper operation,
all the Switches which offers 6Kv surge protections are must be adequately grounded before power is
connected.

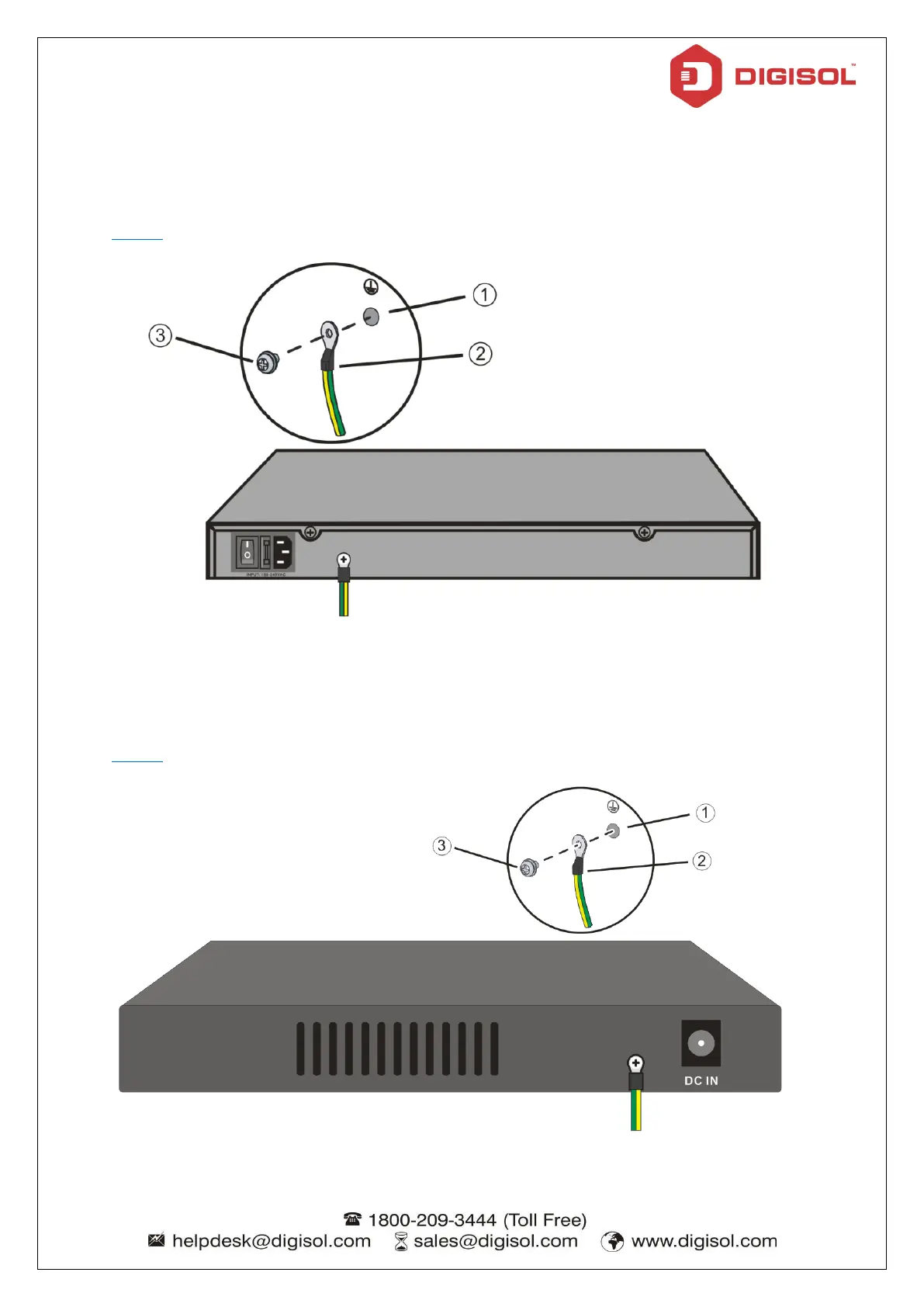

Figure 2 illustrates how a grounding cable connects to the Switch DG-GS1528HP/C
You must ground the Switch DG-GS1528HP/C by connecting a grounding cable to earth ground and then
attaching it to the chassis grounding points using one M3 screw.
Figure 3 illustrates how a grounding cable connects to the Switch DG-GS1510PL
You must ground the switch DG-GS1510PL by connecting a grounding cable to earth ground and then attaching
it to the chassis grounding points using one M3 screw.
