DIGISYNTHETIC DS24 - FRONT PANEL LAYOUT; Input and Processing Controls

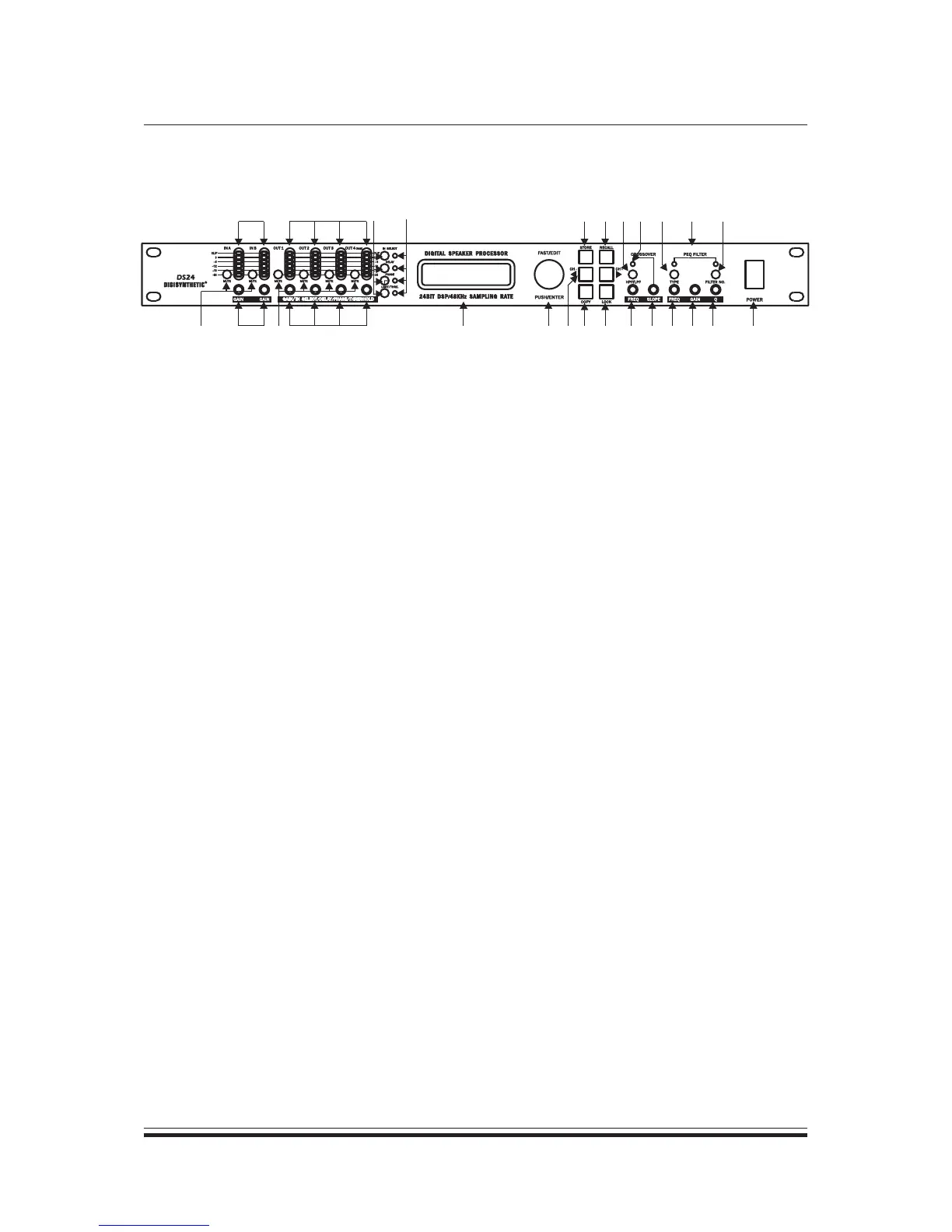

FRONT PANEL
FRONT PANEL
1. INPUT METER.
2. INPUT MUTE.
3. INPUT GAIN.
4. OUTPUT METER.
5. OUPT MUTE.
6. GAIN/IN SELECT/DELAY/PHASE/THRESHOLD.
7. SHIFT BUTTON FOR IN SELECT/DELAY/PHASE/LIMIT.
8. INDICATOR LIGHT FOR IN SELECT/DELAY/PHASE/LIMIT.
9. LCD DISPLAY.
10.FAST EDIT / PUSH ENTER.
11.STORE BUTTON.
12.RECALL BUTTON.
13.CHANNEL SELECT BUTTON.
14.COPY BUTTON.
15.LOCK/UNLOCK BUTTON.
16.SHIFT BUTTON FOR HPF/LPF.
17.HPF/LPF FREQUENCY ADJUST.
18.HPF/LPF SLOPE ADJUST.
19.INDICATOR LIGHT FOR HPF/LPF FREQUENCY ADJUST.
20.EQ FREQUENCY ADJUST.
21.EQ GAIN ADJUST.
22.EQ Q ADJUST.
23.EQ TYPE SHIFT.
24.EQ SELECT.
25.EQ OPERATION INDICATOR LIGHT.
26.POWER ON/OFF.
