3.6 Package Description
100 pin TQFP (Thin Quad Flat Pack)
All Dimensions are in millimeters

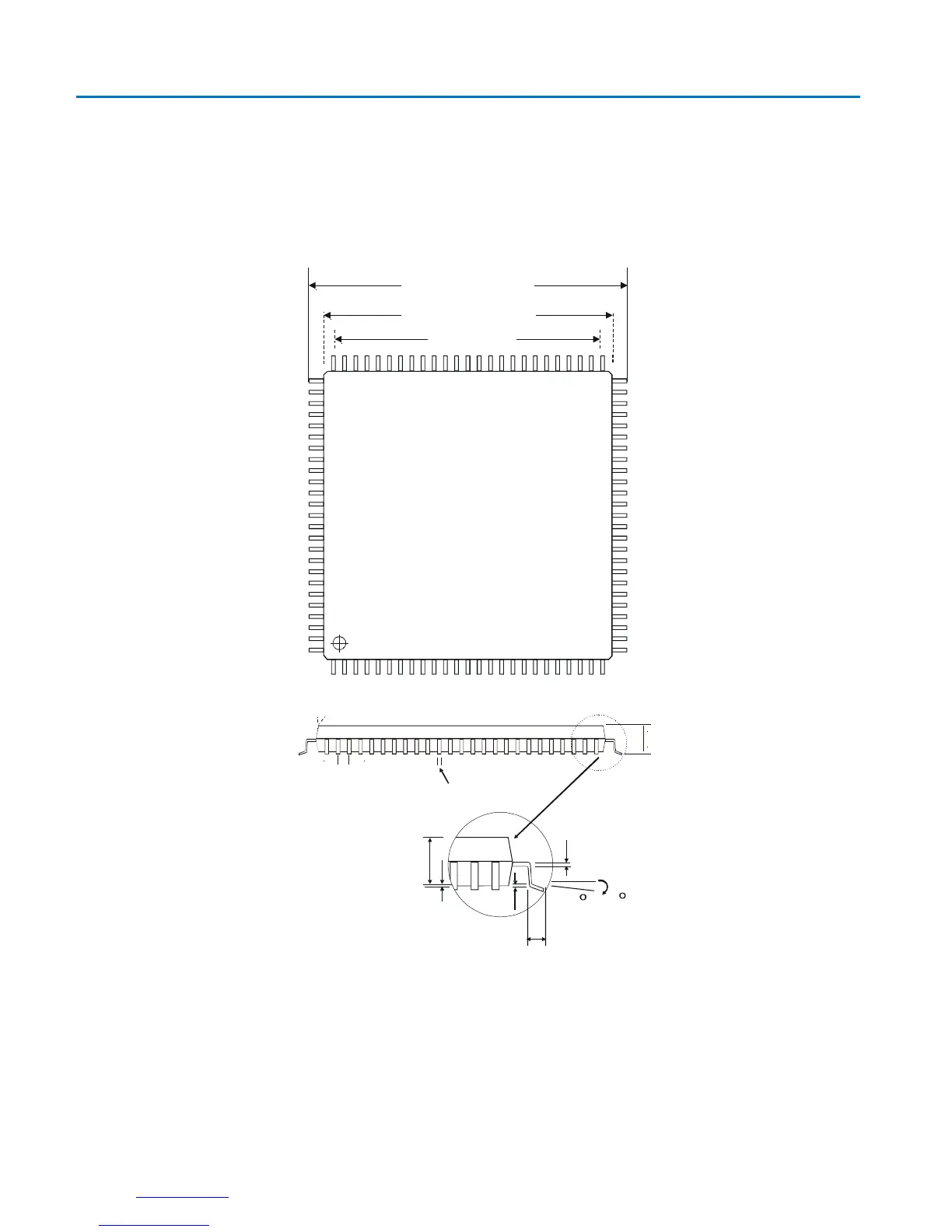

Figure 3-E Package Dimensions
0.45 / 0.75
76
100
75
51
26
50
1
25
14.20 / 13.80 SQ
16.20 / 15.80 SQ
12.00 TYP
Not Drawn to Scale
12
o
All Around
0.5 mm
0.17 / 0.27
1.40/1.60 mm
Detail
1.35 /1.45
1.60 MAX
0.25
0.05
0.13NOM
0 - 7 MAX
Gage Plane
Figure 3-F AMBE-2000 Chip Markings
