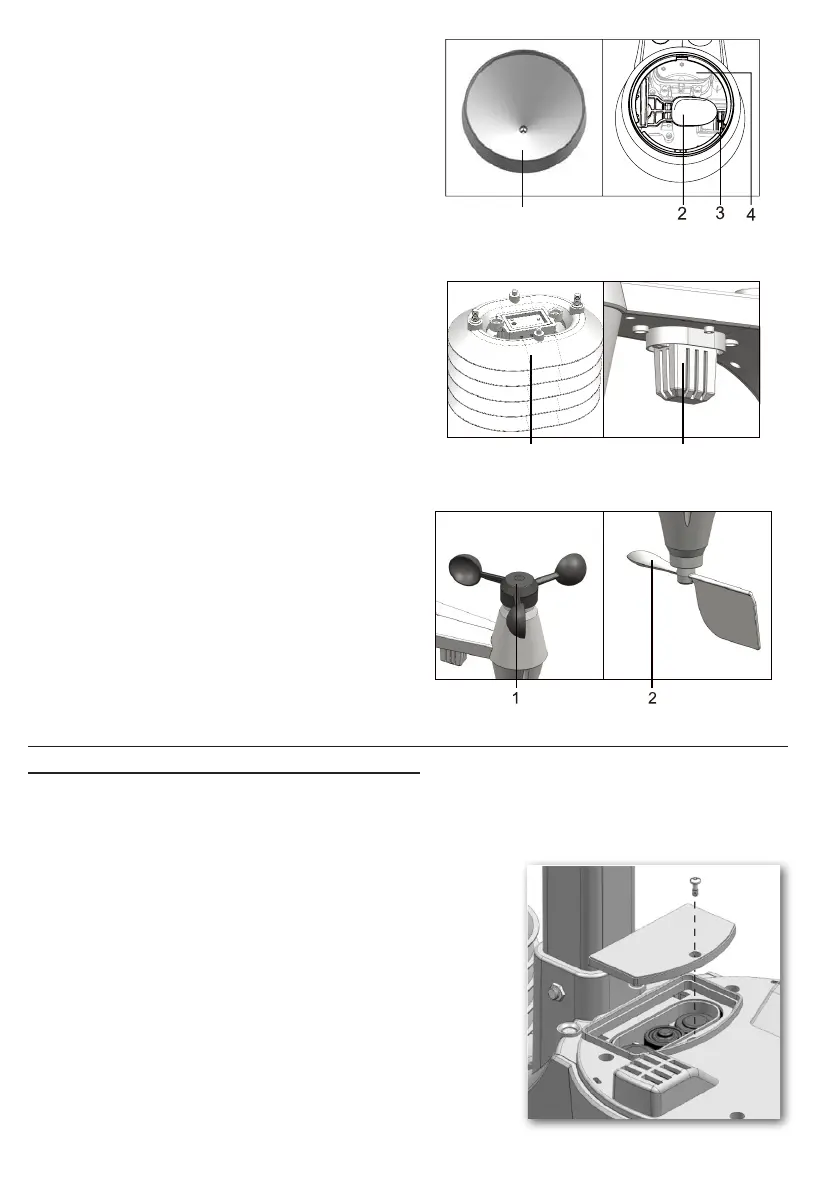

RAIN GAUGE
1. Rain collector
2. Tipping bucket
3. Drain holes
4. Rain sensor
TEMPERATURE AND HUMIDITY SENSOR
1. Radiation shield Sensor casing
2. Temperature and humidity sensor (inside
the radiation shield)
1
2
WIND SENSOR
1. Wind cups (anemometer)
2. Wind vane
INSTALLATION AND SETUP
INSTALL WIRELESS 5-IN-1 WEATHER SENSOR
Your wireless 5-IN-1 sensor measures wind-speed, wind-direction, rainfall, temperature and
humidity for you. It’s assembled and calibrated for your easy installation.
INSTALL BATTERIES
Unscrew the battery door at bottom of unit and insert the
batteries according to the +/- polarity indicated.
Screw the battery door compartment on tightly.
NOTE:
- Ensure the water tight O-ring is properly aligned in place
to ensure water resistant.
- The red LED will begin ashing every 12 seconds.
1
To Next Page
