LED Lamp
Power: The Power LED lights up when the switch is connected to a power source.
Link/Act LED: The Link/Act LED flashes which indicates a network link through the
corresponding port. Blinking indicates that the Switch is either sending or receiving
data to the port.
Rear Panel

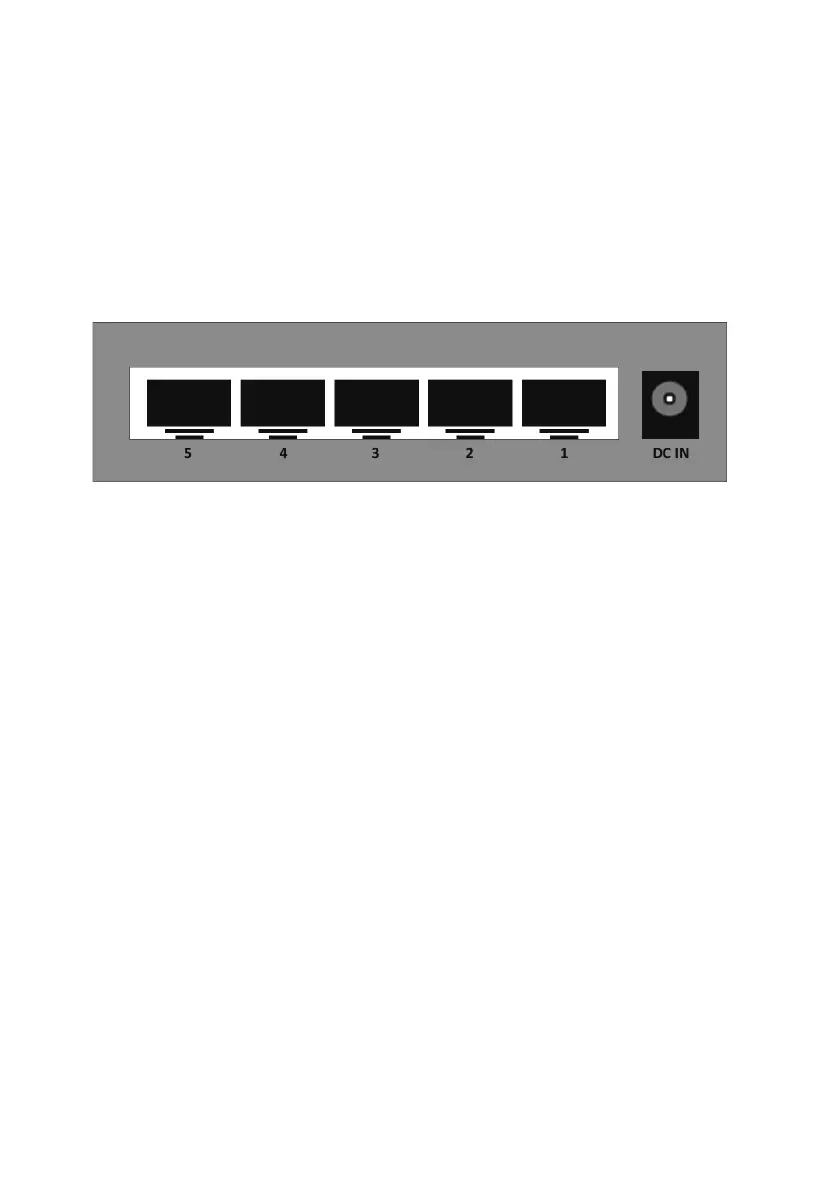

The rear panel view consists of a DC power connector and network ports.
Connect the power adapter output terminal to this port. Supports input voltages 5V
1A.
3. Hardware installation
This chapter provides unpacking and installation information for the Ethernet switch.
Open the seal
Open the shipping carton and carefully unpack its contents. Please consult the
packing list located in the User Manual to make sure all items are present and
undamaged. If any item is missing or damaged, please contact the local reseller for
replacement.
• Switch 1 pcs
• Power adapter 1 pcs
• QIG 1 pcs
Connecting power supply
Using the AC power cord to connect to the power adapter, and then plug the output
terminal of the adapter into the DC IN socket on the back of the switch. (The AC
power outlet should be grounded)
Switch installation
For safe switch installation and operation, it is recommended that you:
