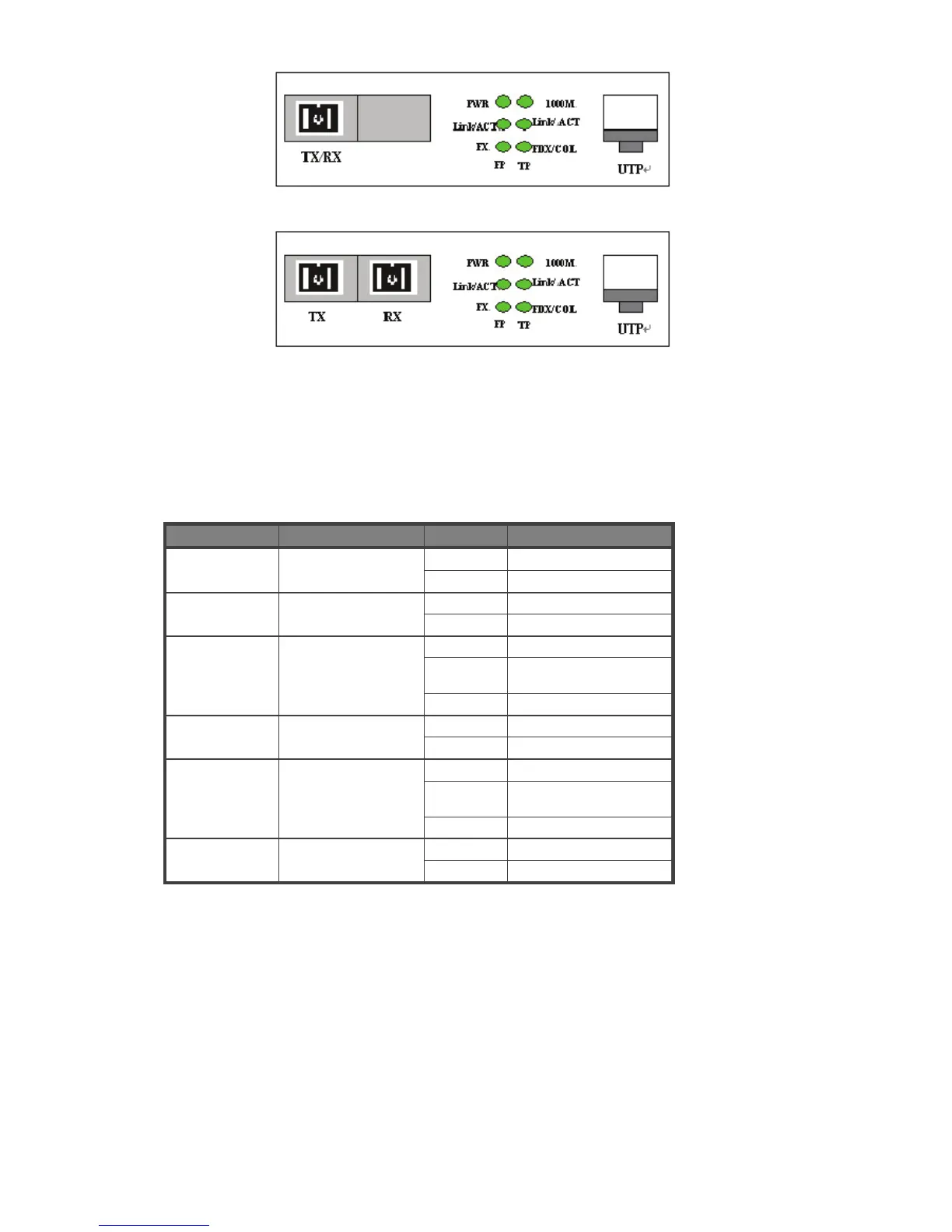

Table 1 : Front panel for single fiber media converter
Table 2 : Front panel for dual fiber media converter
Explanation for LED indicator
LED indicator serve as device monitoring and trouble display.
The following is the explanation for each LED indicator lamp.
LED Function Status Describing
PWR Power LED
ON Power is ON.
OFF Power is Fail.
FX
Fiber port signal
detect LED
ON Laser is receiving.
OFF No laser input.
FX-LINK/ACT
Fiber port link/action
status LED
ON Fiber link is ok.
Blink
Data is been received
or transmitted.
OFF Fiber link is fail.
1000M UTP port speed LED
ON 1000M speed
OFF 100M speed
TX-LINK/ACT
UTP port link/action
status LED
ON Link is ok.
Blink
Data is been received
or transmitted.
OFF Fiber link is fail.
FDX/COL UTP port duplex LED
ON Full duplex
OFF Half Duplex
