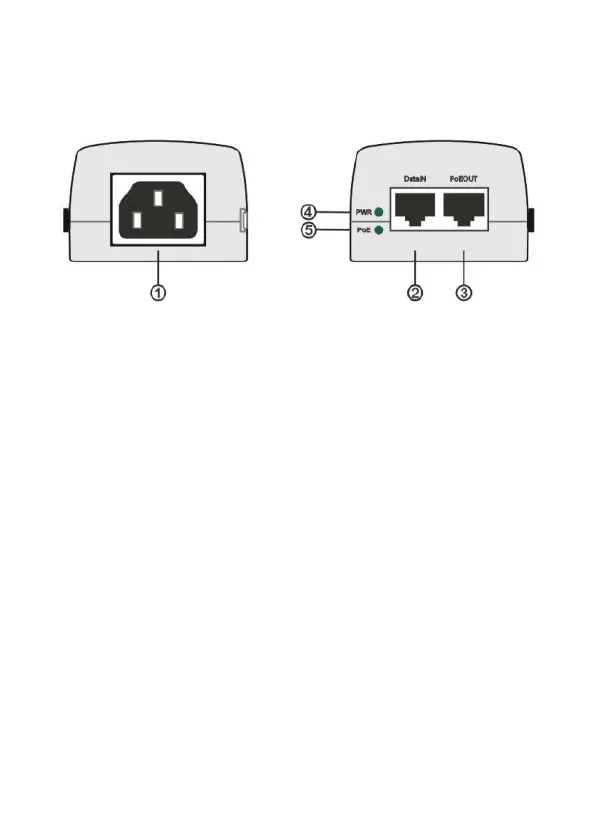

3. Hardware Description
1. AC Power Input Connector:
This connector connects the AC power source to the PoE Injector.
2. Data IN:
This port is an RJ-45 Ethernet connector where data is received and
transmitted through the PoE Injector.
3. PoE OUT:
This port is an RJ-45 Ethernet connector where data is received and
transmitted through the PoE Injector and provides PoE power along
with the Ethernet data to a PoE device.
4. PWR LED:
This LED indicate the AC power is being provided to the unit or not.
5. PoE LED:
This LED indicate the unit is providing power to the PoE OUT port or
not.
