9

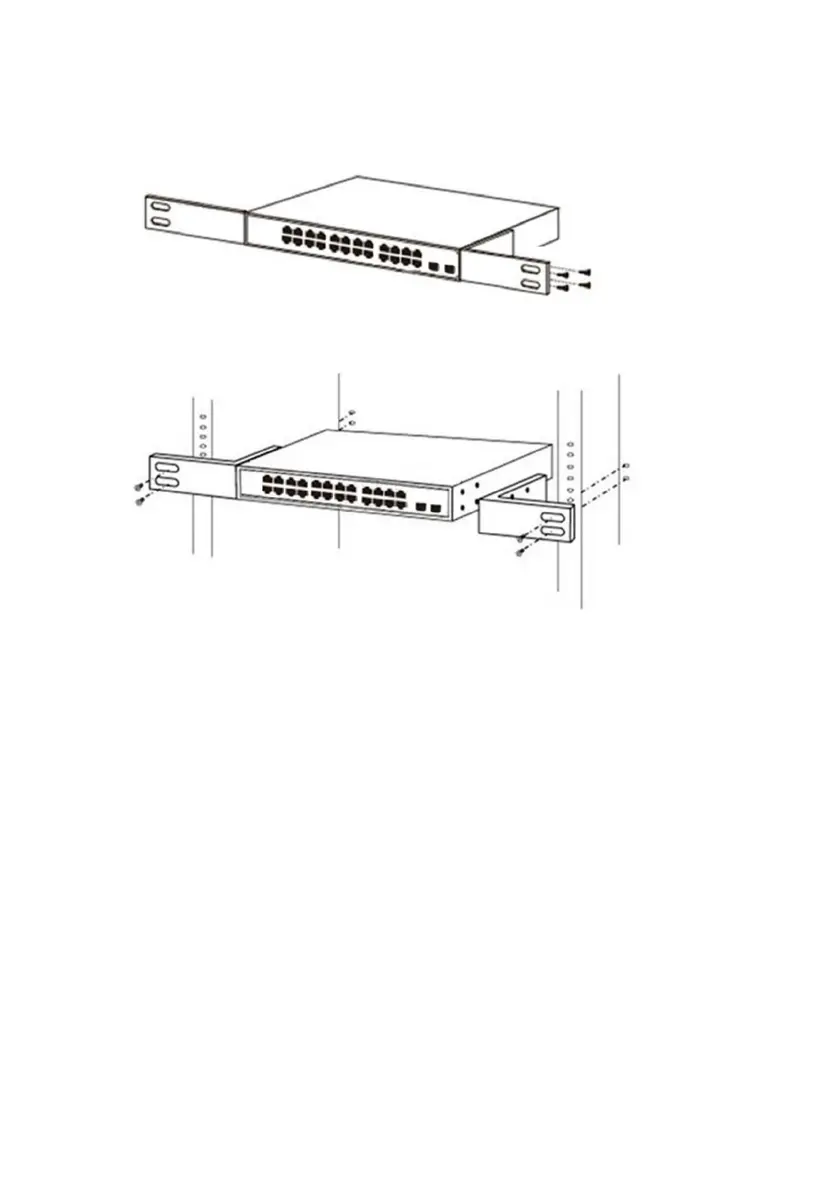

1. Attach the mounting brackets on the Switch's side panels (one on
each side) and secure them with the screws provided.
2. Use the screws provided with the equipment rack to mount the
Switch on the rack and tighten it.
Power on the Switch:
The Switch is powered on by the AC 100-240V 50/60Hz internal high-
performance power supply. Please follow the next tips to connect:
AC Electrical Outlet:
It is recommended to use single-phase three-wire receptacle with neutral
outlet or multifunctional computer professional receptacle. Please make
sure to connect the metal ground connector to the grounding source on
the outlet.
AC Power Cord Connection:
Connect the AC power connector in the back panel of the Switch to
external receptacle with the included power cord, and check the power
indicator is ON or not. When it is ON, it indicates the power connection
is OK.
