Mode Control:
You can select the switch mode.
Normal mode (Normal): Enable Flow Control and all ports can
communicate with each other.
Flow control mode: Disable Flow Control and all ports can
communicate with each other.
VLAN mode: 1 to 24 cannot communicate with each other, but can
communicate with the uplink port 25F~26F.
10/100/1000Mbps RJ-45 ports (1~24):
Designed to connect to the device with a bandwidth of 10Mbps,
100Mbps and 1000Mbps. Each has a corresponding Link/Act/Speed
and PoE indicator.
SFP ports (25F~26F):
Two SFP transceiver module ports, each port corresponds to one SFP
indicator lights.
5.2 Real Panel

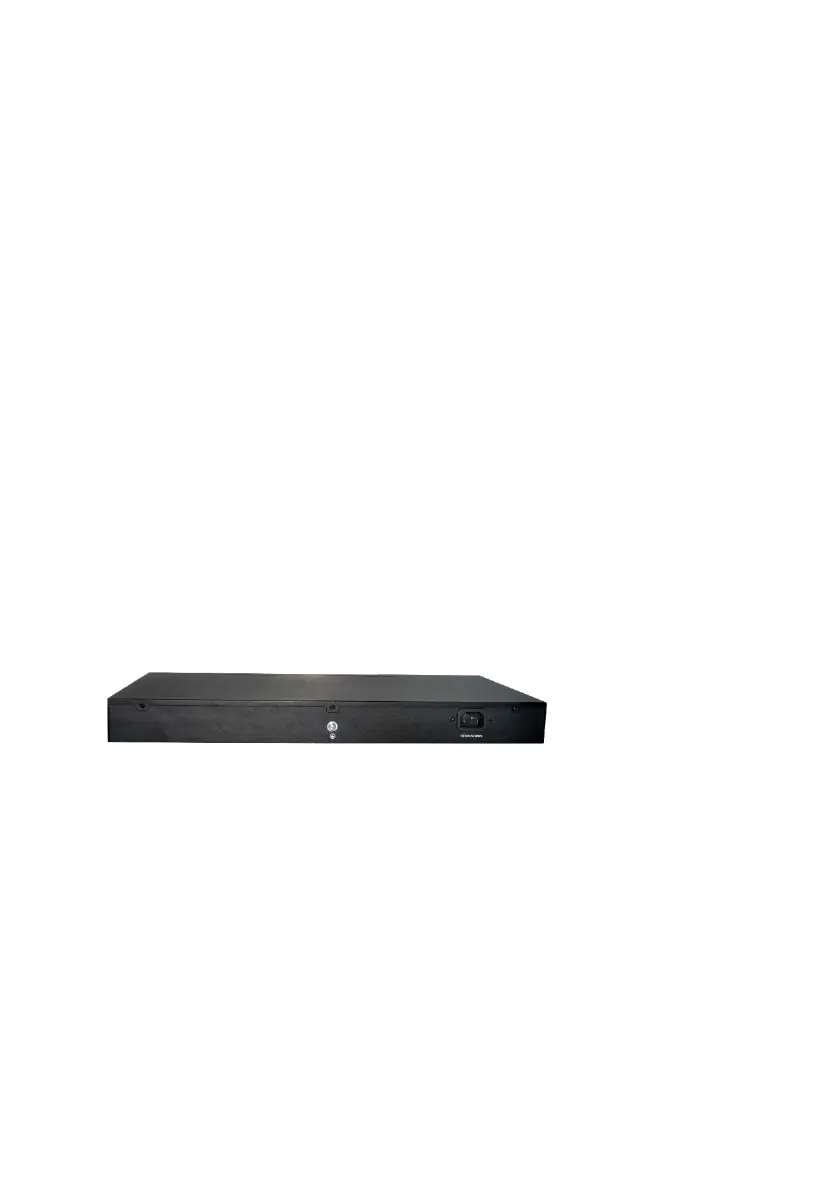

The rear panel of the Switch shown as below.
AC Power Connector:
Power is supplied through an internal power supply. It supports AC
100~240V, 50/60Hz.
Grounding Terminal:
Located on the left side of the power supply connector, use wire
grounding to lightning protection.
