10
Note
• Hot keys are not case-sensitive;
• Buzzer sounds when switching between PC1 and PC2.
1
“++” means to press 2 times in rapid succession. For example: “Scroll Lock ++ Scroll Lock + 1” means to
press the Scroll Lcok button twice in rapid succession and then press number “1” button. The detection
between each hotkey code times out for 5 seconds. For example, if the Scroll Lock button is pressed for
the first time, and then the Scroll Lock button is pressed after more than 5 seconds, the hotkey
combination is invalid;
2
“N” here indicates the number of the PC. For example, to switch to PC2, the hotkey combination is
“Scroll Lock ++ Scroll Lock + 2”;
3
Turn on this function, then DisplayPort, MIC and the speaker will enter the automatic switching mode
without USB. Press (except the space bar) any key to exit to the port before the automatic switching,
press the space bar to stay at the currently switched port. When switching automatically, the “Select”
LED flashes at the same time.
4
“N” here indicates the number of switching interval which can be 5(seconds) to 999 (seconds);
5
“1” means on, “0” means off;
6
This mode only has relation to the hotkey function of Number 4 and Number 6.

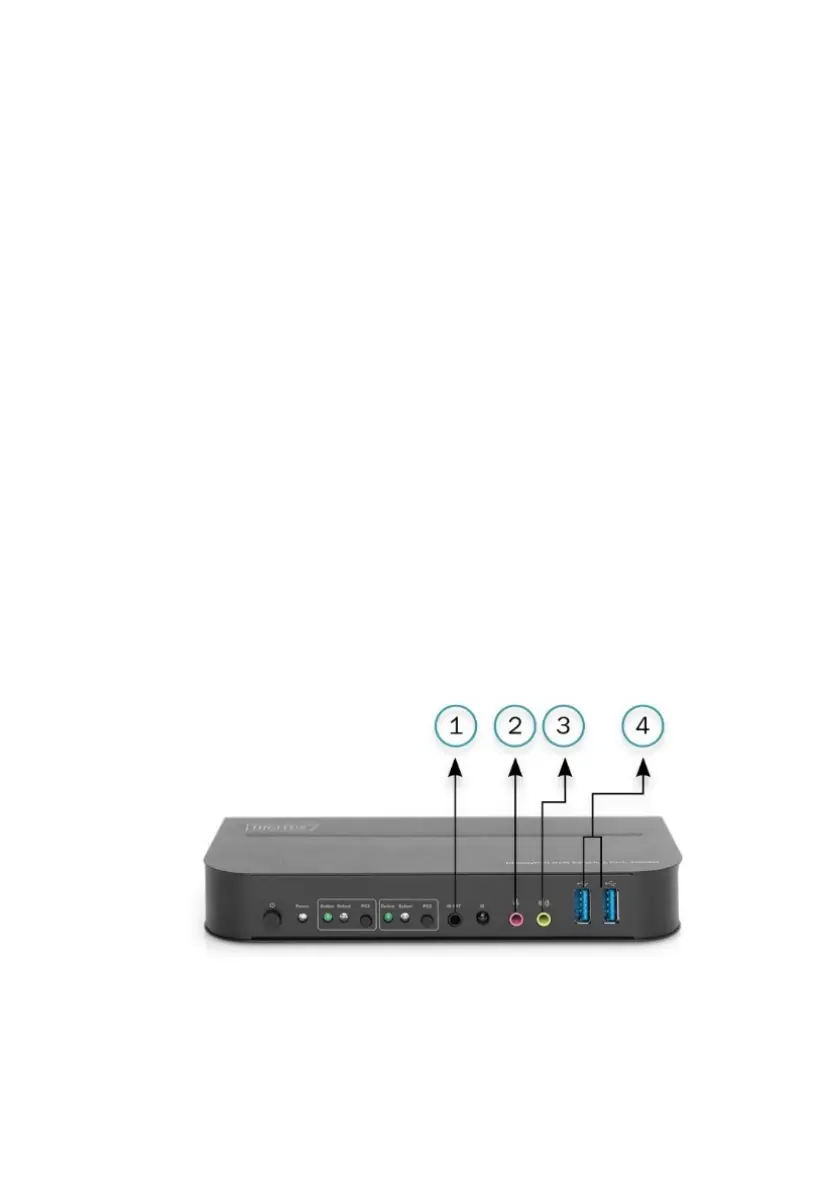

7. CONNECTION DIAGRAM
Front Panel
①.
②
③.
④
To Next Page
