Digitus DS-43309 User Manual

4

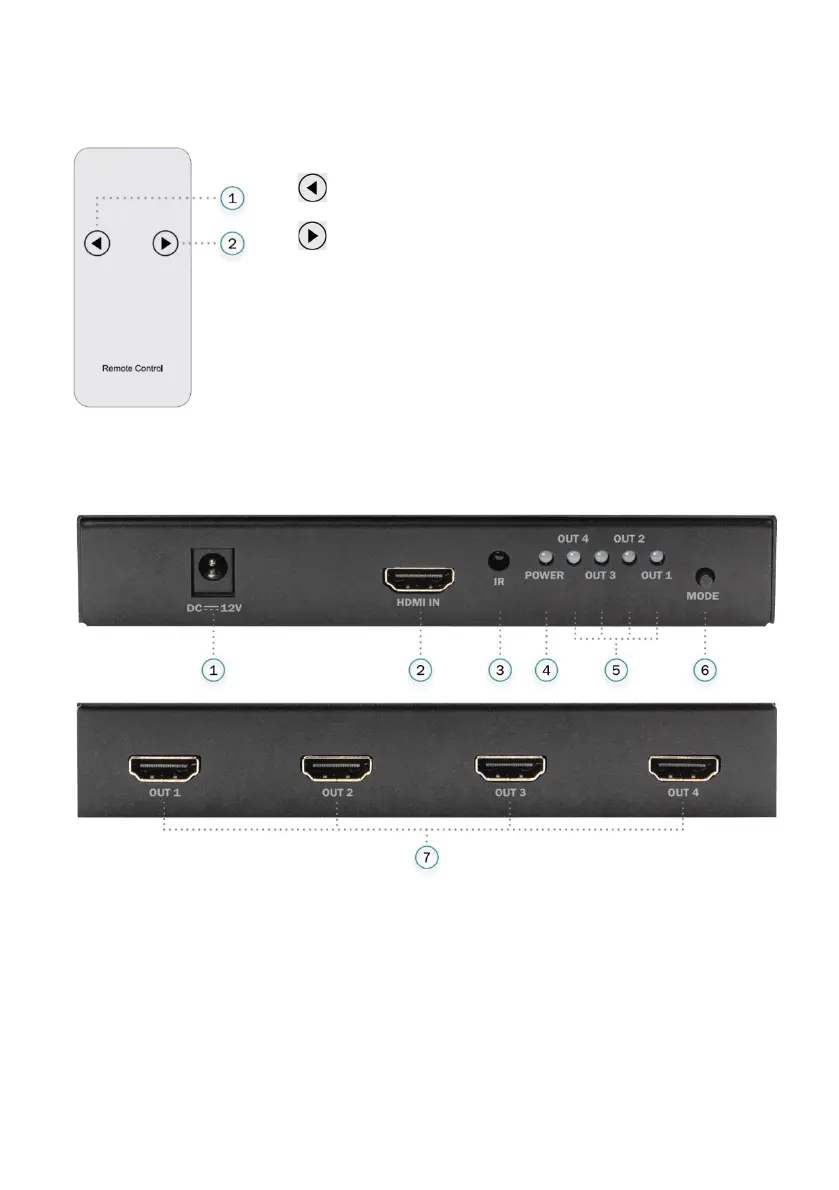

Ports And Interfaces
Remote Control
1.) : Press the button to select the previous mode
2.) : Press the button to select the next mode
Main unit
1.)
DC/12V: DC 12V Input
5.)
OUT 1-4: HDMI Output 1-4
LED Indicators
2.)
HDMI IN: HDMI Input port
3.)
IR: IR Receiver Port
6.)
MODE: Video Wall Mode Selector
4.)
POWER: Power LED
7.)
OUT 1-4: HDMI Output 1-4 Port

Digitus DS-43309 Specifications

General

Brand	Digitus
Model	DS-43309
Category	Controller
Language	English
