INSTALLATION MANUAL---Information for the installer
CABLE WIRES SPECIFICATION
Capacity (Btu/h)
9K
H07RN-F
H07RN-F
H07RN-F
H07RN-F
12K
Power cord(outdoor )
Typ e Typ e
Normal cross
- sectional area
Normal cross
- sectional area
Signal connecting cord(for heat pump)
2
0.75mm X4
2
0.75mm X4
2
2.5mm X3
2
2.5mm X3
H07RN-F
H07RN-F
18K
2
0.75mm X4
2
2.5mm X3

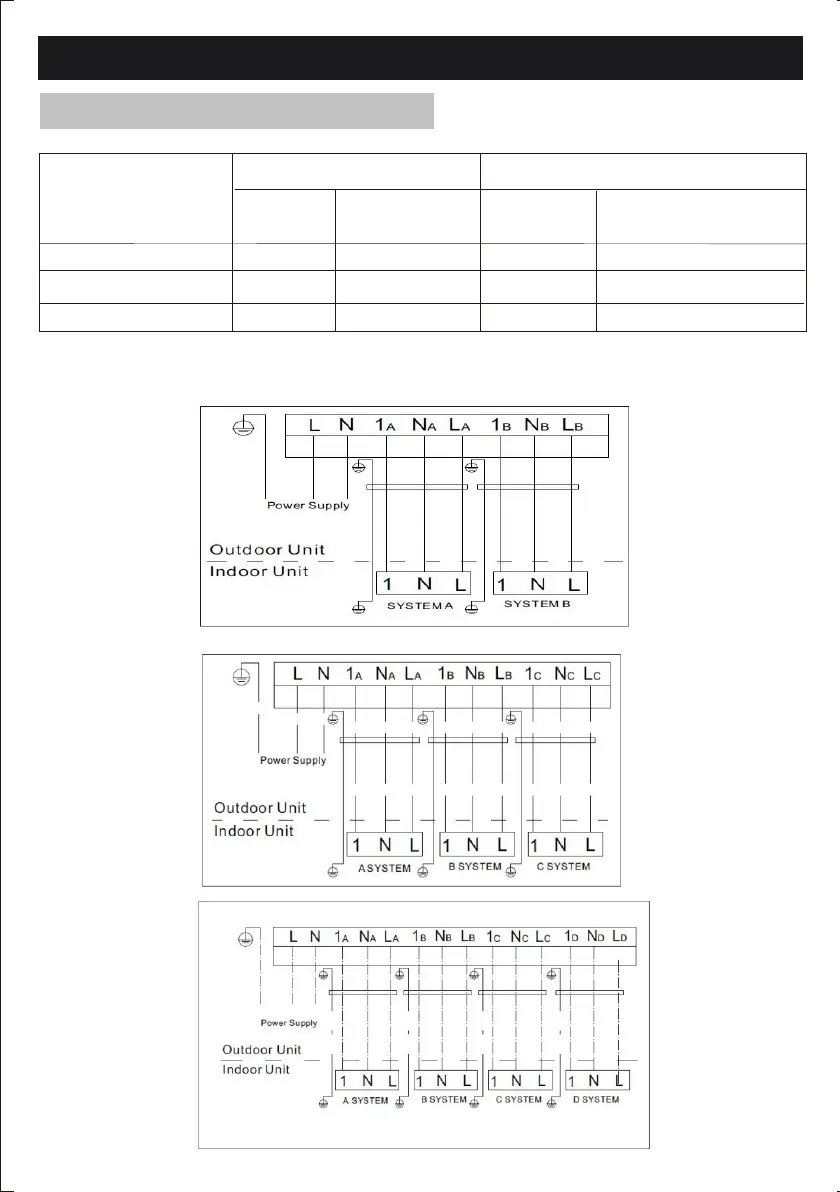

Connection diagram of communication singal wire
For one drive three
For one drive two
For one drive four
