WARNING: To reduce the risk of
re, do not store or use gasoline or
other ammable vapors or liquids in
the vicinity of the heater.
CAUTION: High temperature,
risk of re, keep electrical cords,
drapery, furnishings, and other
combustibles at least 3 feet (0.9
m) from the front of the heater.
HEATER LOCATION AND
CLEARANCES
The heater is to be installed in a xed
location. The discharge air should
wipe the walls without blowing directly
on them. (FIGURE 1)
Ensure the air discharge is parallel to
or away from walls.
!
NOTE: To prevent personal injury
always use a licensed electrician to
install new outlets or circuits.
CAUTION: When turning and/
or tilting the heater do not block the
exhaust opening.

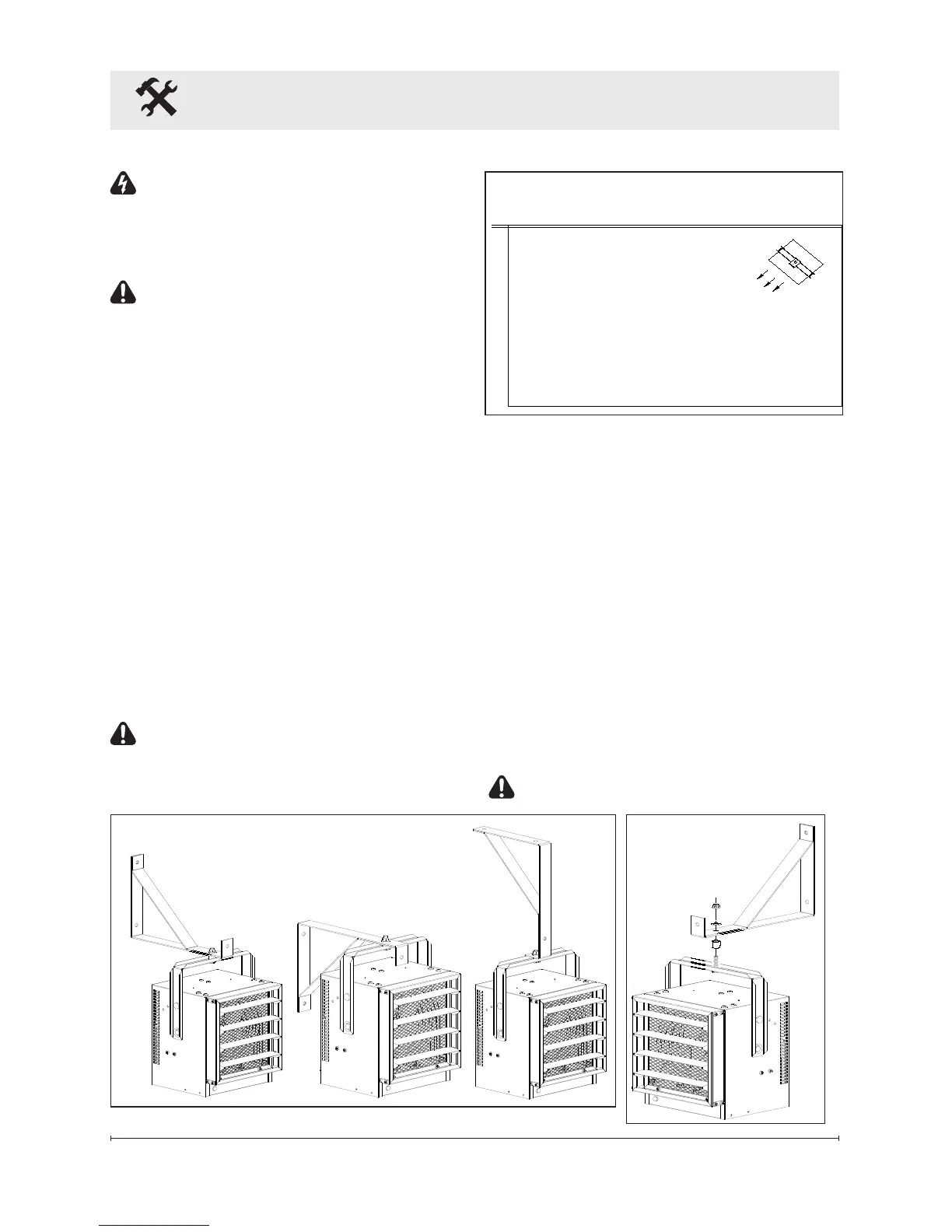

INSTALLATION WALL/CEILING
HANGER BRACKET (FIGURE 2)
!
NOTE: To prevent personal injury
always use a licensed electrician to
install new outlets or circuits.
The hanger bracket allows the unit to
be rotated approx 45° in each direc-
tion from center, and tilted in a 45°
range while suspended from the wall
or ceiling.
!
NOTE: The hardware for mount-
ing the hanger bracket to the wall or
ceiling is not included.
CAUTION: When turning and/
DISCHARGE
OUTSIDE WALL
FIGURE 1
Heater Installation
To Next Page
