Dimplex DC10RCDH - Exhaust Hose and Window Kit; Operational Modes and Drainage; Heating, Cooling, Dehumidifying Setup; Humidifying Function

8
ADJUSTABLE WINDOW SLIDER KIT

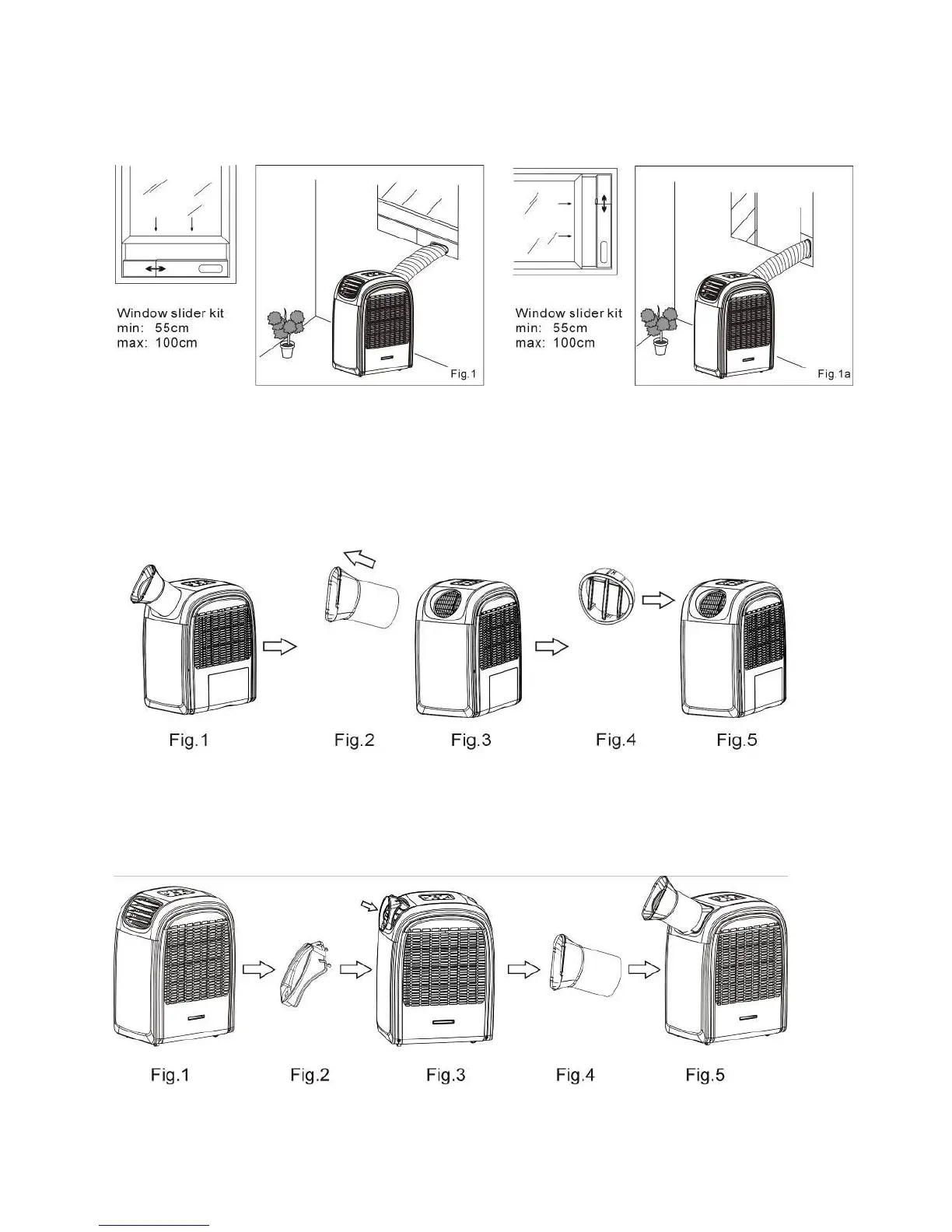

The adjustable window slider kit is installed as shown below.
HEATING / COOLING / DEHUMIDIFYING
When using the heating function, remove the exhaust hose (Fig. 2) and replace the
opening (Fig. 3) with the outlet grille as shown in Fig. 4.
On the opposite end, install the exhaust hose attachment (Fig. 2) onto the unit’s grille as
shown in Fig.3. Attach the exhaust hose (Fig.4) onto the exhaust hose attachment (Fig.
2) by rotating it in a clockwise direction.
