Dimplex DLGM29 Service Manual

5

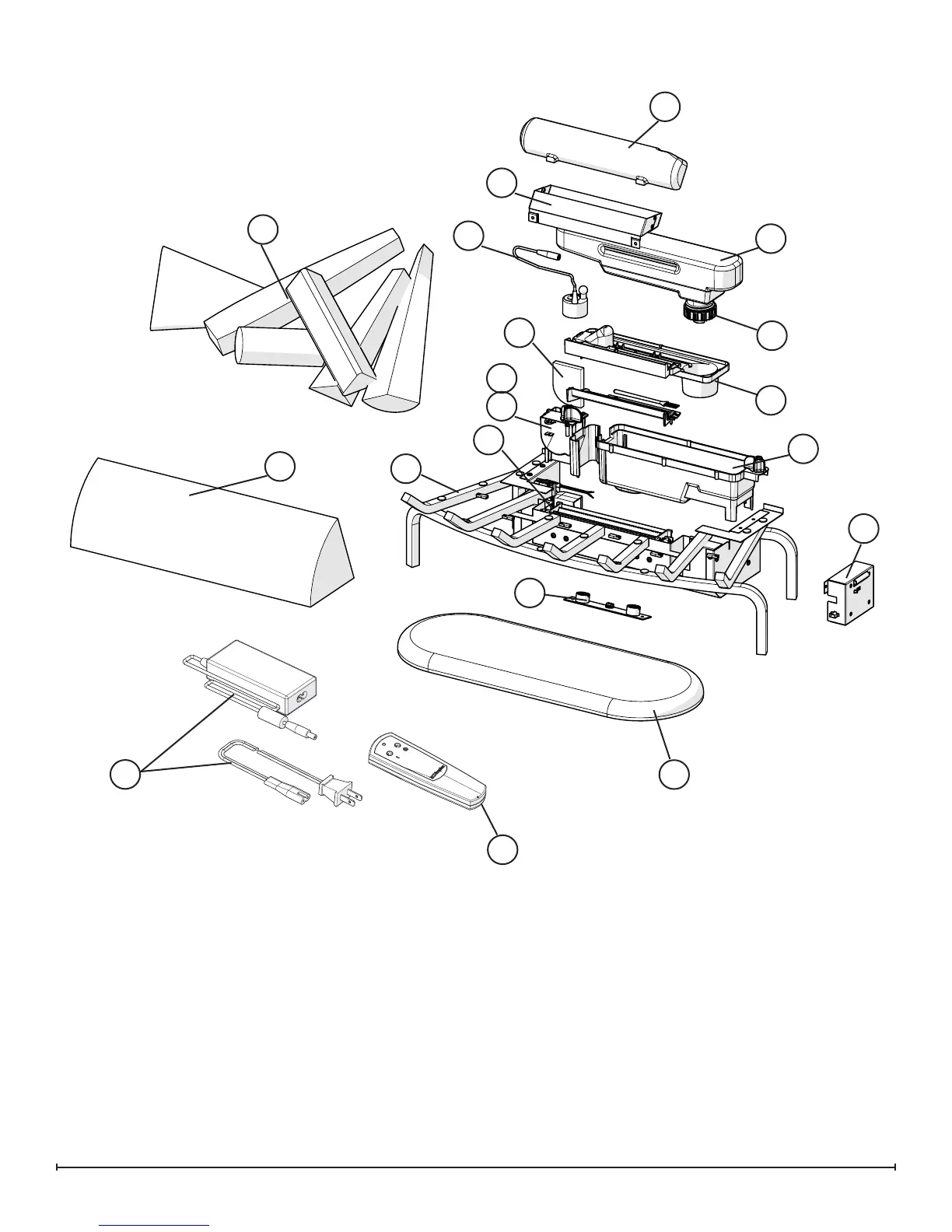

EXPLODED PARTS DIAGRAM
REPLACEMENT PARTS LIST
1. Power Adapter Set . . . . . . . . . . . . . . . . . . . . 2100220100RP
2. Remote Control ...................... 3000370500RP
3. Remote Control Receiver & Housing . . . . . . .3001110100RP
4. Log Grate with Wire Harness Set. . . . . . . . . 6908540159RP
5. Log Set Assembly. . . . . . . . . . . . . . . . . . . . . 9600510100RP
6. Ember Bed . . . . . . . . . . . . . . . . . . . . . . . . . . 0441000300RP
7. Back Log ........................... 0440740300RP
8. Metal Light Shield. . . . . . . . . . . . . . . . . . . . . 1025340159RP
9. Light Shield Log ...................... 0441260100RP
10. Heating Assembly. . . . . . . . . . . . . . . . . . . . . 9600520100RP
11. LED Light Assembly ................... 3001100200RP
12. Removable Rell Container with Cap. . . . . . 0441440100RP
13. Cap for Rell Container ................ 0441440300RP
14. Top Cover Assembly. . . . . . . . . . . . . . . . . . . 9600530100RP
15. Water Reservoir (Sump) ............... 0441380100RP
16. Fan Assembly. . . . . . . . . . . . . . . . . . . . . . . . 5300300100RP
17. Fan Housing Assembly. . . . . . . . . . . . . . . . . 9600540100RP
18. Fan Filter ........................... 8600300100RP
19. Transducer . . . . . . . . . . . . . . . . . . . . . . . . . . 3800040100RP
6
1
2
3
4
5
7
8
9
10
11
12
13
14
15
16
17
18
19

Dimplex DLGM29 Specifications

General

Brand	Dimplex
Model	DLGM29
Category	Electric Heater
Language	English
