LI 1422C - 1826C English

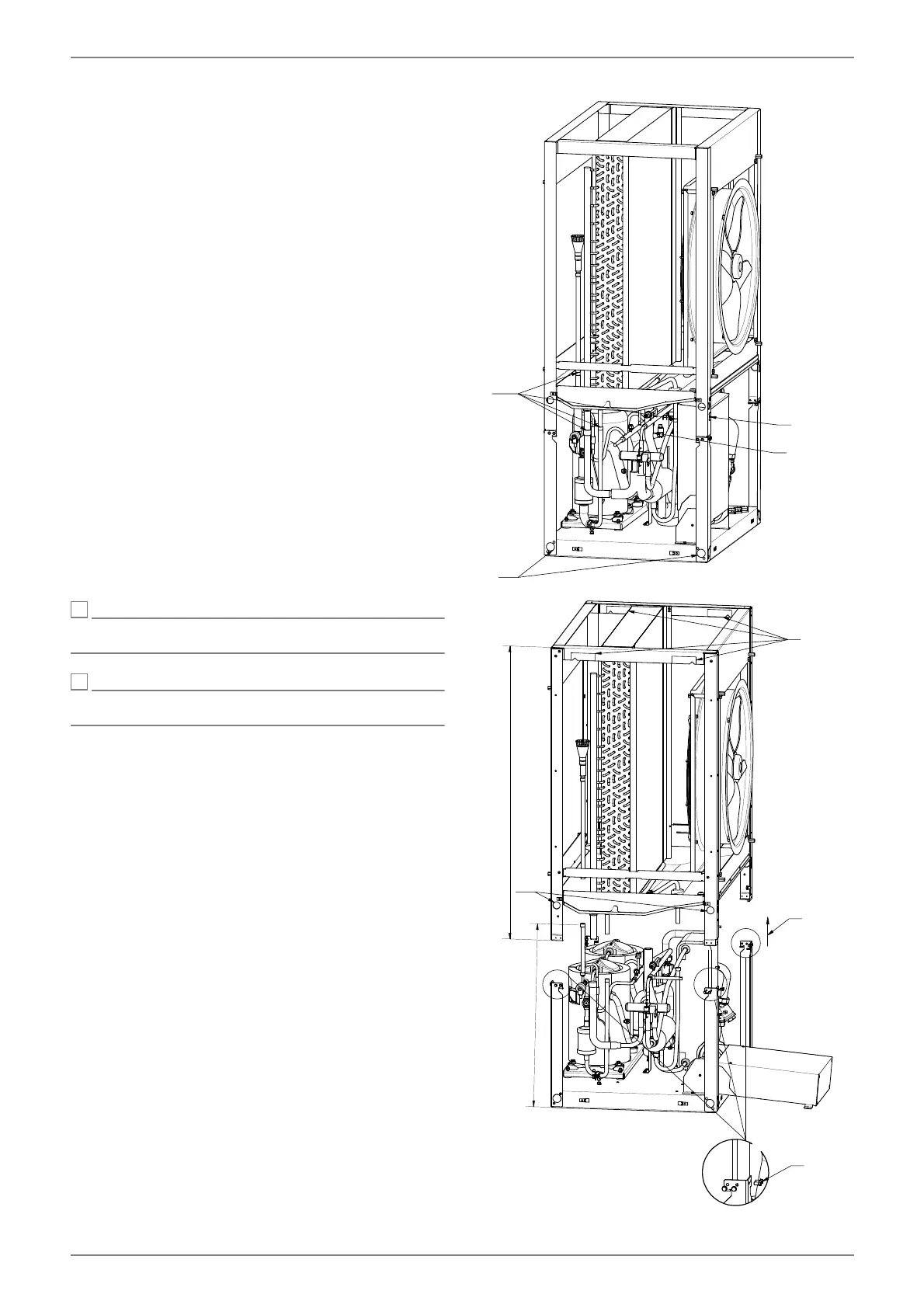

For easier transportation into existing homes/buildings, it is
possible to separate the basic device into two parts.
Once the covering panels have been removed, please proceed
as follows:
1) Drain refrigerant
2) Remove condensate hose
3) Loosen the switch box from the frame
4) Remove the pipe insulation above the soldering points
5) Separate 4x soldering points chip-free.
6) Disconnect the fan cable in the switch box
7) Unfasten 4x screws in the corners in each case
8) Lift down the top part of the heat pump
9) Areas for lifting on the frame
10) Transport heat pump to the installation location
11) Join the parts
12) Re-solder the separation points again (with inert gas flush-
ing)
13) Evacuate the refrigeration circuit
14) Add refrigerant
15) Perform leakage tightness test
16) Re-attach pipe insulation
17) Re-connect fan
18) Bores for attaching a transport aid (e.g. lifting straps etc.)
19) Remove the transport locks on the base on both sides be-
fore commissioning
NOTE
ººººº
Do not lift by the condensate tray. This cannot withstand any
forces.
NOTE
º
ºººº
The condensate hose must be removed before the upper part
is put down.
2
4+5
18
3
7
8
9
18
1
2
3
7
7
5
8
