The heater is designed for wall mounting using the wall bracket supplied. It should only be
operated when in the upright position as shown - see Fig. 1 and Fig. 2. All models are splash
proof to IP24. Before connecting the heater check that the supply voltage is the same as that
stated on the heater.
General
Wall Mounting
IMPORTANT - The wall bracket supplied with the heater must be used and the heater must be installed in
the correct orientation. The fixings should be used to secure the bracket to the particular wall on which the
heater will be installed. The heater should be positioned observing the minimum clearances stated around the
heater - see Fig. 2, Fig. 3 and Fig. 4.

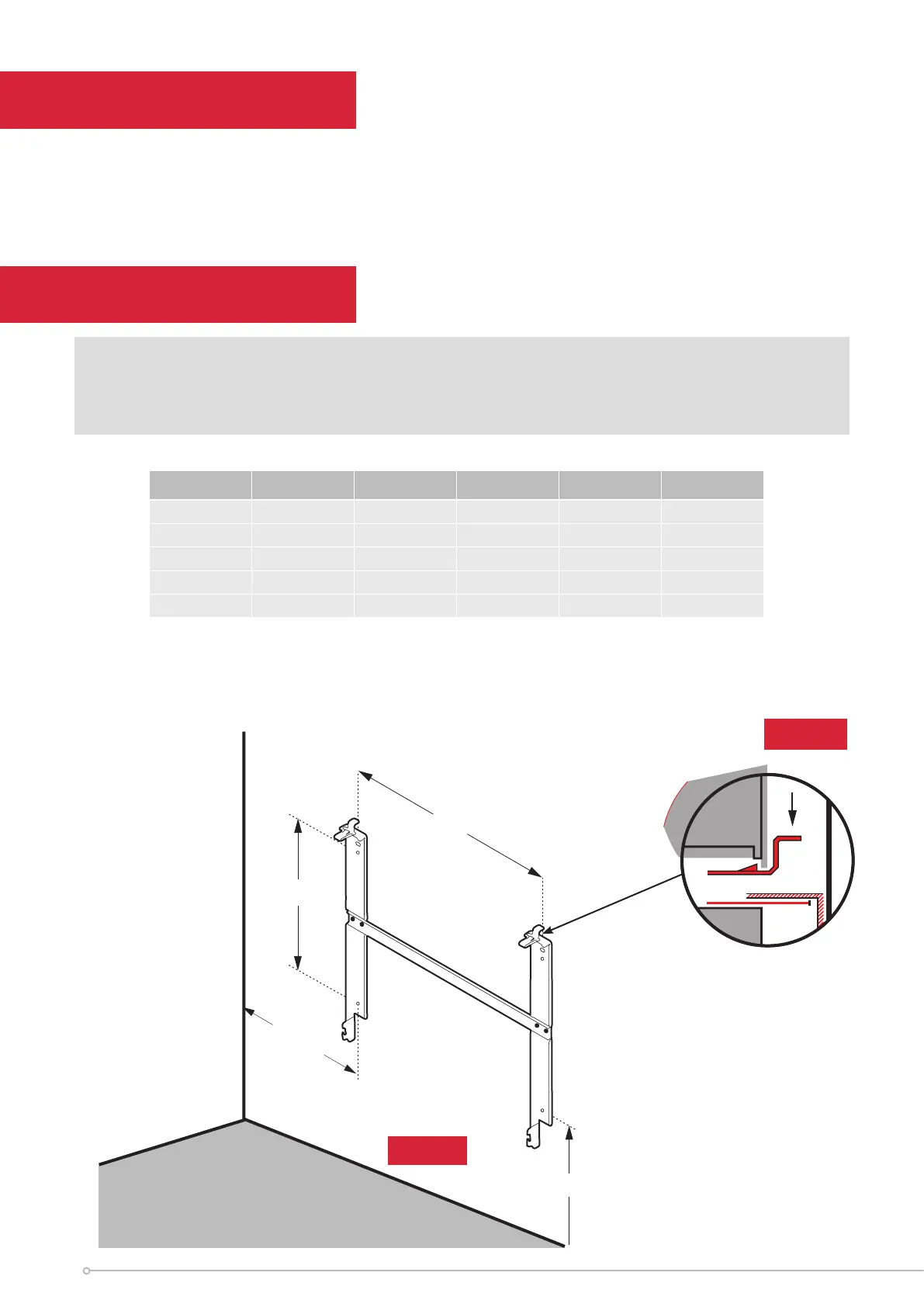

Fig. 2
MODEL A B C D E
QRAD050E 225 294 513 546 105
QRAD075E 225 294 513 546 105
QRAD100E 387 294 675 546 105
QRAD150E 468 294 756 546 105
QRAD200E 630 294 918 546 105
260 mm (Min)
‘A’
275 mm
‘B’
Minimum
mounting
clearance
Fig. 1
