- 27 -

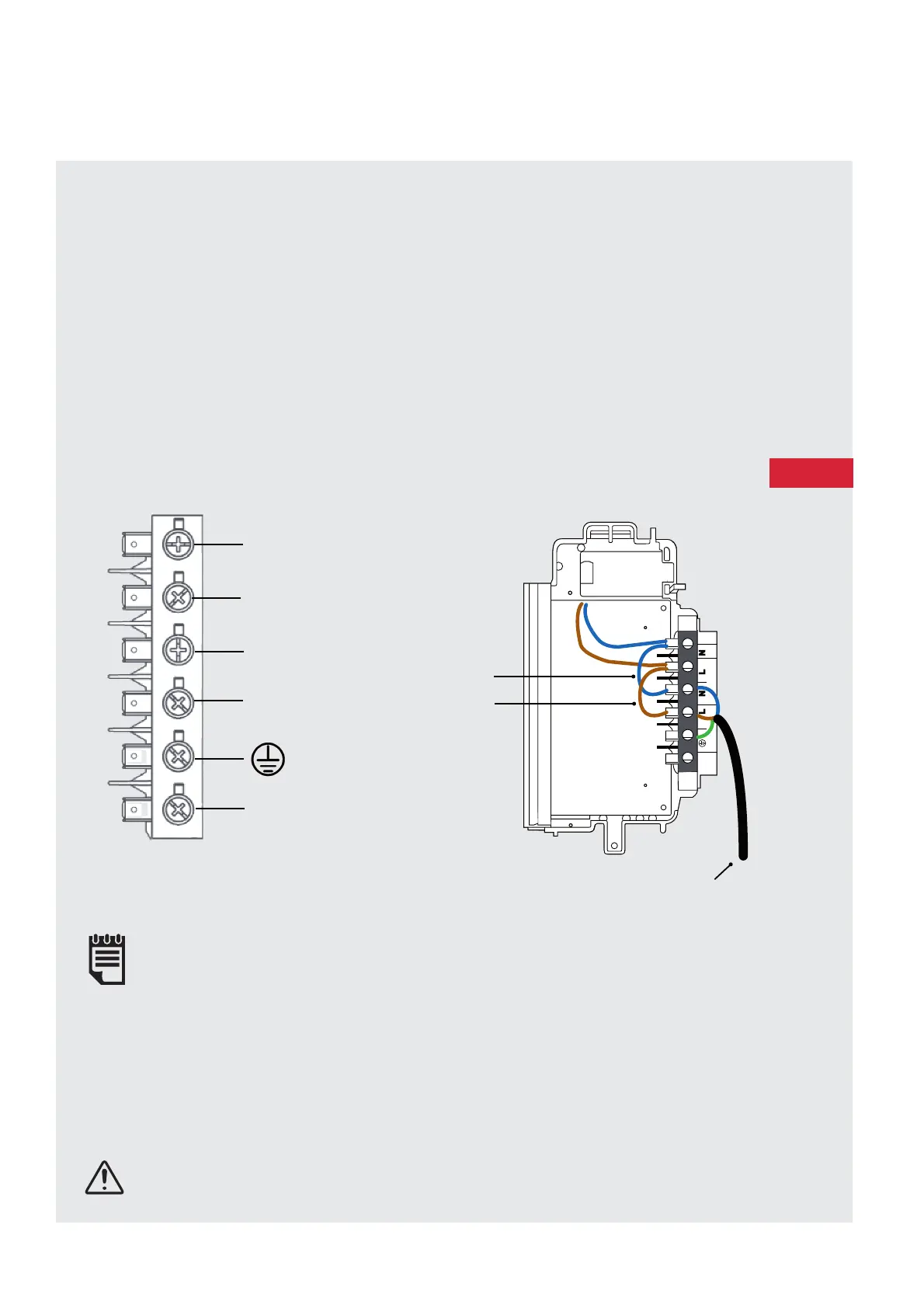

Switched Supply Terminal Block
Fig. 9b
Single Mains Supply
Available fi xed charge times must be manually programmed into the heater to tell it when to charge; no external
timers or contactors are needed. Up-to 4 digital charge times can be set.
If charge times are not programmed into the heater, the default times will be used which are set-up by default to
support dual-supply installations: 00:00 – 00:00 or 24h charge window.
A 24h charge window in a single supply installation will cause the heater to charge continuously,
including times when o -peak electricity is not available, resulting in larger bills.
NOTE:
The property energy supplier should be consulted to confi rm that the meter and tari is suitable for
single supply storage heating
Single Peak Supply requirements
O ine / Standalone Installation (not Dimplex Control connected)
IMPORTANT - This kind of installation relies on the property having a fi xed time
period, o -peak energy tari with ‘whole home switchover’ whereby all wiring in the
property utilises the o -peak rate when available.
The brown wire connected to Live
The blue wire connected to Neutral
Rewire the link wires as
shown in image
To Next Page
