- 26 -
Electrical Connections
WARNING: Before obtaining access to terminals, all supply circuits must be disconnected.

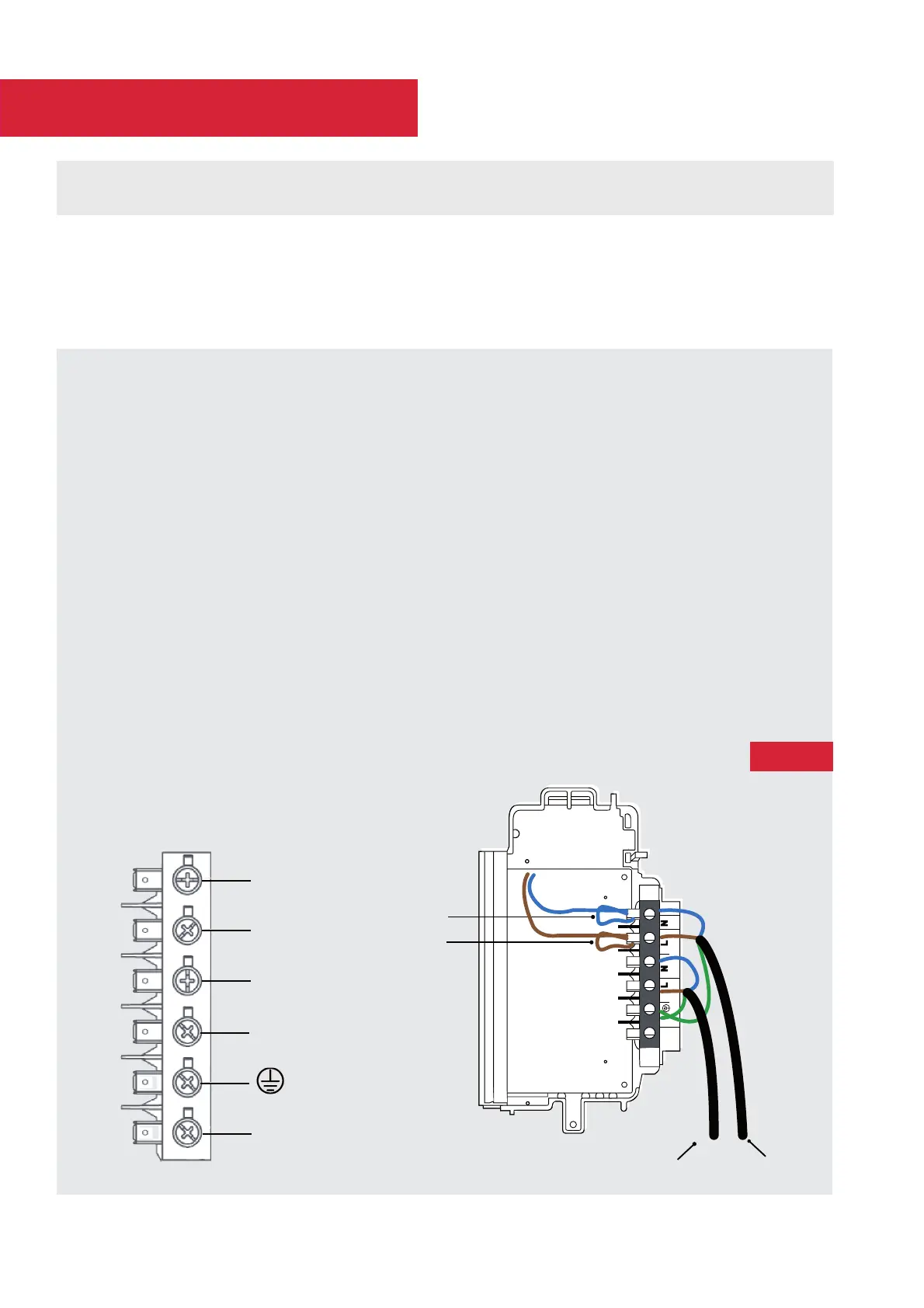

Two Mains Supplies
Switched Supply Terminal Block
Fig. 9a
9. The heater leaves the factory confi gured to operate with two mains supplies, a 24 hour peak supply and an
o peak switched supply (see Fig 9a). The heater can also be operated with a single main supply (Fig. 9b).
Dual Supply - Storage / Fan circuit (Fig.9A)
Fan Circuit = PEAK L
Storage Circuit = OFF-PEAK L
Fan Circuit = PEAK N
Storage Circuit = OFF-PEAK N
The brown wire connected to Live
The blue wire connected to Neutral
The earth wire should be connected into the earth terminal block marked E
WARNING: Terminal block Minimum torque of 2Nm and Maximum torque of 2.2Nm
















