8 www.dimplex.com
Installation
Placement
This firebox is a zero clearance design,
with the exception of the top of the unit,
where any insulation and vapor barrier
should be placed a minimum of 2"
(5.1 cm) from the firebox.
DANGER!: High temperatures may
be generated under certain abnormal
conditions. Do not partially or fully cover or
obstruct the front of the rebox.
WARNING: All electrical heaters have
hot and arcing or sparking parts inside. Do
not use it in areas where gasoline, paint, or
flammable liquids are used or stored.
WARNING: The built-in electric firebox
must NOT be in direct contact with any
building vapor barrier or insulation.

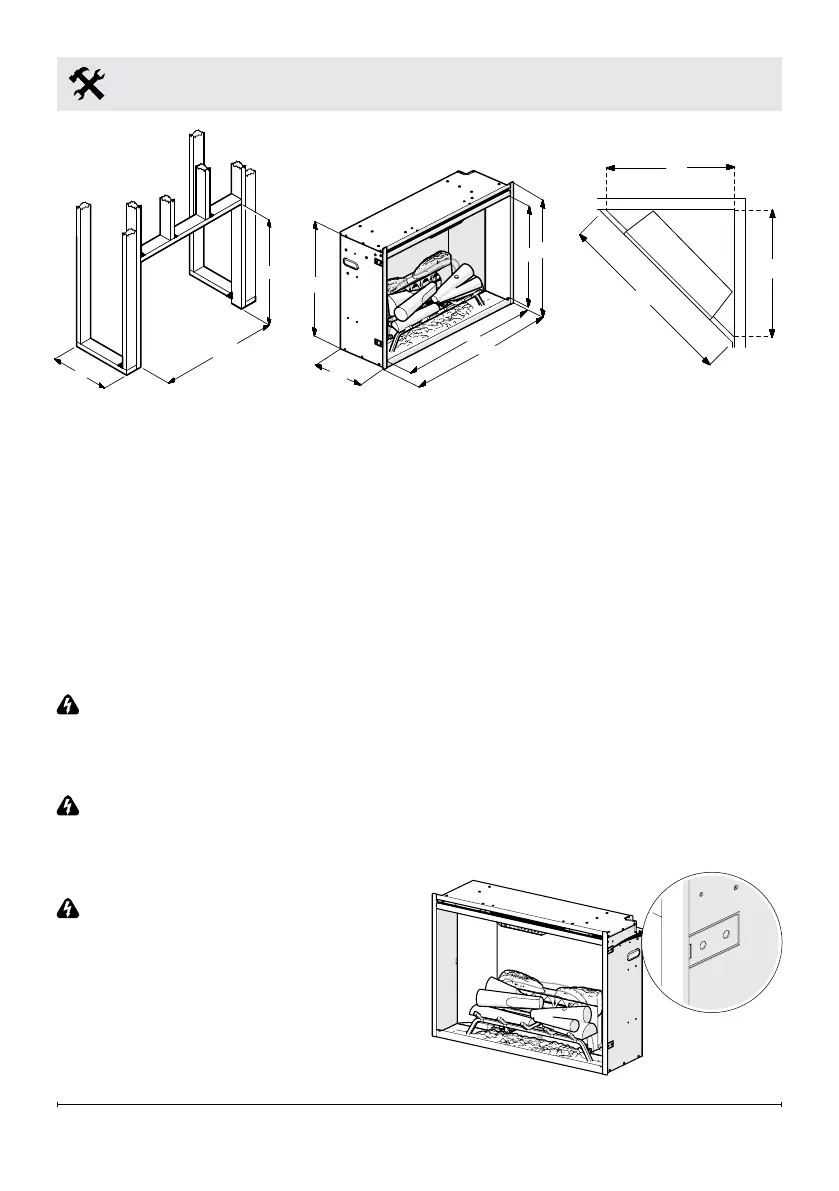

Rough-In Framing Dimensions Firebox Dimensions Rough-In Corner Dimensions
G
F
I
H
E
D
J
K
L
C
B
A
1. Place the firebox into the framed
opening. Level with shims if
necessary.
2. From the inside of the unit, gently
remove the interior brick panels
(attached magnetically) and bent
out, up to 90°, to be flush with the
surrounding studs.
3. Attach the firebox to frame using
four mounting flanges on the sides
of firebox and suitable hardware.
